Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

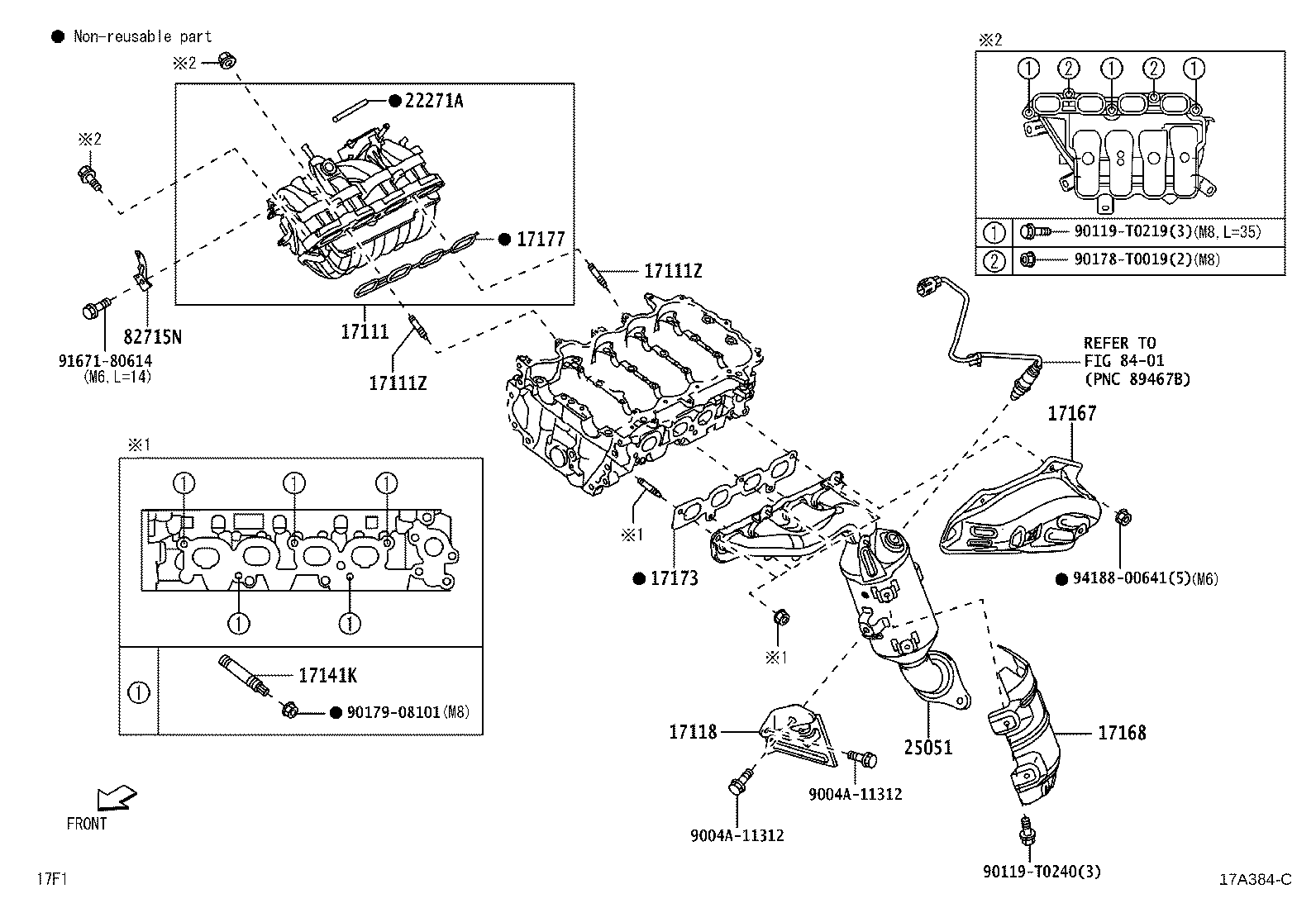

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17120-BZ100 |
Manifold, Intake
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17111Z — Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 9004A-12001 |
Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17118 — Stay, Manifold | ||||
| 17118-BZ130 |
Stay, Manifold
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17141K — Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08063 |
Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-BZ070 |
Insulator, Exhaust Manifold Heat, NO.1
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17168 — Insulator, Exhaust Manifold Heat, NO.2 | ||||
| 17168-BZ020 |
Insulator, Exhaust Manifold Heat, NO.2
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-BZ070 |
Gasket, Exhaust Manifold TO Head
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17177-BZ030 |
Gasket, Intake Manifold TO Head, NO.1
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 22271A — Gasket, Throttle Body | ||||
| 22271-0Y030 |
Gasket, Throttle Body
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 25051 — Converter Sub-assy, Exhaust Manifold | ||||
| 25051-BZ110 |
Converter Sub-assy, Exhaust Manifold
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 82715N — Bracket, Wiring Harness Clamp | ||||
| 82715-BZA90 |
Bracket, Wiring Harness Clamp
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
