Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

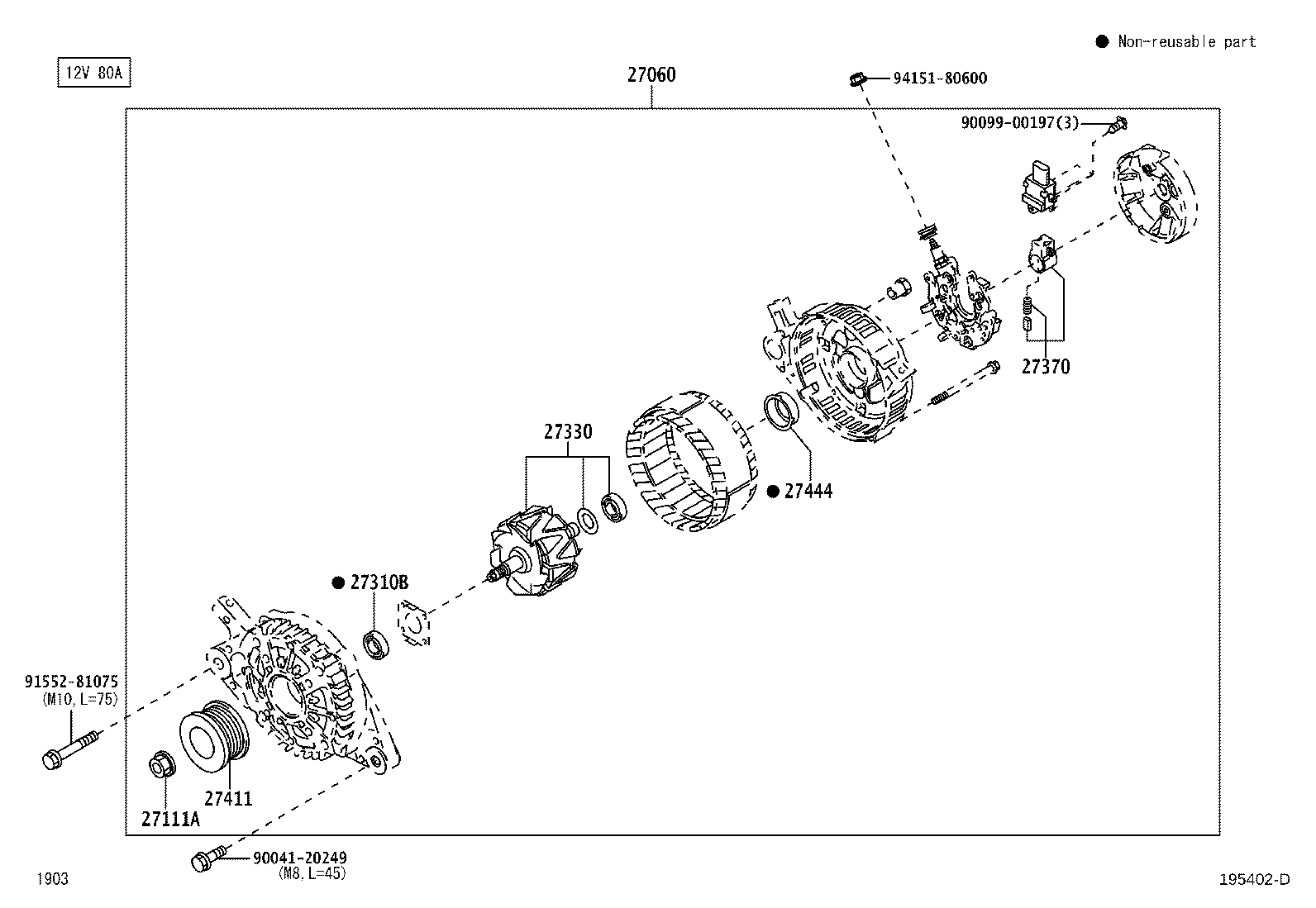

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27060 — Alternator Assy, W/Regulator | ||||
| 27060-BZ440 |
Alternator Assy, W/Regulator
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 27111A — Nut, Alternator | ||||
| 90099-05171 |
Nut, Alternator
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 9004B-37012 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-BZ060 |
Rotor Assy, Alternator
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-B1020 |
Holder Assy, Alternator Brush
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 27411 — Pulley, Alternator | ||||
| 27411-BZ100 |
Pulley, Alternator
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 27444 — Packing, Alternator Bearing Cover | ||||
| 27444-BZ010 |
Packing, Alternator Bearing Cover
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
