Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

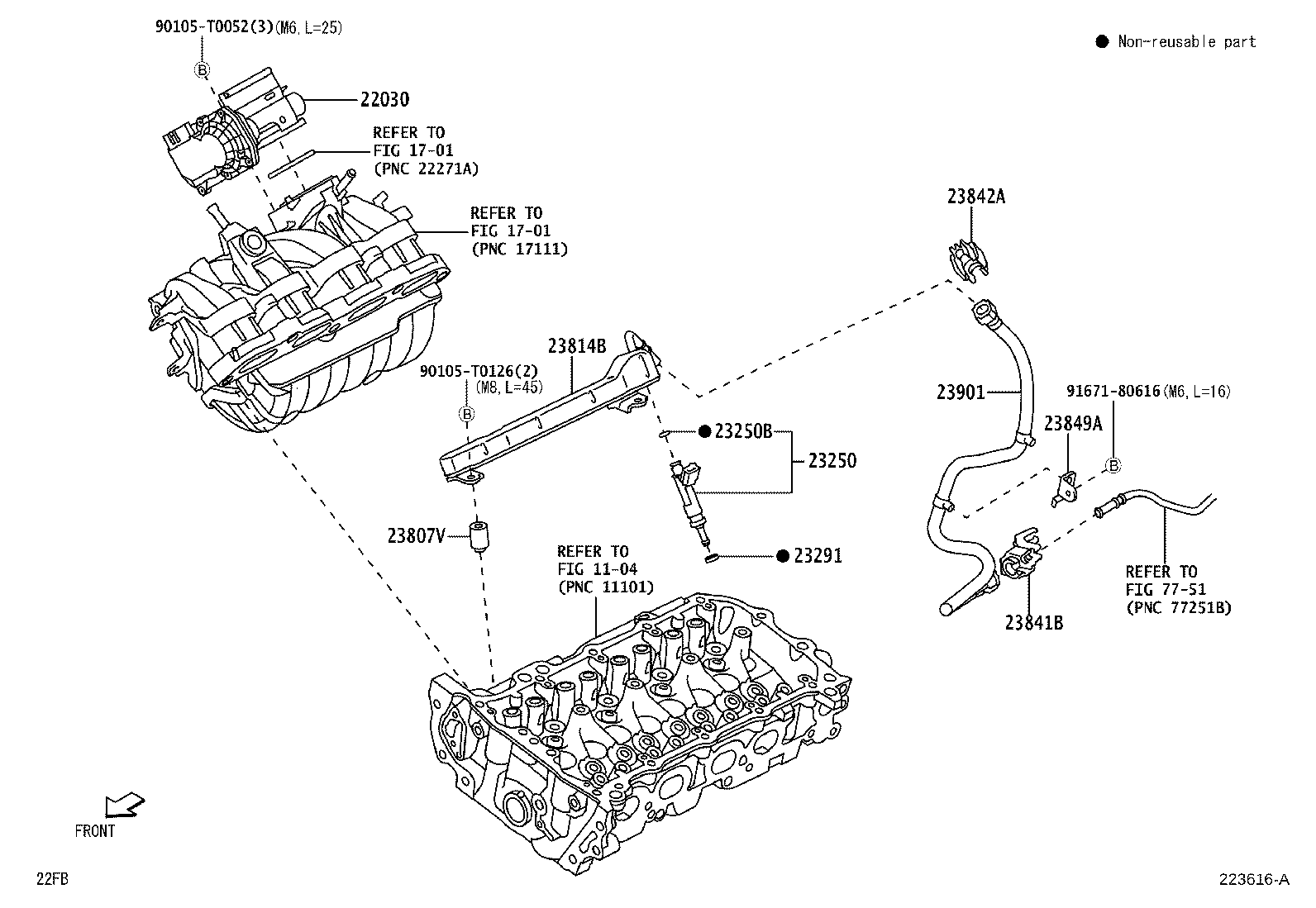

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22030 — Body Assy, Throttle W/Throttle Position Sensor | ||||
| 22030-0Y140 |
Body Assy, Throttle W/Throttle Position Sensor
2021-10 → 2023-10
ended
|
2NRVE F850 | — | |
| 22030-BZ040 |
Body Assy, Throttle W/Throttle Position Sensor
2018-12 → 2021-10
ended
|
2NRVE F850 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-BZ050 |
Injector Assy, Fuel
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-0Y020 |
Insulator, Injector Vibration
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-47040 |
Spacer, NO.1(FOR DELIVERY PIPE)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 23814B — Pipe, Fuel Delivery | ||||
| 23814-BZ070 |
Pipe, Fuel Delivery
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-B1010 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2018-12 → 2019-11
ended
|
2NRVE F850 | — | |
| 23841-BZ020 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2019-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23842-B0010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 23849A — Support, Fuel Pipe | ||||
| 23849-BZ030 |
Support, Fuel Pipe
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-BZ030 |
Tube Sub-assy, Fuel
2018-12 → 2023-10
ended
|
2NRVE F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
