Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

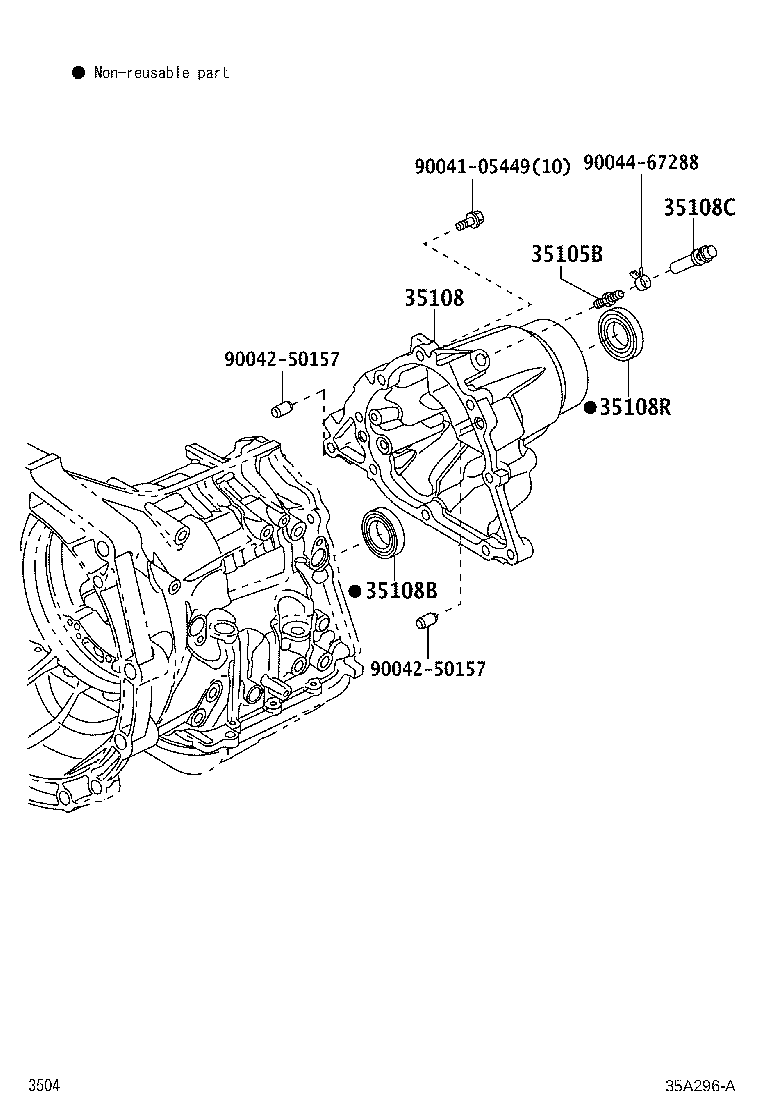

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35105B — Plug, Breather | ||||
| 90049-15054 |
Plug, Breather
2018-12 → 2023-10
ended
|
F850 | — | |
| 35108 — Housing Sub-assy, Extension (ATM) | ||||
| 35108-B1010 |
Housing Sub-assy, Extension (ATM)
2018-12 → 2023-10
ended
|
F850 | — | |
| 35108B — Bearing (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING) | ||||
| 90043-63277 |
Bearing (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
2018-12 → 2023-10
ended
|
F850 | — | |
| 35108C — Plug (FOR AUTOMATIC EXTENSION HOUSING) | ||||
| 35120-B0020 |
Plug (FOR AUTOMATIC EXTENSION HOUSING)
2018-12 → 2023-10
ended
|
F850 | — | |
| 35108R — Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING) | ||||
| 90043-11285 |
Seal, Oil (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
