Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

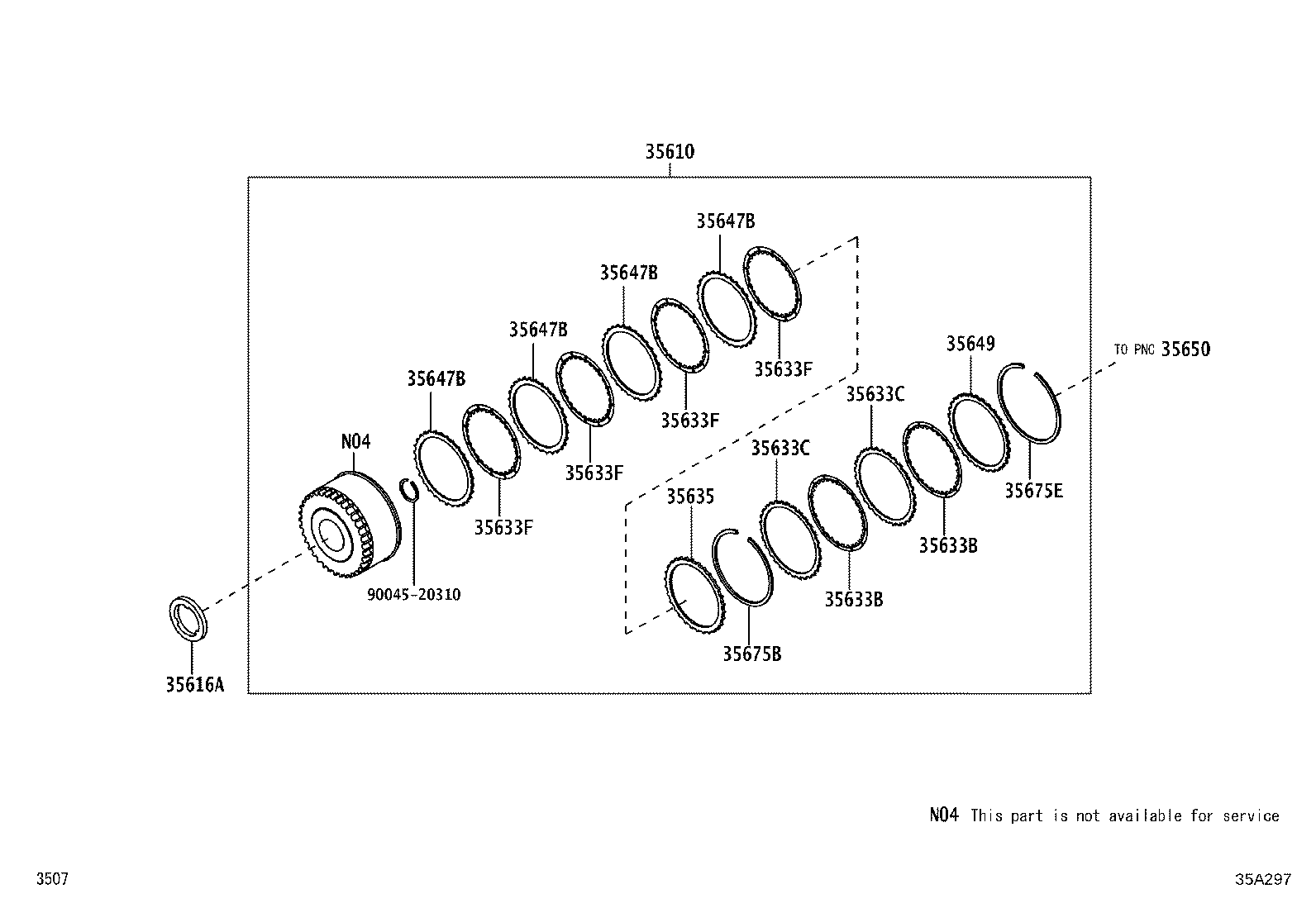

Exploded illustration 35A297 35610 — CLUTCH ASSY, FRONT MULTIPLE DISC (1 parts) 35616A — BEARING, FRONT CLUTCH THRUST (3 parts) 35633B — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (1 parts) 35633F — DISC, CLUTCH (FOR FRONT CLUTCH) (1 parts) 35635 — FLANGE, FORWARD CLUTCH (1 parts) 35633C — DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) (1 parts) 35633B — DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) (1 parts) 35633C — DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) (1 parts) 35647B — PLATE, CLUTCH, NO.2 (1 parts) 35633F — DISC, CLUTCH (FOR FRONT CLUTCH) (1 parts) 35647B — PLATE, CLUTCH, NO.2 (1 parts) 35633F — DISC, CLUTCH (FOR FRONT CLUTCH) (1 parts) 35647B — PLATE, CLUTCH, NO.2 (1 parts) 35633F — DISC, CLUTCH (FOR FRONT CLUTCH) (1 parts) 35647B — PLATE, CLUTCH, NO.2 (1 parts) 35649 — FLANGE, REVERSE CLUTCH (1 parts) 35675E — RING, HOLE SNAP (FOR REAR CLUTCH FLANGE) (1 parts) 35675B — RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) (5 parts) 9004520310 — not listed in this catalogue 35650 — CLUTCH ASSY, REAR MULTIPLE DISC (1 parts)
35A297 · 19 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
35610 — Clutch Assy, Front Multiple Disc
35610-B1030 Clutch Assy, Front Multiple Disc
2018-12 → 2023-10 ended
F850 —
35616A — Bearing, Front Clutch Thrust
90043-74043 note Bearing, Front Clutch Thrust
2018-12 → 2023-10 ended
F850 —
90043-74044 note Bearing, Front Clutch Thrust
2018-12 → 2023-10 ended
F850 —
90043-74045 note Bearing, Front Clutch Thrust
2018-12 → 2023-10 ended
F850 —
35633B — Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
35633-B1010 Disc, Clutch (FOR FORWARD MULTIPLE DISC CLUTCH)
2018-12 → 2023-10 ended
F850 —
35633C — Disc, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH)
35634-97206 Disc, Clutch (FOR DIRECT MULTIPLE DISC CLUTCH)
2018-12 → 2023-10 ended
F850 —
35633F — Disc, Clutch (FOR FRONT CLUTCH)
35667-97206 Disc, Clutch (FOR FRONT CLUTCH)
2018-12 → 2023-10 ended
F850 —
35635 — Flange, Forward Clutch
35635-97201 note Flange, Forward Clutch
2018-12 → 2023-10 ended
F850 —
35647B — Plate, Clutch, NO.2
35647-97204 Plate, Clutch, NO.2
2018-12 → 2023-10 ended
F850 —
35649 — Flange, Reverse Clutch
35675-97201 note Flange, Reverse Clutch
2018-12 → 2023-10 ended
F850 —
35650 — Clutch Assy, Rear Multiple Disc
35650-B1020 Clutch Assy, Rear Multiple Disc
2018-12 → 2023-10 ended
F850 —
35675B — Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
90045-21164 note Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
2018-12 → 2023-10 ended
F850 —
90045-21166 note Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
2018-12 → 2023-10 ended
F850 —
90045-21167 note Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
2018-12 → 2023-10 ended
F850 —
90045-21168 note Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
2018-12 → 2023-10 ended
F850 —
90045-21169 note Ring, Hole Snap (FOR FORWARD CLUTCH FLANGE)
2018-12 → 2023-10 ended
F850 —
35675E — Ring, Hole Snap (FOR REAR CLUTCH FLANGE)
90045-21165 Ring, Hole Snap (FOR REAR CLUTCH FLANGE)
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
