Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

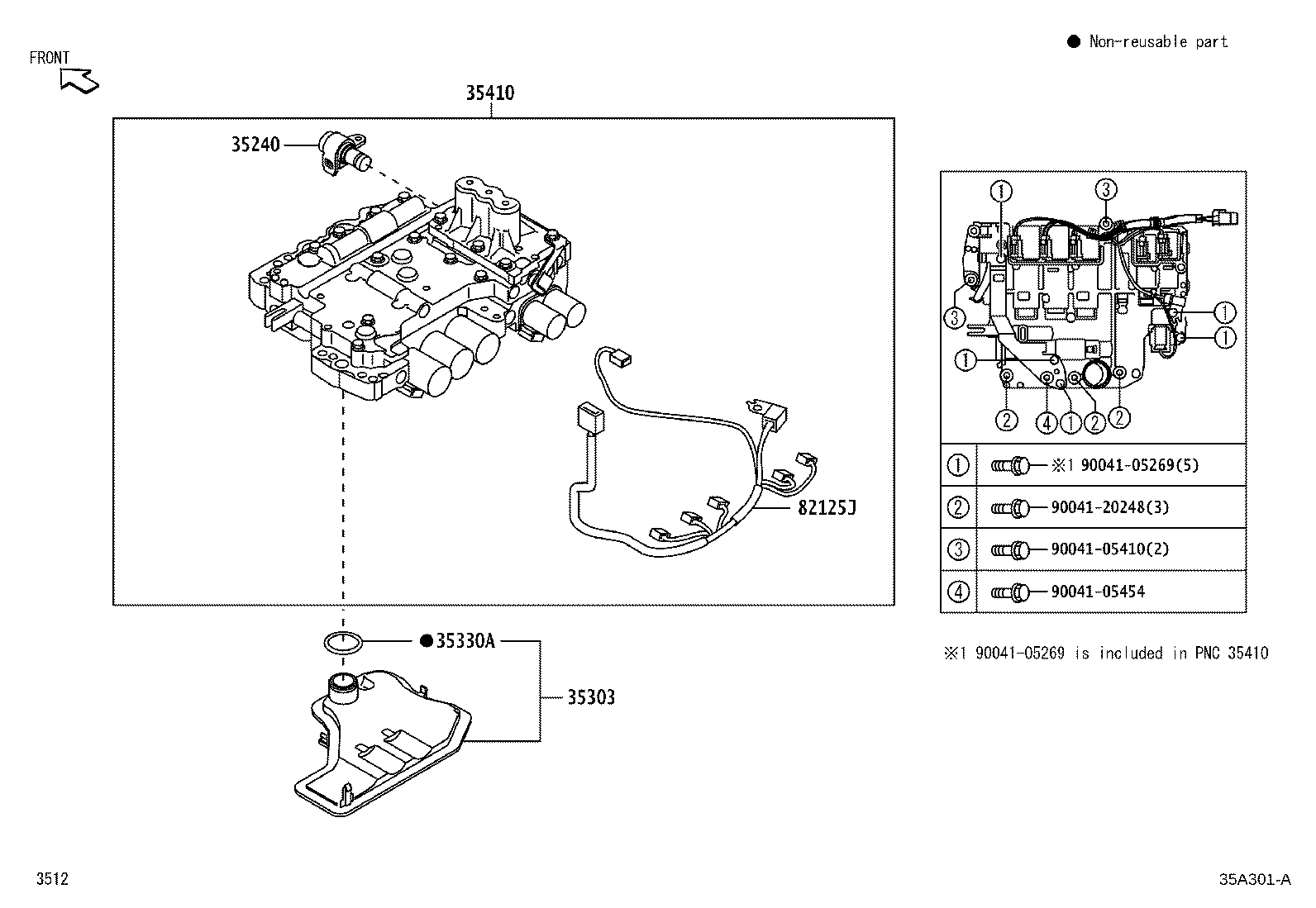

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35240 — Solenoid Assy, Automatic Transmission 3Way | ||||
| 35240-B1020 |
Solenoid Assy, Automatic Transmission 3Way
2018-12 → 2023-10
ended
|
F850 | — | |
| 35303 — Strainer Sub-assy, Oil | ||||
| 35303-B1010 |
Strainer Sub-assy, Oil
2018-12 → 2023-10
ended
|
F850 | — | |
| 35330A — Ring, O (FOR OIL STRAINER) | ||||
| 90043-01364 |
Ring, O (FOR OIL STRAINER)
2018-12 → 2023-10
ended
|
F850 | — | |
| 35410 — Body Assy, Transmission Valve | ||||
| 35410-B1060 |
Body Assy, Transmission Valve
2018-12 → 2019-05
ended
|
F850 | — | |
| 35410-B1061 |
Body Assy, Transmission Valve
2019-06 → 2023-10
ended
|
F850 | — | |
| 82125J — Wire, Transmission | ||||
| 82125-B1050 |
Wire, Transmission
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
