Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

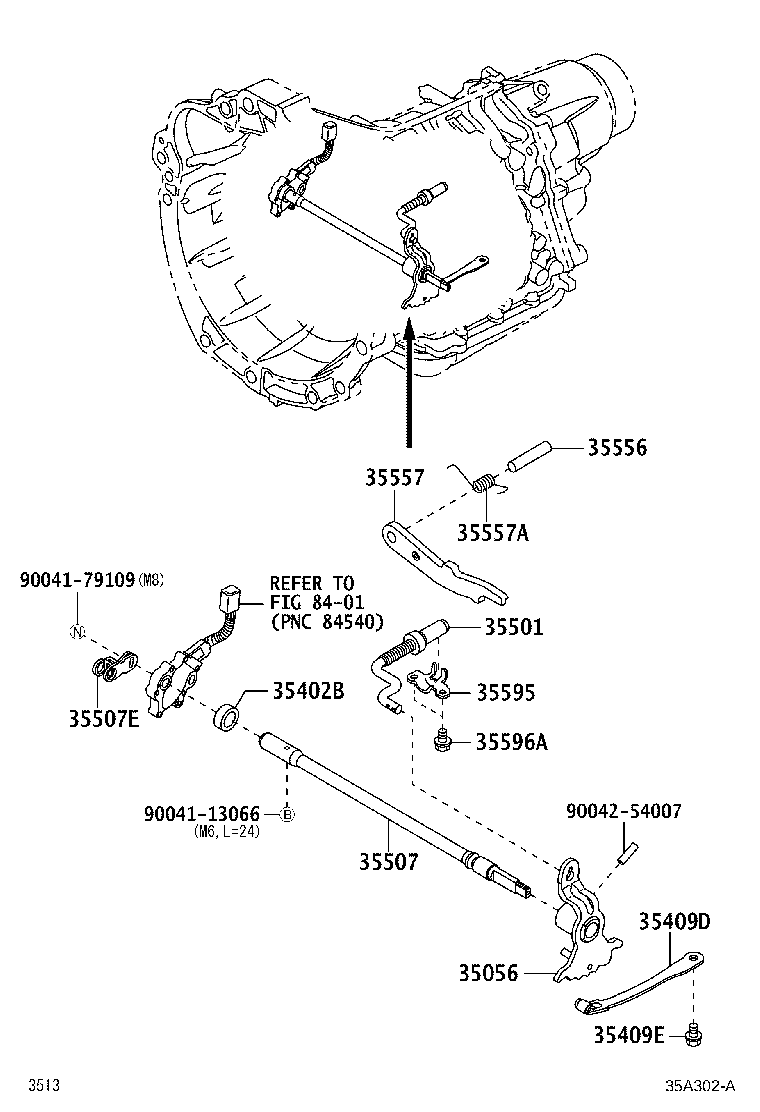

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35056 — Lever Sub-assy, Parking Lock W/Roller | ||||
| 35057-B1010 |
Lever Sub-assy, Parking Lock W/Roller
2018-12 → 2023-10
ended
|
F850 | — | |
| 35402B — Seal,Oil(FOR MANUAL VALVE) | ||||
| 90043-11256 |
Seal,Oil(FOR MANUAL VALVE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 35409D — Spring Sub-assy, Manual Detent | ||||
| 35409-B1020 |
Spring Sub-assy, Manual Detent
2018-12 → 2023-10
ended
|
F850 | — | |
| 35409E — Bolt(FOR MANUAL DETENT SPRING) | ||||
| 90041-05511 |
Bolt(FOR MANUAL DETENT SPRING)
2018-12 → 2023-10
ended
|
F850 | — | |
| 35501 — Rod Sub-assy, Parking Lock | ||||
| 35501-B5010 |
Rod Sub-assy, Parking Lock
2018-12 → 2023-10
ended
|
F850 | — | |
| 35507 — Shaft Sub-assy, Transmission Control Intermediate | ||||
| 33511-B1010 |
Shaft Sub-assy, Transmission Control Intermediate
2018-12 → 2023-10
ended
|
F850 | — | |
| 35507E — Lever,Transmission Control Shaft | ||||
| 35507-87402 |
Lever,Transmission Control Shaft
2018-12 → 2023-10
ended
|
F850 | — | |
| 35556 — Shaft, Parking Lock Pawl | ||||
| 35556-87502 |
Shaft, Parking Lock Pawl
2018-12 → 2023-10
ended
|
F850 | — | |
| 35557 — Pawl, Parking Lock | ||||
| 35557-B1020 |
Pawl, Parking Lock
2018-12 → 2020-03
ended
|
F850 | — | |
| 35557-B1030 |
Pawl, Parking Lock
2020-04 → 2023-10
ended
|
F850 | — | |
| 35557A — Spring, Torsion (FOR PARKING LOCK PAWL) | ||||
| 90045-08419 |
Spring, Torsion (FOR PARKING LOCK PAWL)
2018-12 → 2023-10
ended
|
F850 | — | |
| 35595 — Bracket, Parking Lock Pawl | ||||
| 35595-B1020 |
Bracket, Parking Lock Pawl
2018-12 → 2023-10
ended
|
F850 | — | |
| 35596A — Bolt (FOR PAWL STOPPER PLATE) | ||||
| 90041-05412 |
Bolt (FOR PAWL STOPPER PLATE)
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
