Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

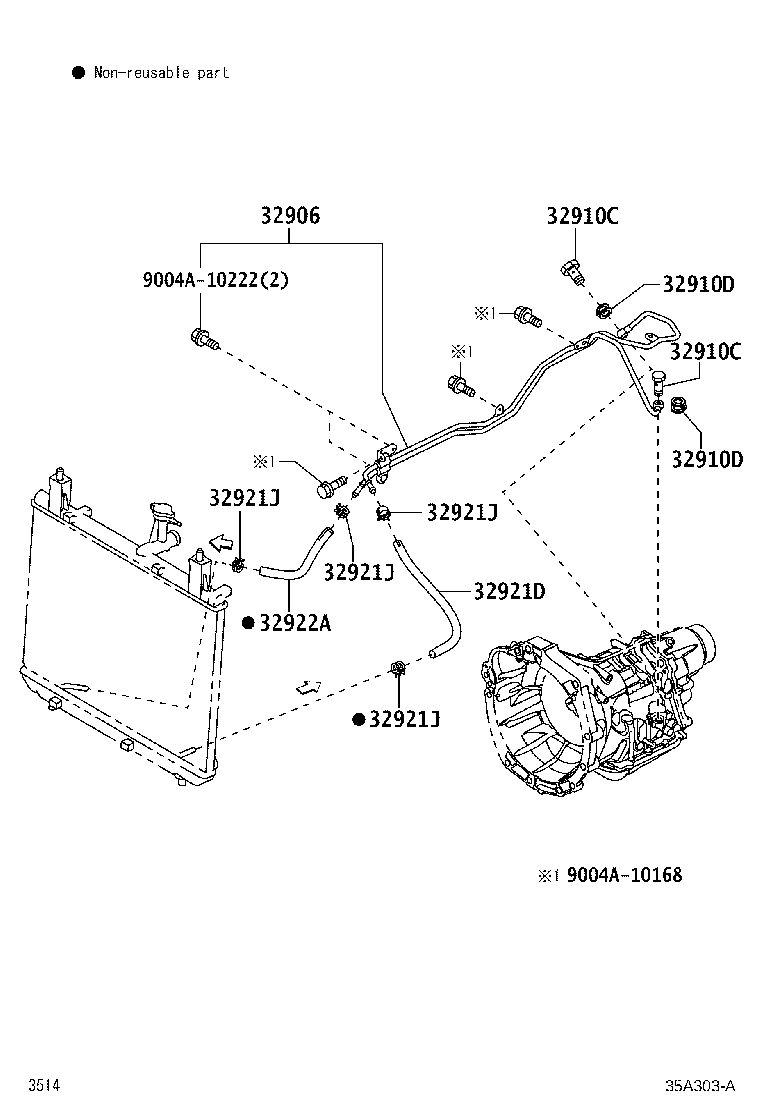

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32906 — Tube Sub-assy, Oil Cooler | ||||
| 32909-BZ100 |
Tube Sub-assy, Oil Cooler
2018-12 → 2023-10
ended
|
F850 | — | |
| 32910C — Bolt, Union(FOR OIL COOLER) | ||||
| 90044-01081 |
Bolt, Union(FOR OIL COOLER)
2018-12 → 2023-10
ended
|
F850 | — | |
| 32910D — Gasket(FOR OIL COOLER) | ||||
| 9004A-43023 |
Gasket(FOR OIL COOLER)
2018-12 → 2023-10
ended
|
F850 | — | |
| 32921D — Hose(FOR OIL COOLER INLET) | ||||
| 32941-B0020 |
Hose(FOR OIL COOLER INLET)
2018-12 → 2023-10
ended
|
F850 | — | |
| 32921J — Clip(FOR OIL COOLER HOSE) | ||||
| 90466-16002 |
Clip(FOR OIL COOLER HOSE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 32922A — Hose(FOR OIL COOLER OUTLET) | ||||
| 32942-B0040 |
Hose(FOR OIL COOLER OUTLET)
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
