Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

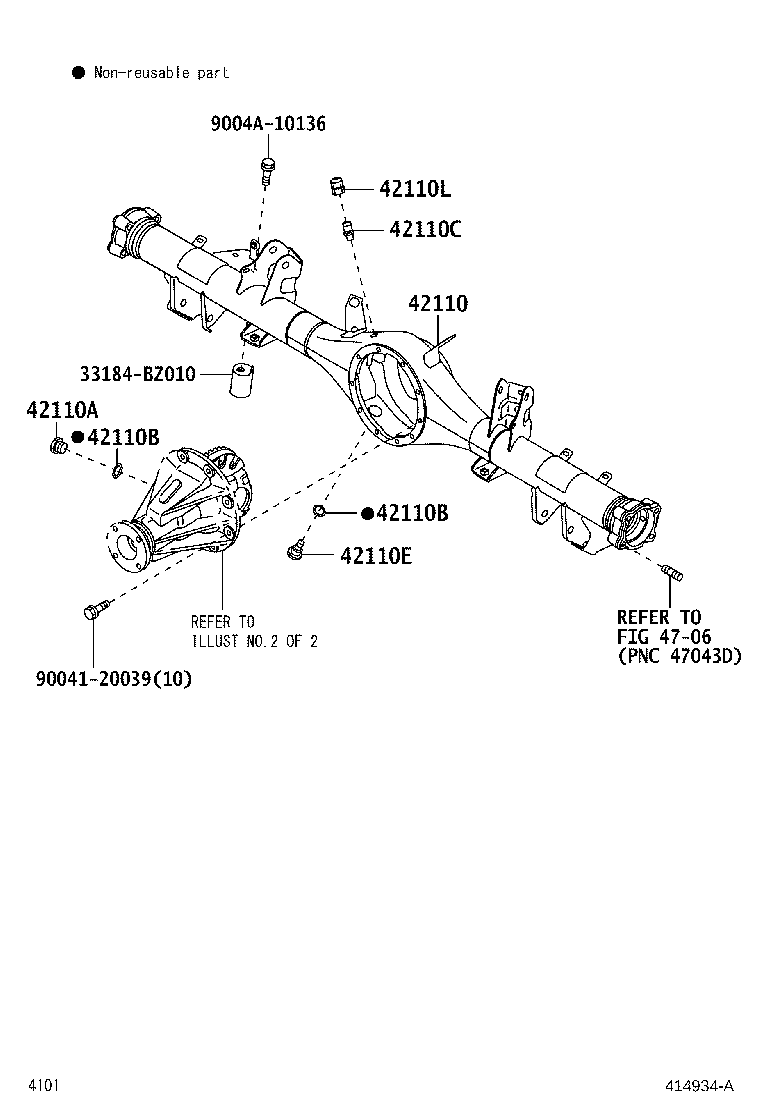

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42110 — Housing Assy, Rear Axle | ||||
| 42110-BZ330 |
Housing Assy, Rear Axle
2018-12 → 2023-10
ended
|
F850 | — | |
| 42110A — Plug (FOR REAR AXLE HOUSING FILLER) | ||||
| 90043-41046 |
Plug (FOR REAR AXLE HOUSING FILLER)
2018-12 → 2023-10
ended
|
F850 | — | |
| 42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 90044-30237 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2018-12 → 2023-10
ended
|
F850 | — | |
| 42110C — Plug, Breather (FOR REAR AXLE HOUSING) | ||||
| 90049-15026 |
Plug, Breather (FOR REAR AXLE HOUSING)
2018-12 → 2023-10
ended
|
F850 | — | |
| 42110E — Plug (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90043-41068 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2018-12 → 2023-10
ended
|
F850 | — | |
| 42110L — Plug Breather, NO.2 | ||||
| 9004A-93004 |
Plug Breather, NO.2
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
