Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

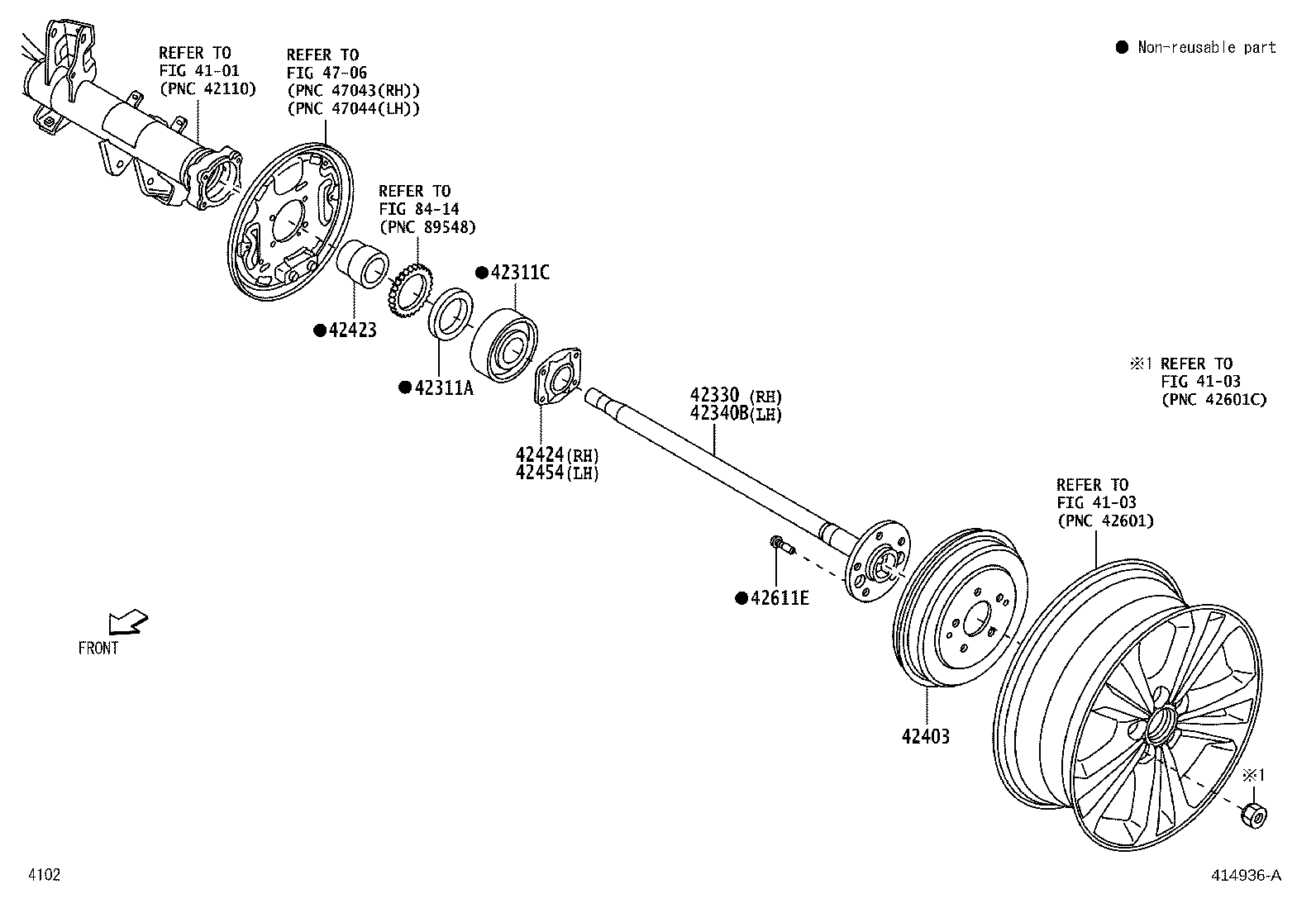

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311A — Seal, Oil(FOR REAR AXLE SHAFT) | ||||
| 9004A-31018 |
Seal, Oil(FOR REAR AXLE SHAFT)
2018-12 → 2023-10
ended
|
F850 | — | |
| 42311C — Bearing(FOR REAR AXLE SHAFT) | ||||
| 9004A-36027 |
Bearing(FOR REAR AXLE SHAFT)
2018-12 → 2023-10
ended
|
F850 | — | |
| 42330 — Shaft Assy, Rear Drive, RH | ||||
| 42301-BZ120 |
Shaft Assy, Rear Drive, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 42340B — Shaft Assy, Rear Drive, LH | ||||
| 42302-BZ120 |
Shaft Assy, Rear Drive, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-87Z06 |
Drum Sub-assy, Rear Brake
2018-12 → 2023-10
ended
|
F850 | — | |
| 42423 — Retainer, Rear Axle Bearing, Inner | ||||
| 42423-BZ130 |
Retainer, Rear Axle Bearing, Inner
2018-12 → 2020-03
ended
|
F850 | — | |
| 42423-BZ131 |
Retainer, Rear Axle Bearing, Inner
2020-04 → 2023-10
ended
|
F850 | — | |
| 42424 — Retainer, Rear Axle Bearing, Outer, RH | ||||
| 42424-BZ020 |
Retainer, Rear Axle Bearing, Outer, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 42454 — Retainer, Rear Axle Bearing, Outer, LH | ||||
| 42424-BZ020 |
Retainer, Rear Axle Bearing, Outer, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 42611E — Bolt, Hub (FOR REAR AXLE) | ||||
| 90049-12055 |
Bolt, Hub (FOR REAR AXLE)
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
