Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

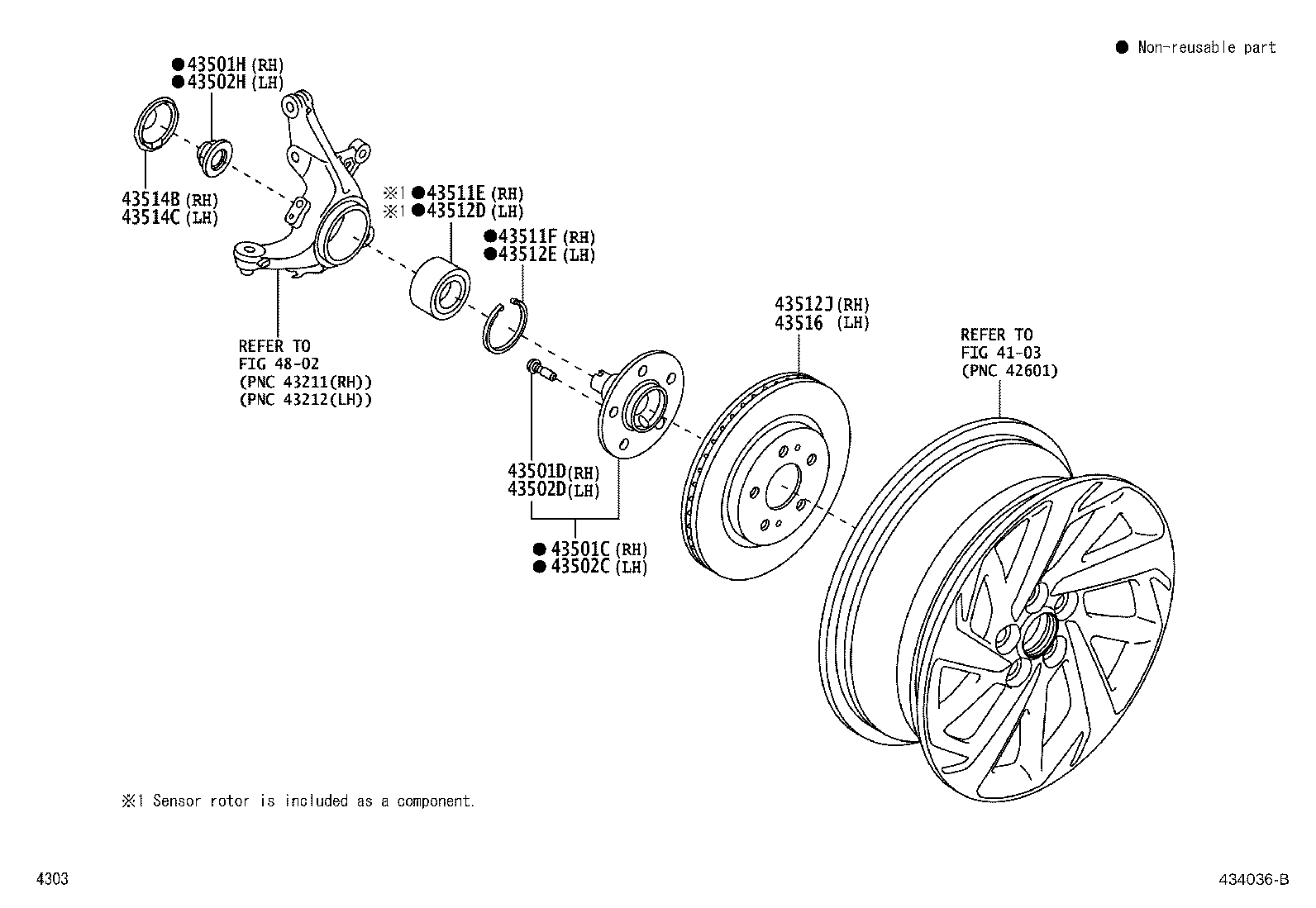

Exploded illustration 434036B 43514B — CAP, FRONT AXLE HUB GREASE, RH (1 parts) 43514C — CAP, FRONT AXLE HUB GREASE, LH (1 parts) 43501H — NUT (FOR FRONT AXLE SHAFT RH) (1 parts) 43502H — NUT (FOR FRONT AXLE SHAFT LH) (1 parts) 4802 — not listed in this catalogue 43511E — BEARING (FOR FRONT AXLE HUB RH) (1 parts) 43512D — BEARING (FOR FRONT AXLE HUB LH) (1 parts) 43511F — RING, HOLE SNAP (FOR FRONT AXLE HUB RH) (1 parts) 43512E — RING, HOLE SNAP (FOR FRONT AXLE HUB LH) (1 parts) 43501D — BOLT, HUB (FOR FRONT AXLE RH) (1 parts) 43502D — BOLT, HUB (FOR FRONT AXLE LH) (1 parts) 43501C — HUB SUB-ASSY, FRONT AXLE, RH (1 parts) 43502C — HUB SUB-ASSY, FRONT AXLE, LH (1 parts) 43516 — DISC, FRONT LH (2 parts) 43512J — DISC, FRONT RH (2 parts) 4103 — not listed in this catalogue
434036B · 14 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
43501C — Hub Sub-assy, Front Axle, RH
43502-BZ200 Hub Sub-assy, Front Axle, RH
2018-12 → 2023-10 ended
F850 —
43501D — Bolt, Hub (FOR FRONT AXLE RH)
90049-12055 Bolt, Hub (FOR FRONT AXLE RH)
2018-12 → 2023-10 ended
F850 —
43501H — Nut (FOR FRONT AXLE SHAFT RH)
9004A-17227 Nut (FOR FRONT AXLE SHAFT RH)
2018-12 → 2023-10 ended
F850 —
43502C — Hub Sub-assy, Front Axle, LH
43502-BZ200 Hub Sub-assy, Front Axle, LH
2018-12 → 2023-10 ended
F850 —
43502D — Bolt, Hub (FOR FRONT AXLE LH)
90049-12055 Bolt, Hub (FOR FRONT AXLE LH)
2018-12 → 2023-10 ended
F850 —
43502H — Nut (FOR FRONT AXLE SHAFT LH)
9004A-17227 Nut (FOR FRONT AXLE SHAFT LH)
2018-12 → 2023-10 ended
F850 —
43511E — Bearing (FOR FRONT AXLE HUB RH)
43560-BZ050 note Bearing (FOR FRONT AXLE HUB RH)
2018-12 → 2023-10 ended
F850 —
43511F — Ring, Hole Snap (FOR FRONT AXLE HUB RH)
90045-21188 Ring, Hole Snap (FOR FRONT AXLE HUB RH)
2018-12 → 2023-10 ended
F850 —
43512D — Bearing (FOR FRONT AXLE HUB LH)
43560-BZ050 note Bearing (FOR FRONT AXLE HUB LH)
2018-12 → 2023-10 ended
F850 —
43512E — Ring, Hole Snap (FOR FRONT AXLE HUB LH)
90045-21188 Ring, Hole Snap (FOR FRONT AXLE HUB LH)
2018-12 → 2023-10 ended
F850 —
43512J — Disc, Front RH
43512-BZ360 Disc, Front RH
2018-12 → 2019-09 ended
F850 —
43512-BZ361 Disc, Front RH
2019-10 → 2023-10 ended
F850 —
43514B — Cap, Front Axle Hub Grease, RH
43514-BZ040 Cap, Front Axle Hub Grease, RH
2018-12 → 2023-10 ended
F850 —
43514C — Cap, Front Axle Hub Grease, LH
43514-BZ040 Cap, Front Axle Hub Grease, LH
2018-12 → 2023-10 ended
F850 —
43516 — Disc, Front LH
43512-BZ360 Disc, Front LH
2018-12 → 2019-09 ended
F850 —
43512-BZ361 Disc, Front LH
2019-10 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
