Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

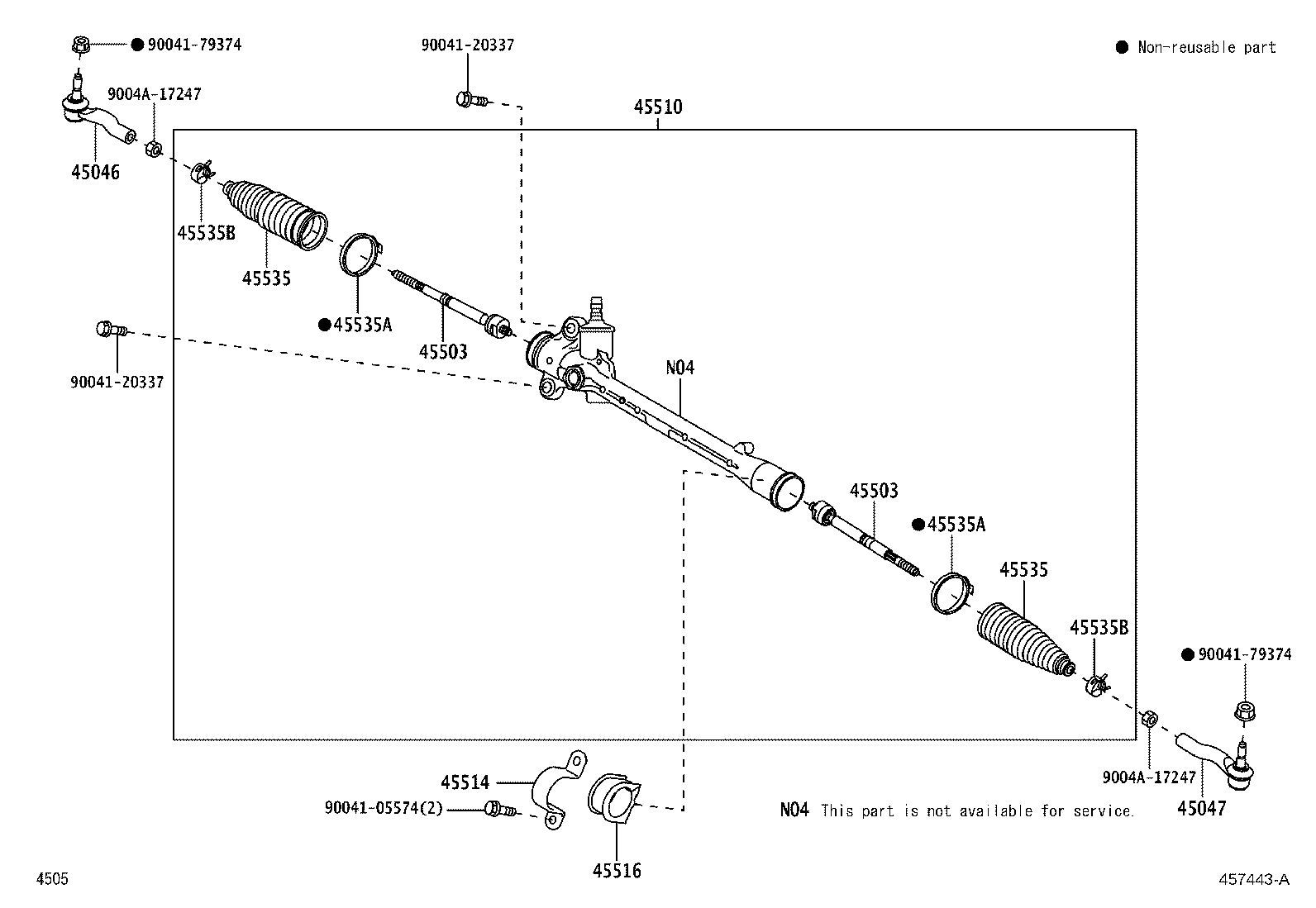

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45046 — End Sub-assy, Tie Rod, RH | ||||
| 45046-BZ210 |
End Sub-assy, Tie Rod, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 45047 — End Sub-assy, Tie Rod, LH | ||||
| 45046-BZ210 |
End Sub-assy, Tie Rod, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 45503 — End Sub-assy, Steering Rack | ||||
| 45503-BZ210 |
End Sub-assy, Steering Rack
2018-12 → 2023-10
ended
|
F850 | — | |
| 45510 — Gear Assy, Steering | ||||
| 45510-BZ360 |
Gear Assy, Steering
2018-12 → 2023-10
ended
|
F850 | — | |
| 45514 — Bracket, Steering Rack Housing, NO.1 | ||||
| 45514-BZ120 |
Bracket, Steering Rack Housing, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
| 45516 — Grommet, Steering Rack Housing, NO.1 | ||||
| 45516-BZ120 |
Grommet, Steering Rack Housing, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
| 45535 — Boot, Steering Rack, NO.1 | ||||
| 45535-BZ110 |
Boot, Steering Rack, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
| 45535A — Clamp(FOR STEERING RACK BOOT) | ||||
| 45538-BZ050 |
Clamp(FOR STEERING RACK BOOT)
2018-12 → 2023-10
ended
|
F850 | — | |
| 45535B — Clip(FOR STEERING RACK BOOT) | ||||
| 45537-BZ030 |
Clip(FOR STEERING RACK BOOT)
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
