Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

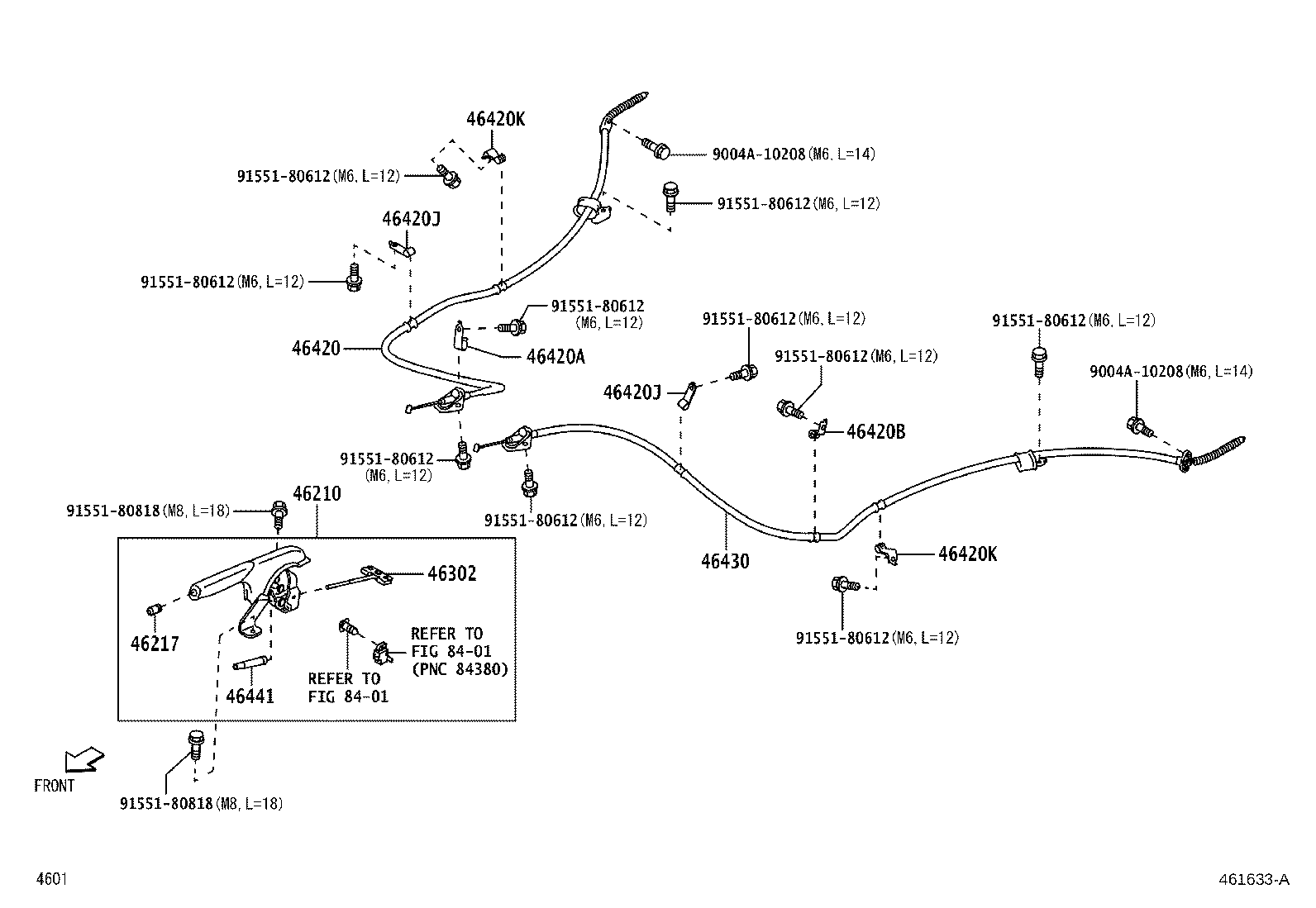

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46210 — Lever Assy, Parking Brake | ||||
| 46210-BZ150-C1 note |
Lever Assy, Parking Brake
2018-12 → 2023-10
ended
|
F850 | — | |
| 46217 — Knob, Parking Brake Release Rod | ||||
| 46217-BZ010 |
Knob, Parking Brake Release Rod
2018-12 → 2023-10
ended
|
F850 | — | |
| 46302 — Rod Sub-assy, Parking Brake Pull, NO.1 | ||||
| 46302-87Z03 |
Rod Sub-assy, Parking Brake Pull, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
| 46420 — Cable Assy, Parking Brake, NO.2 | ||||
| 46420-BZ230 |
Cable Assy, Parking Brake, NO.2
2018-12 → 2023-10
ended
|
F850 | — | |
| 46420A — Clamp, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 46467-BZ010 |
Clamp, NO.1(FOR PARKING BRAKE CABLE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 46420B — Clamp, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 9004A-46126 |
Clamp, NO.2(FOR PARKING BRAKE CABLE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 9004A-46133 |
Clamp, NO.3(FOR PARKING BRAKE CABLE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 46420K — Clamp, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 9004A-46289 |
Clamp, NO.4(FOR PARKING BRAKE CABLE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 46430 — Cable Assy, Parking Brake, NO.3 | ||||
| 46430-BZ230 |
Cable Assy, Parking Brake, NO.3
2018-12 → 2023-10
ended
|
F850 | — | |
| 46441 — Nut, Wire Adjusting, NO.1 | ||||
| 46441-87Z04 |
Nut, Wire Adjusting, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
