Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

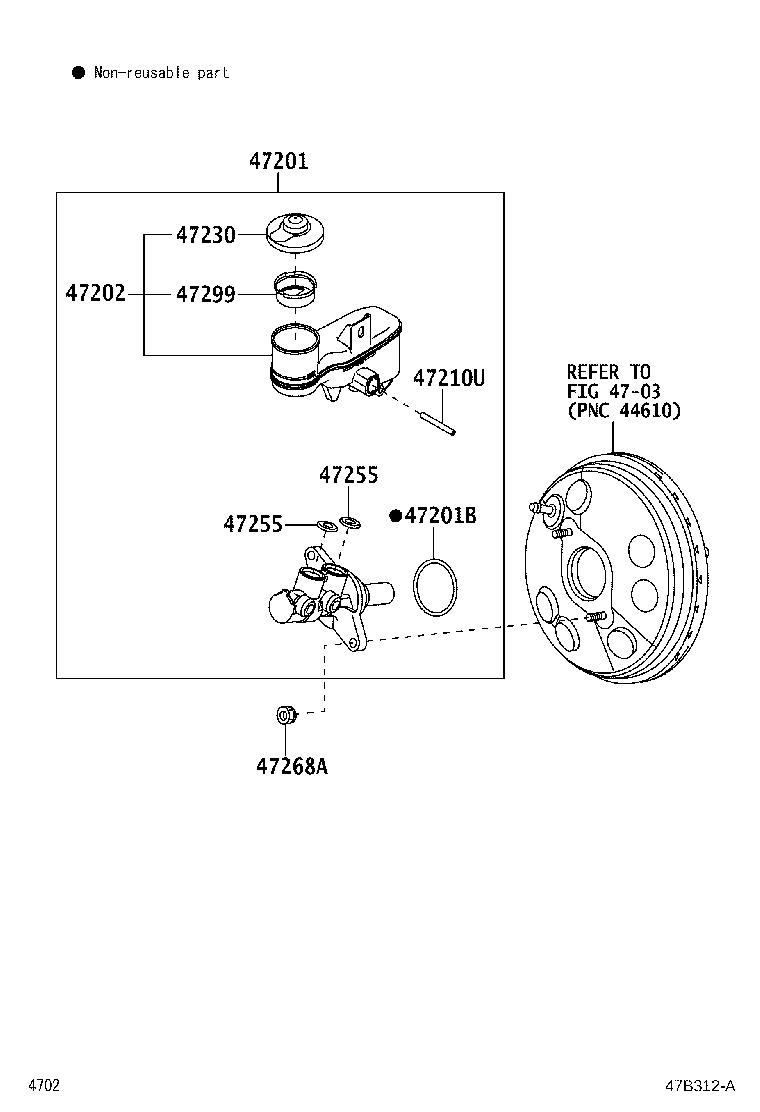

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-BZ820 |
Cylinder Sub-assy, Brake Master
2018-12 → 2021-10
ended
|
F850 | — | |
| 47201-BZ821 |
Cylinder Sub-assy, Brake Master
2021-11 → 2023-10
ended
|
F850 | — | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 9004A-30046 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2018-12 → 2023-10
ended
|
F850 | — | |
| 47202 — Reservoir Sub-assy, Brake Master Cylinder | ||||
| 47220-BZ280 |
Reservoir Sub-assy, Brake Master Cylinder
2018-12 → 2023-10
ended
|
F850 | — | |
| 47210U — Pin, Straight(FOR BRAKE MASTER CYLINDER) | ||||
| 90042-43029 |
Pin, Straight(FOR BRAKE MASTER CYLINDER)
2018-12 → 2023-10
ended
|
F850 | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-BZ130 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2018-12 → 2023-10
ended
|
F850 | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 47255-BZ110 |
Grommet, Master Cylinder Reservoir
2018-12 → 2023-10
ended
|
F850 | — | |
| 47268A — Nut, Brake Master Cylinder | ||||
| 90041-79124 |
Nut, Brake Master Cylinder
2018-12 → 2023-10
ended
|
F850 | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-BZ090 |
Strainer, Brake Master Cylinder Reservoir
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
