Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

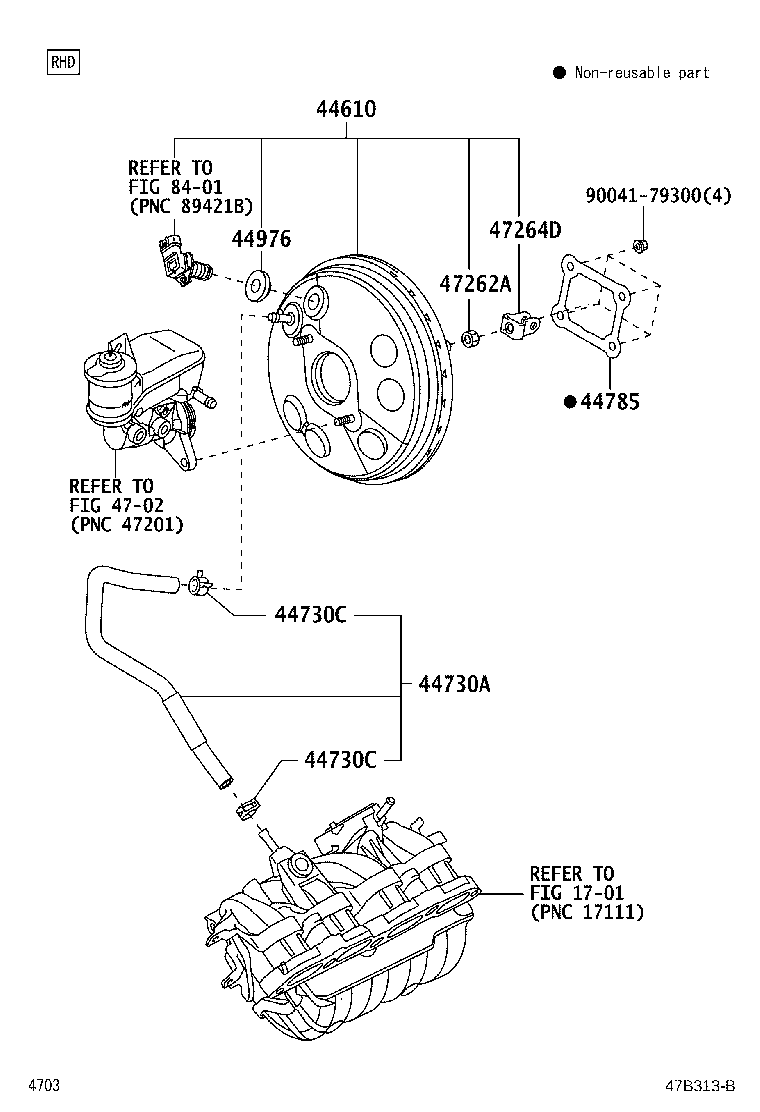

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-BZ800 |
Booster Assy, Brake
2018-12 → 2023-10
ended
|
F850 | — | |
| 44730A — Hose, Vacuum, NO.1 | ||||
| 44750-BZ250 |
Hose, Vacuum, NO.1
2018-12 → 2019-11
ended
|
F850 | — | |
| 44750-BZ350 |
Hose, Vacuum, NO.1
2019-12 → 2023-10
ended
|
F850 | — | |
| 44730C — Clip(FOR VACUUM HOSE) | ||||
| 90044-67161 |
Clip(FOR VACUUM HOSE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 44785 — Gasket, Brake Booster | ||||
| 47278-87Z01 |
Gasket, Brake Booster
2018-12 → 2023-10
ended
|
F850 | — | |
| 44976 — Seal, Booster | ||||
| 44685-B2010 |
Seal, Booster
2018-12 → 2023-10
ended
|
F850 | — | |
| 47262A — Nut, Master Cylinder Push Rod Clevis Lock | ||||
| 9004A-17229 |
Nut, Master Cylinder Push Rod Clevis Lock
2018-12 → 2023-10
ended
|
F850 | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-BZ120 |
Clevis, Brake Master Cylinder Push Rod
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
