Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

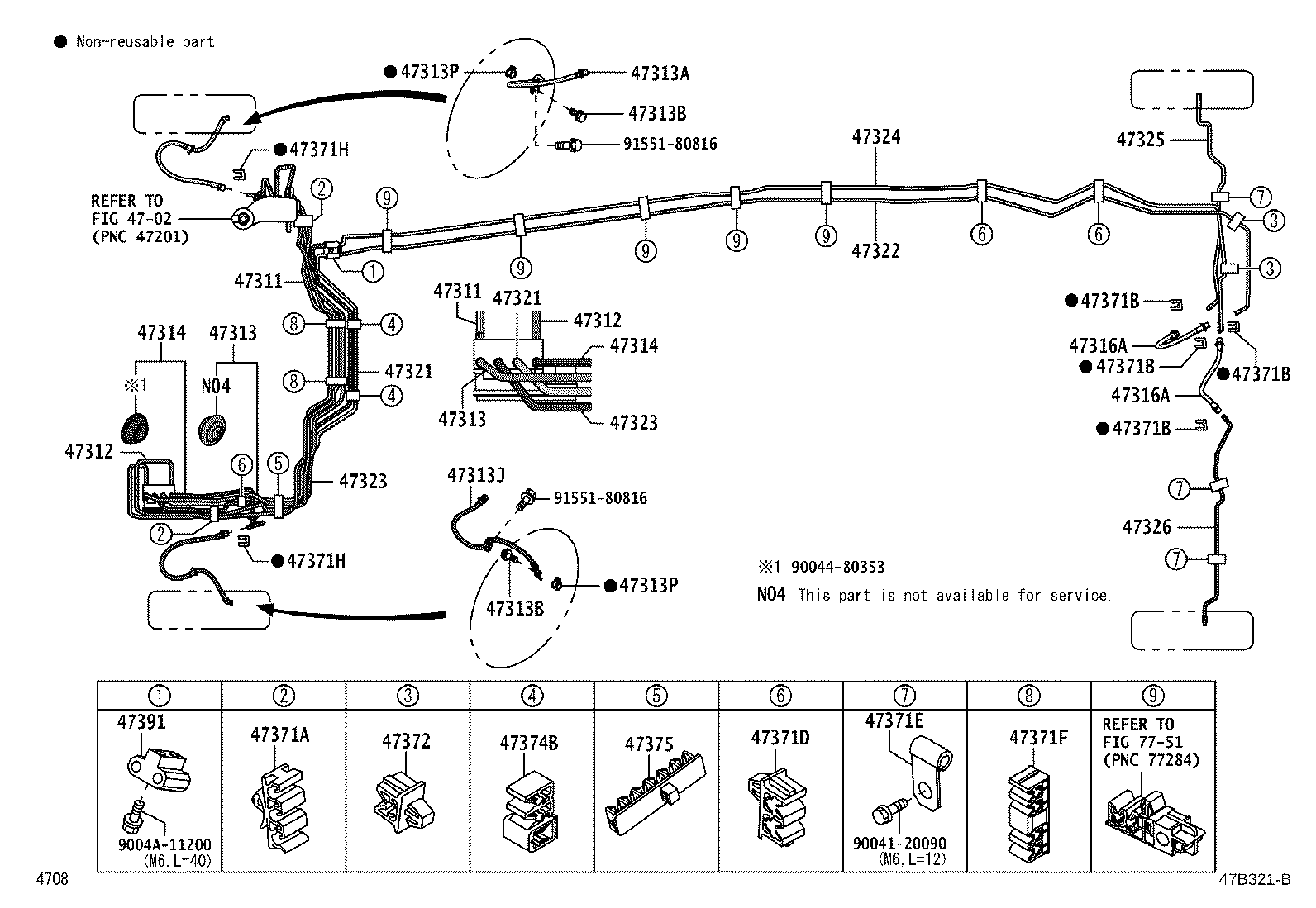

Exploded illustration 47B321B 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (1 parts) 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (1 parts) 47321 — TUBE, REAR BRAKE, NO.1 (1 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (1 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (1 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (1 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (1 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (1 parts) 47321 — TUBE, REAR BRAKE, NO.1 (1 parts) 47323 — TUBE, REAR BRAKE, NO.3 (1 parts) 47371H — CLAMP, BRAKE TUBE, NO.12 (1 parts) 47371H — CLAMP, BRAKE TUBE, NO.12 (1 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (2 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (2 parts) 47322 — TUBE, REAR BRAKE, NO.2 (1 parts) 47324 — TUBE, REAR BRAKE, NO.4 (1 parts) 47325 — TUBE, REAR BRAKE, NO.5 (1 parts) 47326 — TUBE, REAR BRAKE, NO.6 (1 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (1 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (1 parts) 47371B — CLAMP, BRAKE TUBE, NO.6 (1 parts) 47371B — CLAMP, BRAKE TUBE, NO.6 (1 parts) 47371B — CLAMP, BRAKE TUBE, NO.6 (1 parts) 47371B — CLAMP, BRAKE TUBE, NO.6 (1 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (1 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (1 parts) 47323 — TUBE, REAR BRAKE, NO.3 (1 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (1 parts) 4702 — not listed in this catalogue 9004480353 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (1 parts) 47371E — CLAMP, BRAKE TUBE, NO.9 (1 parts) 47371F — CLAMP, BRAKE TUBE, NO.10 (1 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (1 parts) 9004120090 — not listed in this catalogue 47371D — CLAMP, BRAKE TUBE, NO.8 (1 parts) 47375 — CLAMP, BRAKE TUBE, NO.5 (1 parts) 47391 — WAY, BRAKE TUBE (1 parts) 9004A11200 — not listed in this catalogue 47374B — CLAMP, BRAKE TUBE, NO.4 (1 parts) 7751 — not listed in this catalogue 9155180816 — not listed in this catalogue 9155180816 — not listed in this catalogue
47B321B · 38 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-BZ620 Tube, Front Brake, NO.1
2018-12 → 2023-10 ended
F850 —
47312 — Tube, Front Brake, NO.2
47312-BZ620 Tube, Front Brake, NO.2
2018-12 → 2023-10 ended
F850 —
47313 — Tube, Front Brake, NO.3
47313-BZ580 Tube, Front Brake, NO.3
2018-12 → 2023-10 ended
F850 —
47313A — Hose, Flexible, NO.1(FOR FRONT)
9004A-94129 note Hose, Flexible, NO.1(FOR FRONT)
2018-12 → 2023-10 ended
F850 —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2018-12 → 2023-10 ended
F850 —
47313J — Hose, Flexible, NO.2(FOR FRONT)
9004A-94129 note Hose, Flexible, NO.2(FOR FRONT)
2018-12 → 2023-10 ended
F850 —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2018-12 → 2023-10 ended
F850 —
47314 — Tube, Front Brake, NO.4
47314-BZ610 Tube, Front Brake, NO.4
2018-12 → 2023-10 ended
F850 —
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
9004A-94118 Hose, Flexible(FOR REAR BRAKE TUBE)
2018-12 → 2019-11 ended
F850 —
9004A-94141 Hose, Flexible(FOR REAR BRAKE TUBE)
2019-12 → 2023-10 ended
F850 —
47321 — Tube, Rear Brake, NO.1
47321-BZ310 Tube, Rear Brake, NO.1
2018-12 → 2023-10 ended
F850 —
47322 — Tube, Rear Brake, NO.2
47322-BZ290 Tube, Rear Brake, NO.2
2018-12 → 2023-10 ended
F850 —
47323 — Tube, Rear Brake, NO.3
47323-BZ230 Tube, Rear Brake, NO.3
2018-12 → 2023-10 ended
F850 —
47324 — Tube, Rear Brake, NO.4
47324-BZ350 Tube, Rear Brake, NO.4
2018-12 → 2023-10 ended
F850 —
47325 — Tube, Rear Brake, NO.5
47325-BZ250 Tube, Rear Brake, NO.5
2018-12 → 2023-10 ended
F850 —
47326 — Tube, Rear Brake, NO.6
47326-BZ280 Tube, Rear Brake, NO.6
2018-12 → 2023-10 ended
F850 —
47371A — Clamp, Brake Tube, NO.1
9004A-46369 Clamp, Brake Tube, NO.1
2018-12 → 2023-10 ended
F850 —
47371B — Clamp, Brake Tube, NO.6
90044-65441 Clamp, Brake Tube, NO.6
2018-12 → 2023-10 ended
F850 —
47371D — Clamp, Brake Tube, NO.8
9004A-46321 Clamp, Brake Tube, NO.8
2018-12 → 2023-10 ended
F850 —
47371E — Clamp, Brake Tube, NO.9
96221-30705 Clamp, Brake Tube, NO.9
2018-12 → 2023-10 ended
F850 —
47371F — Clamp, Brake Tube, NO.10
9004A-46371 Clamp, Brake Tube, NO.10
2018-12 → 2023-10 ended
F850 —
47371H — Clamp, Brake Tube, NO.12
90044-65441 Clamp, Brake Tube, NO.12
2018-12 → 2023-10 ended
F850 —
47372 — Clamp, Brake Tube, NO.2
9004A-46296 Clamp, Brake Tube, NO.2
2018-12 → 2023-10 ended
F850 —
47374B — Clamp, Brake Tube, NO.4
90044-64710 Clamp, Brake Tube, NO.4
2018-12 → 2023-10 ended
F850 —
47375 — Clamp, Brake Tube, NO.5
9004A-46370 Clamp, Brake Tube, NO.5
2018-12 → 2023-10 ended
F850 —
47391 — Way, Brake Tube
44589-BZ020 Way, Brake Tube
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
