Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

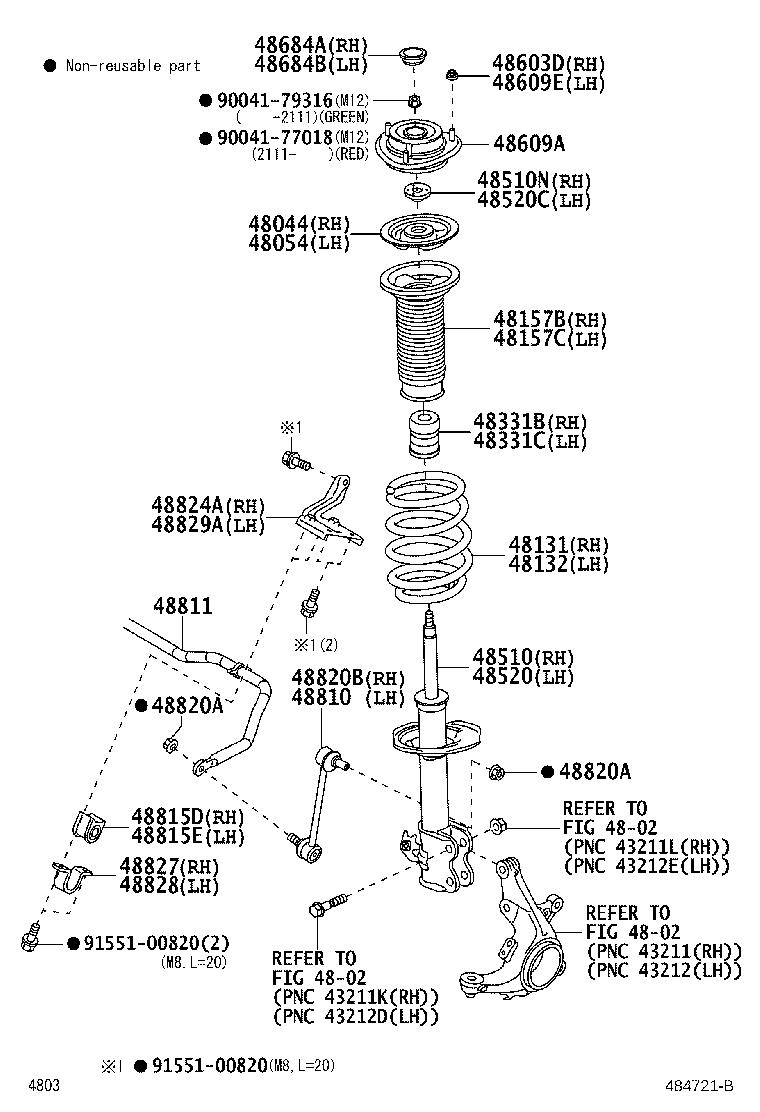

Exploded illustration 484721B 48824A — BRACKET, FRONT STABILIZER, NO.1 RH (1 parts) 48829A — BRACKET, FRONT STABILIZER, NO.1 LH (1 parts) 48820B — LINK ASSY, FRONT STABILIZER, RH (2 parts) 48810 — LINK ASSY, FRONT STABILIZER, LH (2 parts) 48684A — COVER, FRONT SUSPENSION SUPPORT DUST, RH (1 parts) 48684B — COVER, FRONT SUSPENSION SUPPORT DUST, LH (1 parts) 48157B — INSULATOR, FRONT COIL SPRING, UPPER RH (1 parts) 48157C — INSULATOR, FRONT COIL SPRING, UPPER LH (1 parts) 48131 — SPRING, FRONT COIL, RH (2 parts) 48132 — SPRING, FRONT COIL, LH (2 parts) 48510 — ABSORBER ASSY, SHOCK, FRONT RH (1 parts) 48520 — ABSORBER ASSY, SHOCK, FRONT LH (1 parts) 48044 — SEAT SUB-ASSY, FRONT SPRING, NO.1 (1 parts) 48054 — SEAT SUB-ASSY, FRONT SPRING, NO.2 (1 parts) 48609A — SUPPORT SUB-ASSY, FRONT SUSPENSION (1 parts) 48811 — BAR, STABILIZER, FRONT (2 parts) 48815D — BUSH, FRONT STABILIZER BAR, RH (2 parts) 48815E — BUSH, FRONT STABILIZER BAR, LH (2 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 48820A — NUT(FOR FRONT STABILIZER LINK) (2 parts) 48827 — BRACKET, FRONT STABILIZER, NO.2 RH (1 parts) 48828 — BRACKET, FRONT STABILIZER, NO.2 LH (1 parts) 48510N — BUSH(FOR FRONT SHOCK ABSORBER RH) (1 parts) 48520C — BUSH(FOR FRONT SHOCK ABSORBER LH) (1 parts) 48331B — BUMPER, FRONT SPRING, RH (2 parts) 48331C — BUMPER, FRONT SPRING, LH (2 parts) 48603D — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) (1 parts) 48609E — NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) (1 parts) 9155100820 — not listed in this catalogue 9155100820 — not listed in this catalogue 4802 — not listed in this catalogue 4802 — not listed in this catalogue 4802 — not listed in this catalogue 9004179316 — not listed in this catalogue 9004177018 — not listed in this catalogue
484721B · 28 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
48044 — Seat Sub-assy, Front Spring, NO.1
48044-BZ080 note Seat Sub-assy, Front Spring, NO.1
2018-12 → 2023-10 ended
F850 —
48054 — Seat Sub-assy, Front Spring, NO.2
48044-BZ080 note Seat Sub-assy, Front Spring, NO.2
2018-12 → 2023-10 ended
F850 —
48131 — Spring, Front Coil, RH
48131-BZ860 Spring, Front Coil, RH
2018-12 → 2019-11 ended
F850 —
48131-BZA30 Spring, Front Coil, RH
2019-12 → 2023-10 ended
F850 —
48132 — Spring, Front Coil, LH
48131-BZ860 Spring, Front Coil, LH
2018-12 → 2019-11 ended
F850 —
48131-BZA30 Spring, Front Coil, LH
2019-12 → 2023-10 ended
F850 —
48157B — Insulator, Front Coil Spring, Upper RH
48157-BZ040 Insulator, Front Coil Spring, Upper RH
2018-12 → 2023-10 ended
F850 —
48157C — Insulator, Front Coil Spring, Upper LH
48157-BZ040 Insulator, Front Coil Spring, Upper LH
2018-12 → 2023-10 ended
F850 —
48331B — Bumper, Front Spring, RH
48331-BZ110 Bumper, Front Spring, RH
2018-12 → 2019-11 ended
F850 —
48331-BZ180 Bumper, Front Spring, RH
2019-12 → 2023-10 ended
F850 —
48331C — Bumper, Front Spring, LH
48331-BZ110 Bumper, Front Spring, LH
2018-12 → 2019-11 ended
F850 —
48331-BZ180 Bumper, Front Spring, LH
2019-12 → 2023-10 ended
F850 —
48510 — Absorber Assy, Shock, Front RH
48510-BZB90 note Absorber Assy, Shock, Front RH
2018-12 → 2023-10 ended
F850 —
48510N — Bush(FOR FRONT SHOCK ABSORBER RH)
90043-85174 Bush(FOR FRONT SHOCK ABSORBER RH)
2018-12 → 2023-10 ended
F850 —
48520 — Absorber Assy, Shock, Front LH
48520-BZ680 note Absorber Assy, Shock, Front LH
2018-12 → 2023-10 ended
F850 —
48520C — Bush(FOR FRONT SHOCK ABSORBER LH)
90043-85174 Bush(FOR FRONT SHOCK ABSORBER LH)
2018-12 → 2023-10 ended
F850 —
48603D — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
9004A-17256 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
2018-12 → 2023-10 ended
F850 —
48609A — Support Sub-assy, Front Suspension
48609-BZ070 Support Sub-assy, Front Suspension
2018-12 → 2023-10 ended
F850 —
48609E — Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
9004A-17256 Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
2018-12 → 2023-10 ended
F850 —
48684A — Cover, Front Suspension Support Dust, RH
48684-BZ100 Cover, Front Suspension Support Dust, RH
2018-12 → 2023-10 ended
F850 —
48684B — Cover, Front Suspension Support Dust, LH
48684-BZ100 Cover, Front Suspension Support Dust, LH
2018-12 → 2023-10 ended
F850 —
48810 — Link Assy, Front Stabilizer, LH
48820-BZ070 Link Assy, Front Stabilizer, LH
2018-12 → 2019-11 ended
F850 —
48820-BZ110 Link Assy, Front Stabilizer, LH
2019-12 → 2023-10 ended
F850 —
48811 — Bar, Stabilizer, Front
48811-BZ280 Bar, Stabilizer, Front
2018-12 → 2019-11 ended
F850 —
48811-BZ310 Bar, Stabilizer, Front
2019-12 → 2023-10 ended
F850 —
48815D — Bush, Front Stabilizer Bar, RH
48815-BZ290 Bush, Front Stabilizer Bar, RH
2018-12 → 2022-08 ended
F850 —
48815-BZ291 Bush, Front Stabilizer Bar, RH
2022-09 → 2023-10 ended
F850 —
48815E — Bush, Front Stabilizer Bar, LH
48815-BZ290 Bush, Front Stabilizer Bar, LH
2018-12 → 2022-08 ended
F850 —
48815-BZ291 Bush, Front Stabilizer Bar, LH
2022-09 → 2023-10 ended
F850 —
48820A — Nut(FOR FRONT STABILIZER LINK)
90041-70367 Nut(FOR FRONT STABILIZER LINK)
2021-11 → 2023-10 ended
F850 —
90041-78092 Nut(FOR FRONT STABILIZER LINK)
2018-12 → 2021-10 ended
F850 —
48820B — Link Assy, Front Stabilizer, RH
48820-BZ070 Link Assy, Front Stabilizer, RH
2018-12 → 2019-11 ended
F850 —
48820-BZ110 Link Assy, Front Stabilizer, RH
2019-12 → 2023-10 ended
F850 —
48824A — Bracket, Front Stabilizer, NO.1 RH
48809-BZ010 Bracket, Front Stabilizer, NO.1 RH
2018-12 → 2023-10 ended
F850 —
48827 — Bracket, Front Stabilizer, NO.2 RH
48824-BZ010 Bracket, Front Stabilizer, NO.2 RH
2018-12 → 2023-10 ended
F850 —
48828 — Bracket, Front Stabilizer, NO.2 LH
48824-BZ010 Bracket, Front Stabilizer, NO.2 LH
2018-12 → 2023-10 ended
F850 —
48829A — Bracket, Front Stabilizer, NO.1 LH
48807-BZ010 Bracket, Front Stabilizer, NO.1 LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
