Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 484722D 48710Q — BOLT(FOR REAR LOWER CONTROL ARM) (1 parts) 48720 — ARM ASSY, LOWER CONTROL, RH (1 parts) 48730 — ARM ASSY, LOWER CONTROL, LH (1 parts) 48725A — BOLT(FOR LOWER CONTROL ARM) (1 parts) 48710P — NUT, NO.2(FOR REAR LOWER CONTROL ARM) (1 parts) 48710N — NUT, NO.1(FOR REAR LOWER CONTROL ARM) (1 parts) 48231A — SPRING, COIL, REAR RH (2 parts) 48231B — SPRING, COIL, REAR LH (2 parts) 48481 — SEAT, REAR SPRING, UPPER (2 parts) 48341 — BUMPER, REAR SPRING (2 parts) 48482A — SEAT, REAR SPRING, LOWER (2 parts) 9004A11201 — not listed in this catalogue 48770D — NUT(FOR REAR UPPER CONTROL ARM) (1 parts) 48812 — BAR, STABILIZER, REAR (1 parts) 48745A — BOLT, HEXAGON(FOR LATERAL CONTROL ROD) (1 parts) 48770C — BOLT(FOR REAR UPPER CONTROL ARM) (1 parts) 48770A — ARM ASSY, UPPER CONTROL, REAR RH (1 parts) 48790 — ARM ASSY, UPPER CONTROL, REAR LH (1 parts) 48770H — BOLT(FOR REAR UPPER CONTROL ARM RH) (1 parts) 48790B — BOLT(FOR REAR UPPER CONTROL ARM LH) (1 parts) 48830D — LINK ASSY, REAR STABILIZER, RH (1 parts) 48840A — LINK ASSY, REAR STABILIZER, LH (1 parts) 48770E — NUT, NO.1(FOR REAR UPPER CONTROL ARM RH) (1 parts) 48790A — NUT, NO.1(FOR REAR UPPER CONTROL ARM LH) (1 parts) 48815R — BUSH, STABILIZER(FOR REAR) (1 parts) 48824R — BRACKET, STABILIZER(FOR REAR) (1 parts) 48824R — BRACKET, STABILIZER(FOR REAR) (1 parts) 48818 — BUSH, STABILIZER, REAR (1 parts) 48740 — ROD ASSY, REAR LATERAL CONTROL (1 parts) 48530 — ABSORBER ASSY, SHOCK, REAR RH (1 parts) 48540 — ABSORBER ASSY, SHOCK, REAR LH (1 parts) 9004A20039 — not listed in this catalogue 9004A20039 — not listed in this catalogue 9004101716 — not listed in this catalogue 9004177020 — not listed in this catalogue 9004A17255 — not listed in this catalogue 9004A17255 — not listed in this catalogue 9004A17253 — not listed in this catalogue 9004A17255 — not listed in this catalogue 9004A20018 — not listed in this catalogue 33184BZ030 — not listed in this catalogue 9004A10226 — not listed in this catalogue 9004A10226 — not listed in this catalogue 9004A17253 — not listed in this catalogue 9004170367 — not listed in this catalogue

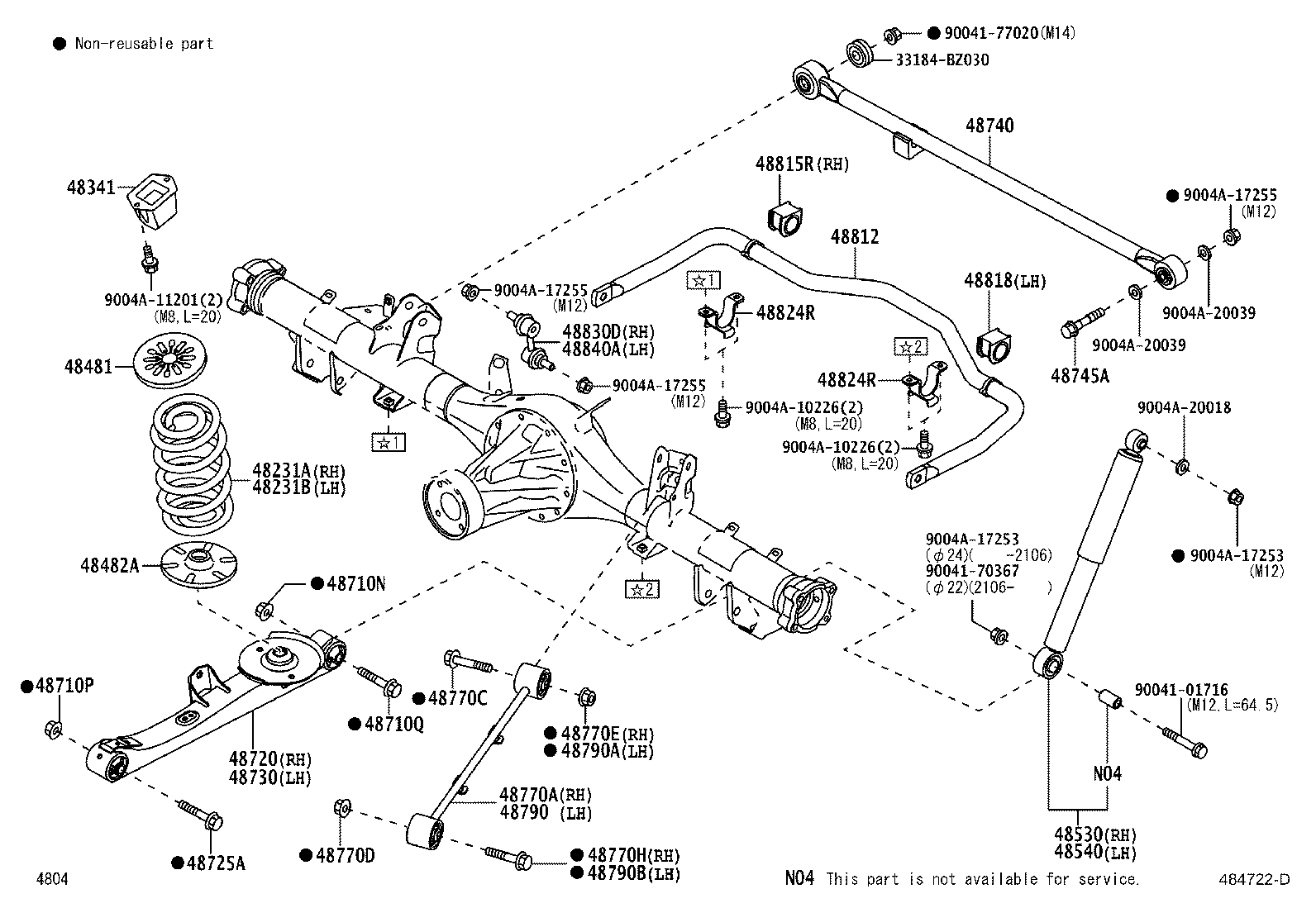

484722D · 30 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
48231A — Spring, Coil, Rear RH
48231-BZ730 Spring, Coil, Rear RH
2018-12 → 2019-11 ended
F850 —
48231-BZ810 Spring, Coil, Rear RH
2019-12 → 2023-10 ended
F850 —
48231B — Spring, Coil, Rear LH
48231-BZ730 Spring, Coil, Rear LH
2018-12 → 2019-11 ended
F850 —
48231-BZ810 Spring, Coil, Rear LH
2019-12 → 2023-10 ended
F850 —
48341 — Bumper, Rear Spring
48341-BZ010 Bumper, Rear Spring
2018-12 → 2019-11 ended
F850 —
48341-BZ110 Bumper, Rear Spring
2019-12 → 2023-10 ended
F850 —
48481 — Seat, Rear Spring, Upper
48481-BZ010 Seat, Rear Spring, Upper
2018-12 → 2019-11 ended
F850 —
48481-BZ080 Seat, Rear Spring, Upper
2019-12 → 2023-10 ended
F850 —
48482A — Seat, Rear Spring, Lower
48482-BZ010 Seat, Rear Spring, Lower
2018-12 → 2019-11 ended
F850 —
48482-BZ100 Seat, Rear Spring, Lower
2019-12 → 2023-10 ended
F850 —
48530 — Absorber Assy, Shock, Rear RH
48530-BZ220 note Absorber Assy, Shock, Rear RH
2018-12 → 2023-10 ended
F850 —
48540 — Absorber Assy, Shock, Rear LH
48530-BZ220 note Absorber Assy, Shock, Rear LH
2018-12 → 2023-10 ended
F850 —
48710N — Nut, NO.1(FOR REAR LOWER CONTROL ARM)
9004A-17254 Nut, NO.1(FOR REAR LOWER CONTROL ARM)
2018-12 → 2023-10 ended
F850 —
48710P — Nut, NO.2(FOR REAR LOWER CONTROL ARM)
9004A-17257 Nut, NO.2(FOR REAR LOWER CONTROL ARM)
2018-12 → 2023-10 ended
F850 —
48710Q — Bolt(FOR REAR LOWER CONTROL ARM)
9004A-10159 Bolt(FOR REAR LOWER CONTROL ARM)
2018-12 → 2023-10 ended
F850 —
48720 — Arm Assy, Lower Control, RH
48720-BZ090 Arm Assy, Lower Control, RH
2018-12 → 2023-10 ended
F850 —
48725A — Bolt(FOR LOWER CONTROL ARM)
9004A-10149 Bolt(FOR LOWER CONTROL ARM)
2018-12 → 2023-10 ended
F850 —
48730 — Arm Assy, Lower Control, LH
48730-BZ010 Arm Assy, Lower Control, LH
2018-12 → 2023-10 ended
F850 —
48740 — Rod Assy, Rear Lateral Control
48740-BZ130 Rod Assy, Rear Lateral Control
2018-12 → 2023-10 ended
F850 —
48745A — Bolt, Hexagon(FOR LATERAL CONTROL ROD)
9004A-10160 Bolt, Hexagon(FOR LATERAL CONTROL ROD)
2018-12 → 2023-10 ended
F850 —
48770A — Arm Assy, Upper Control, Rear RH
48710-BZ330 Arm Assy, Upper Control, Rear RH
2018-12 → 2023-10 ended
F850 —
48770C — Bolt(FOR REAR UPPER CONTROL ARM)
9004A-10157 Bolt(FOR REAR UPPER CONTROL ARM)
2018-12 → 2023-10 ended
F850 —
48770D — Nut(FOR REAR UPPER CONTROL ARM)
9004A-17257 Nut(FOR REAR UPPER CONTROL ARM)
2018-12 → 2023-10 ended
F850 —
48770E — Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
9004A-17254 Nut, NO.1(FOR REAR UPPER CONTROL ARM RH)
2018-12 → 2023-10 ended
F850 —
48770H — Bolt(FOR REAR UPPER CONTROL ARM RH)
9004A-10152 Bolt(FOR REAR UPPER CONTROL ARM RH)
2018-12 → 2023-10 ended
F850 —
48790 — Arm Assy, Upper Control, Rear LH
48710-BZ330 Arm Assy, Upper Control, Rear LH
2018-12 → 2023-10 ended
F850 —
48790A — Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
9004A-17254 Nut, NO.1(FOR REAR UPPER CONTROL ARM LH)
2018-12 → 2023-10 ended
F850 —
48790B — Bolt(FOR REAR UPPER CONTROL ARM LH)
9004A-10152 Bolt(FOR REAR UPPER CONTROL ARM LH)
2018-12 → 2023-10 ended
F850 —
48812 — Bar, Stabilizer, Rear
48811-BZ260 Bar, Stabilizer, Rear
2018-12 → 2023-10 ended
F850 —
48815R — Bush, Stabilizer(FOR REAR)
48815-BZ270 note Bush, Stabilizer(FOR REAR)
2018-12 → 2023-10 ended
F850 —
48818 — Bush, Stabilizer, Rear
48815-BZ270 note Bush, Stabilizer, Rear
2018-12 → 2023-10 ended
F850 —
48824R — Bracket, Stabilizer(FOR REAR)
48824-BZ250 Bracket, Stabilizer(FOR REAR)
2018-12 → 2023-10 ended
F850 —
48830D — Link Assy, Rear Stabilizer, RH
48821-BZ030 Link Assy, Rear Stabilizer, RH
2018-12 → 2023-10 ended
F850 —
48840A — Link Assy, Rear Stabilizer, LH
48821-BZ030 Link Assy, Rear Stabilizer, LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
