Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

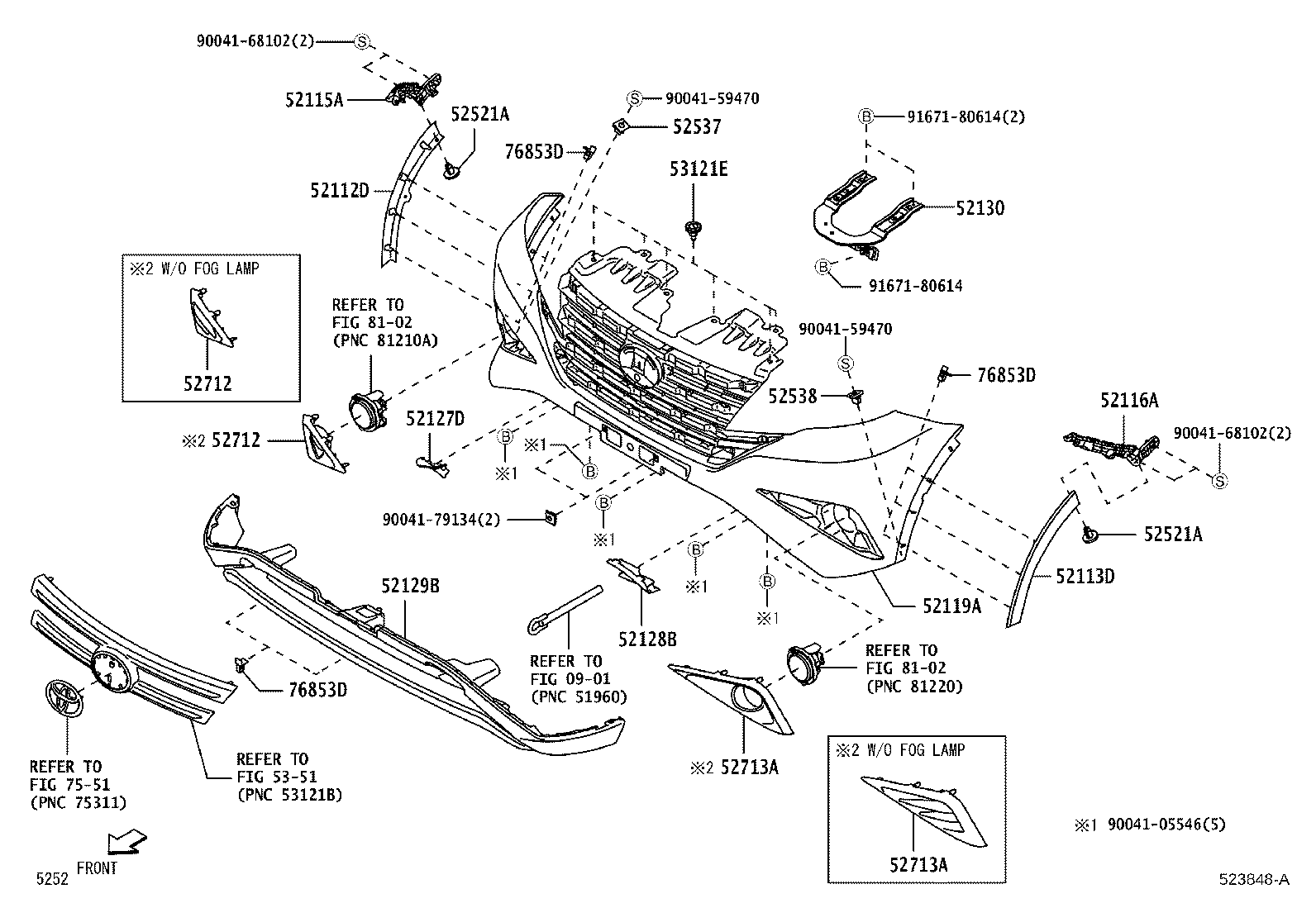

Exploded illustration 523848A 9004105546 — not listed in this catalogue 9004179134 — not listed in this catalogue 52537 — RETAINER, FRONT BUMPER END, RH (1 parts) 52119A — COVER, FRONT BUMPER (1 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (1 parts) 52712 — MOULDING, FRONT BUMPER SIDE, RH (2 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (1 parts) 52115A — SUPPORT, FRONT BUMPER SIDE, RH (1 parts) 52521A — CLIP(FOR FRONT BUMPER RETAINER) (1 parts) 53121E — CLIP(FOR FRONT BUMPER), NO.1 (1 parts) 52521A — CLIP(FOR FRONT BUMPER RETAINER) (1 parts) 52538 — RETAINER, FRONT BUMPER END, LH (1 parts) 52129B — COVER, FRONT BUMPER, LOWER (1 parts) 9004159470 — not listed in this catalogue 9004159470 — not listed in this catalogue 52116A — SUPPORT, FRONT BUMPER SIDE, LH (1 parts) 52713A — MOULDING, FRONT BUMPER SIDE, LH (2 parts) 7551 — not listed in this catalogue 0901 — not listed in this catalogue 8102 — not listed in this catalogue 8102 — not listed in this catalogue 5351 — not listed in this catalogue 52112D — EXTENSION, FRONT BUMPER, RH (1 parts) 52113D — EXTENSION, FRONT BUMPER, LH (1 parts) 76853D — RETAINER, FRONT SPOILER, NO.1 (1 parts) 76853D — RETAINER, FRONT SPOILER, NO.1 (1 parts) 76853D — RETAINER, FRONT SPOILER, NO.1 (1 parts) 9004168102 — not listed in this catalogue 9004168102 — not listed in this catalogue 52713A — MOULDING, FRONT BUMPER SIDE, LH (2 parts) 52712 — MOULDING, FRONT BUMPER SIDE, RH (2 parts) 9167180614 — not listed in this catalogue 52130 — BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH (1 parts) 9167180614 — not listed in this catalogue
523848A · 21 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
52112D — Extension, Front Bumper, RH
52112-BZ130 Extension, Front Bumper, RH
2018-12 → 2023-10 ended
F850 —
52113D — Extension, Front Bumper, LH
52113-BZ110 Extension, Front Bumper, LH
2018-12 → 2023-10 ended
F850 —
52115A — Support, Front Bumper Side, RH
52115-BZ210 Support, Front Bumper Side, RH
2018-12 → 2023-10 ended
F850 —
52116A — Support, Front Bumper Side, LH
52116-BZ170 Support, Front Bumper Side, LH
2018-12 → 2023-10 ended
F850 —
52119A — Cover, Front Bumper
52119-BZP20 Cover, Front Bumper
2018-12 → 2023-10 ended
F850 —
52127D — Cover, Front Bumper Hole, RH
52127-BZ780 Cover, Front Bumper Hole, RH
2018-12 → 2023-10 ended
F850 —
52128B — Cover, Front Bumper Hole, LH
52128-BZ300 Cover, Front Bumper Hole, LH
2018-12 → 2023-10 ended
F850 —
52129B — Cover, Front Bumper, Lower
52129-BZ040 Cover, Front Bumper, Lower
2018-12 → 2023-10 ended
F850 —
52130 — Bracket Assy, Front Bumper Side Mounting, RH
52130-BZ060 Bracket Assy, Front Bumper Side Mounting, RH
2018-12 → 2023-10 ended
F850 —
52521A — Clip(FOR FRONT BUMPER RETAINER)
90044-67555 Clip(FOR FRONT BUMPER RETAINER)
2018-12 → 2023-10 ended
F850 —
52537 — Retainer, Front Bumper End, RH
52116-B2480 Retainer, Front Bumper End, RH
2018-12 → 2023-10 ended
F850 —
52538 — Retainer, Front Bumper End, LH
52116-B2480 Retainer, Front Bumper End, LH
2018-12 → 2023-10 ended
F850 —
52712 — Moulding, Front Bumper Side, RH
52712-BZ250 Moulding, Front Bumper Side, RH
2018-12 → 2023-10 ended
F850 HI —
52712-BZ270 Moulding, Front Bumper Side, RH
2018-12 → 2023-10 ended
F850 EXT —
52713A — Moulding, Front Bumper Side, LH
52713-BZ250 Moulding, Front Bumper Side, LH
2018-12 → 2023-10 ended
F850 HI —
52713-BZ270 Moulding, Front Bumper Side, LH
2018-12 → 2023-10 ended
F850 EXT —
53121E — Clip(FOR FRONT BUMPER), NO.1
9004A-46341 Clip(FOR FRONT BUMPER), NO.1
2018-12 → 2023-10 ended
F850 —
76853D — Retainer, Front Spoiler, NO.1
76854-BZ010 Retainer, Front Spoiler, NO.1
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
