Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

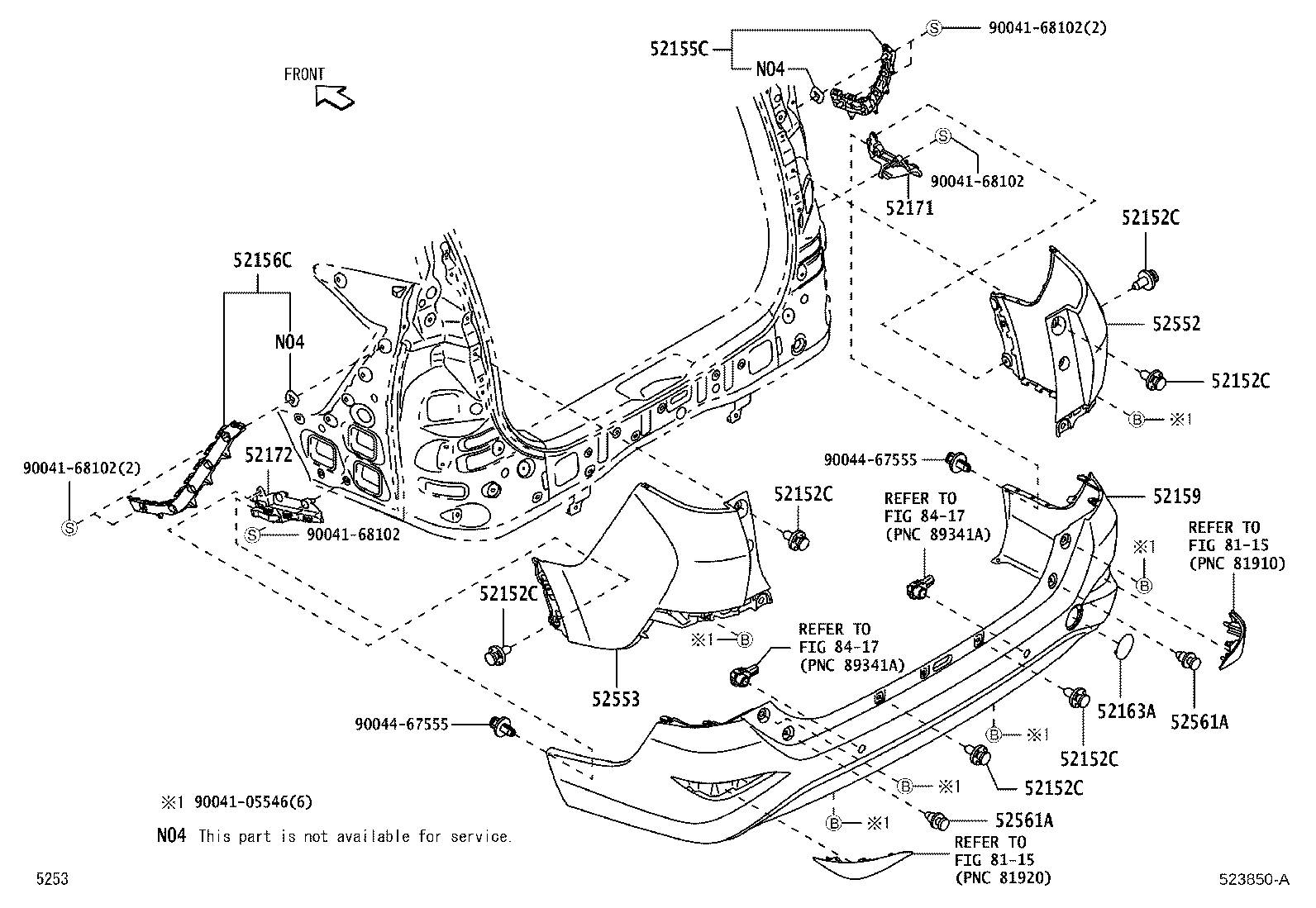

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52152C — Clip, Rear Bumper Side | ||||
| 9004A-46341 |
Clip, Rear Bumper Side
2018-12 → 2023-10
ended
|
F850 | — | |
| 52155C — Support, Rear Bumper Side, NO.1 RH | ||||
| 52155-BZ220 |
Support, Rear Bumper Side, NO.1 RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 52156C — Support, Rear Bumper Side, NO.1 LH | ||||
| 52156-BZ240 |
Support, Rear Bumper Side, NO.1 LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 52159 — Cover, Rear Bumper | ||||
| 52159-BZK20 |
Cover, Rear Bumper
2018-12 → 2023-10
ended
|
F850 | — | |
| 52163A — Plate, Rear Bumper, RH | ||||
| 52163-BZ020 |
Plate, Rear Bumper, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 52171 — Retainer, Rear Bumper Side, RH | ||||
| 52565-BZ040 |
Retainer, Rear Bumper Side, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 52172 — Retainer, Rear Bumper Side, LH | ||||
| 52566-BZ040 |
Retainer, Rear Bumper Side, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 52552 — Filler, Rear Bumper, RH | ||||
| 52552-BZ070 |
Filler, Rear Bumper, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 52553 — Filler, Rear Bumper, LH | ||||
| 52553-BZ070 |
Filler, Rear Bumper, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 52561A — Clip(FOR REAR BUMPER RETAINER) | ||||
| 90044-67567 |
Clip(FOR REAR BUMPER RETAINER)
2018-12 → 2019-07
ended
|
F850 | — | |
| 9004A-46334 |
Clip(FOR REAR BUMPER RETAINER)
2019-08 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
