Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

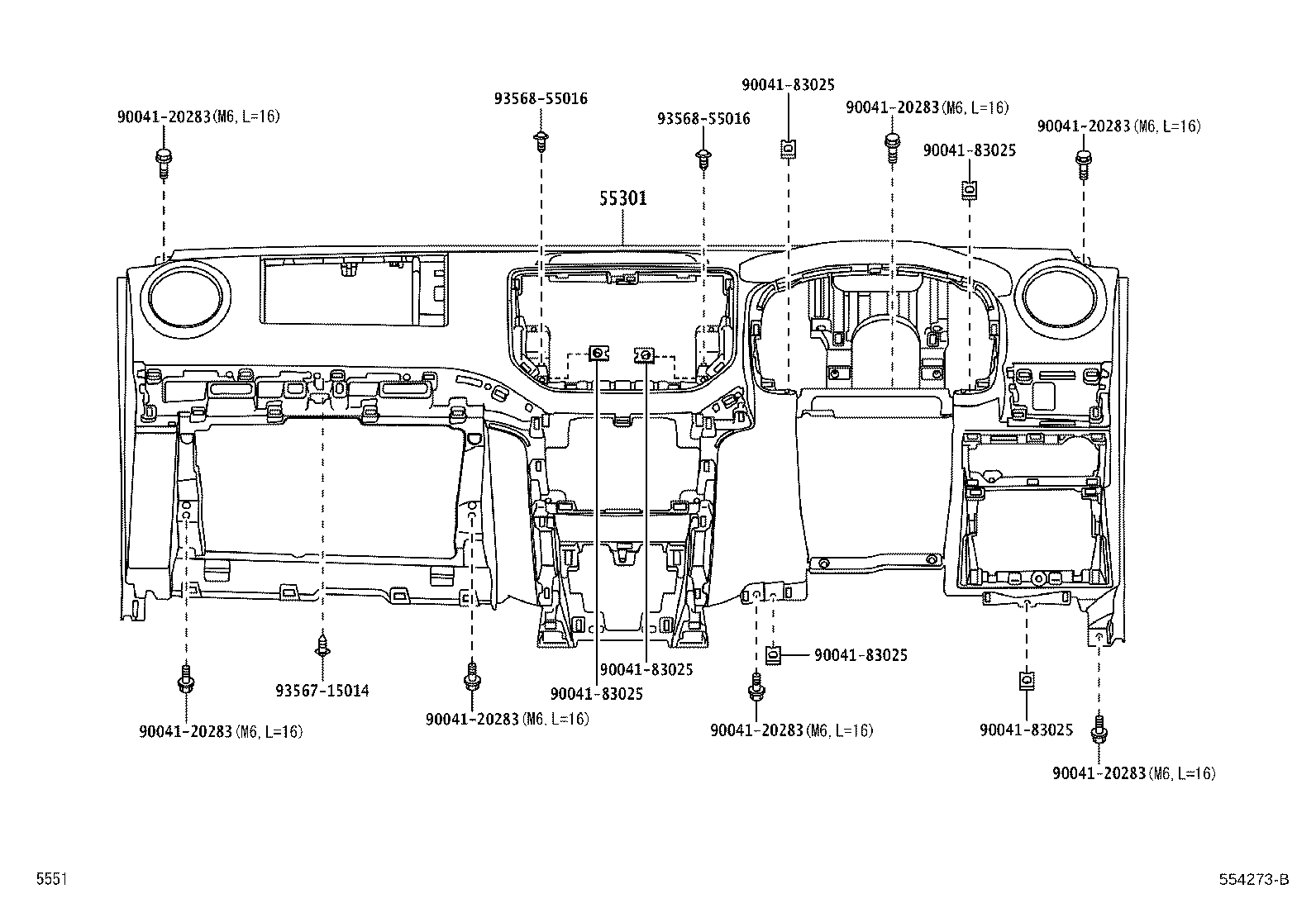

Exploded illustration 554273B 55301 — PANEL SUB-ASSY, INSTRUMENT (1 parts) 9004183025 — not listed in this catalogue 9004183025 — not listed in this catalogue 9004183025 — not listed in this catalogue 9004183025 — not listed in this catalogue 9004183025 — not listed in this catalogue 9004183025 — not listed in this catalogue 9356715014 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855016 — not listed in this catalogue 9004120283 — not listed in this catalogue 9004120283 — not listed in this catalogue 9004120283 — not listed in this catalogue 9004120283 — not listed in this catalogue 9004120283 — not listed in this catalogue 9004120283 — not listed in this catalogue 9004120283 — not listed in this catalogue
554273B · 1 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
1 parts on this figure
Part number Description Fitment Price
55301 — Panel Sub-assy, Instrument
55311-BZ660-C0 note Panel Sub-assy, Instrument
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
