Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

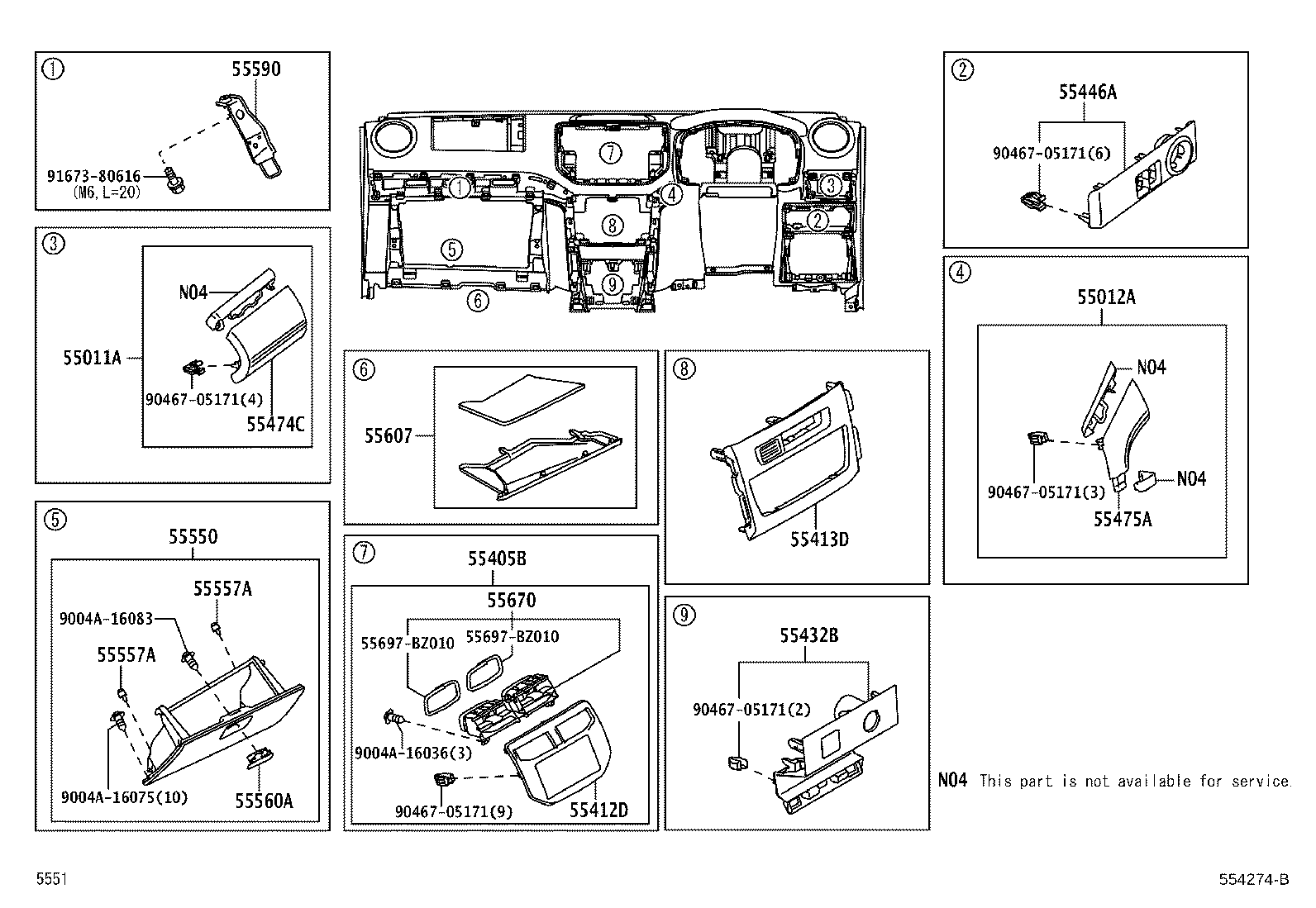

Exploded illustration 554274B 55405B — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER (1 parts) 55413D — PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER (1 parts) 55432B — PANEL, INSTRUMENT PANEL FINISH, LOWER (1 parts) 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (1 parts) 55412D — PANEL, INSTRUMENT CLUSTER FINISH, CENTER (1 parts) 55446A — BASE, SWITCH HOLE, NO.1 (1 parts) 55475A — GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 (1 parts) 55012A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 (1 parts) 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 9046705171 — not listed in this catalogue 9004A16036 — not listed in this catalogue 55697BZ010 — not listed in this catalogue 55697BZ010 — not listed in this catalogue 55590 — PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER (1 parts) 55474C — GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 (1 parts) 55011A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 9046705171 — not listed in this catalogue 9167380616 — not listed in this catalogue 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55557A — CUSHION, GLOVE COMPARTMENT DOOR CHECK (1 parts) 55560A — LOCK ASSY, GLOVE COMPARTMENT DOOR (1 parts) 55550 — DOOR ASSY, GLOVE COMPARTMENT (1 parts) 9004A16083 — not listed in this catalogue 9004A16075 — not listed in this catalogue 55607 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 (2 parts)
554274B · 16 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
55011A — Garnish Sub-assy, Instrument Panel, NO.1
55011-BZ010-E0 note Garnish Sub-assy, Instrument Panel, NO.1
2018-12 → 2023-10 ended
F850 —
55012A — Garnish Sub-assy, Instrument Panel, NO.2
55012-BZ010-E0 note Garnish Sub-assy, Instrument Panel, NO.2
2018-12 → 2023-10 ended
F850 —
55405B — Panel Sub-assy, Instrument Cluster Finish, Center
55405-BZ880-C0 note Panel Sub-assy, Instrument Cluster Finish, Center
2018-12 → 2023-10 ended
F850 —
55412D — Panel, Instrument Cluster Finish, Center
55412-BZA40-C1 note Panel, Instrument Cluster Finish, Center
2018-12 → 2023-10 ended
F850 —
55413D — Panel, Instrument Cluster Finish, Center Lower
55413-BZ480-C1 note Panel, Instrument Cluster Finish, Center Lower
2018-12 → 2023-10 ended
F850 —
55432B — Panel, Instrument Panel Finish, Lower
55432-BZ170-C0 note Panel, Instrument Panel Finish, Lower
2018-12 → 2023-10 ended
F850 —
55446A — Base, Switch Hole, NO.1
55446-BZ100-C0 note Base, Switch Hole, NO.1
2018-12 → 2023-10 ended
F850 —
55474C — Garnish, Instrument Cluster Finish Panel, NO.1
55474-BZ100-E0 note Garnish, Instrument Cluster Finish Panel, NO.1
2018-12 → 2023-10 ended
F850 —
55475A — Garnish, Instrument Cluster Finish Panel, NO.2
55475-BZ040-E0 note Garnish, Instrument Cluster Finish Panel, NO.2
2018-12 → 2023-10 ended
F850 —
55550 — Door Assy, Glove Compartment
55550-BZ150-C0 note Door Assy, Glove Compartment
2018-12 → 2023-10 ended
F850 —
55557A — Cushion, Glove Compartment Door Check
55557-B2040 Cushion, Glove Compartment Door Check
2018-12 → 2023-10 ended
F850 —
55560A — Lock Assy, Glove Compartment Door
55560-BZ050-C0 note Lock Assy, Glove Compartment Door
2018-12 → 2023-10 ended
F850 —
55590 — Plate Assy, Grove Compartment Door Lock Striker
55590-BZ040 Plate Assy, Grove Compartment Door Lock Striker
2018-12 → 2023-10 ended
F850 —
55607 — Cover Sub-assy, Instrument Panel Under, NO.2
55607-BZ020-C0 note Cover Sub-assy, Instrument Panel Under, NO.2
2018-12 → 2019-01 ended
F850 —
55642-BZ122-C1 note Cover Sub-assy, Instrument Panel Under, NO.2
2019-01 → 2023-10 ended
F850 —
55670 — Register Assy, Instrument Panel, NO.3
55670-BZ260-C0 note Register Assy, Instrument Panel, NO.3
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
