Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

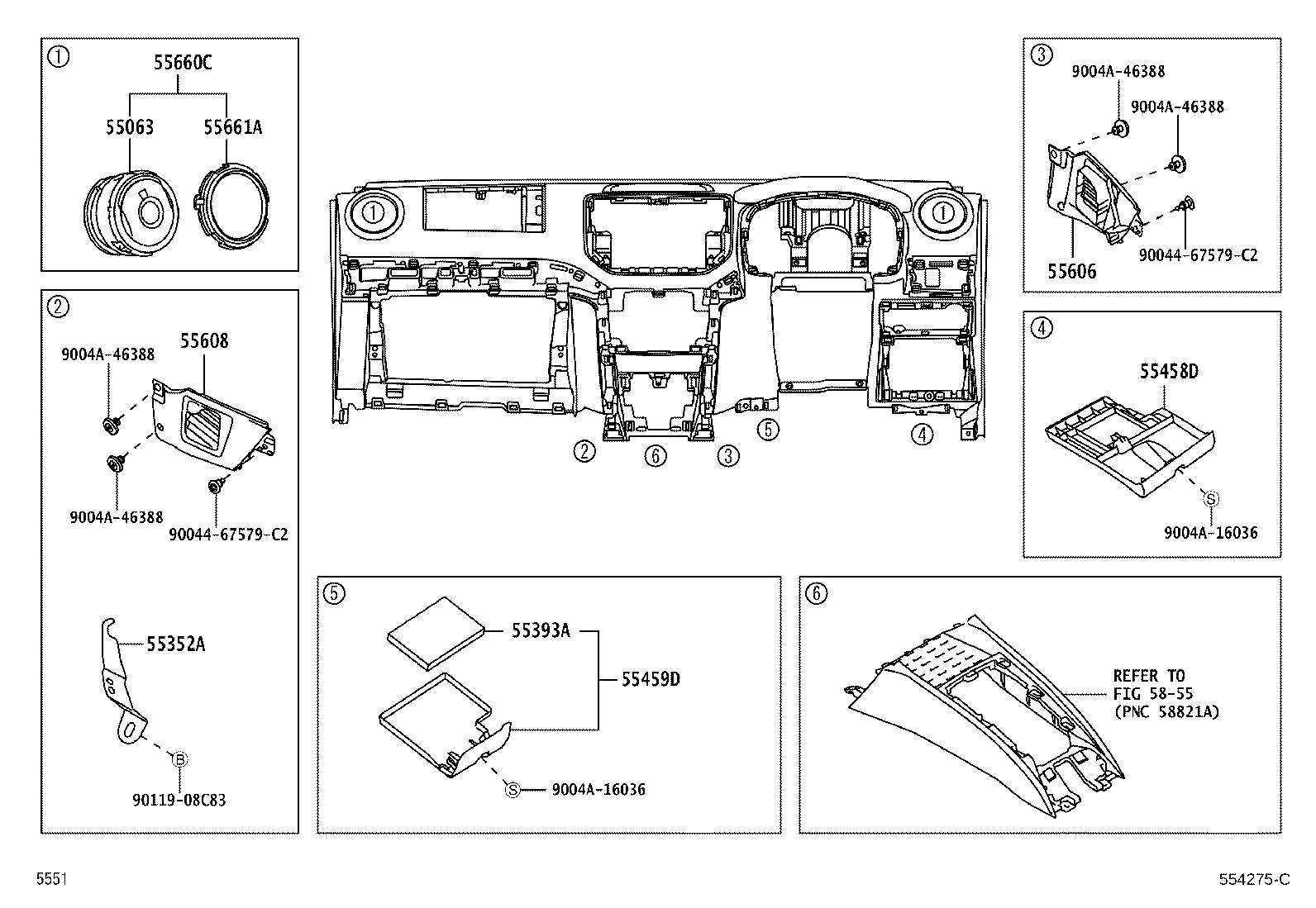

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55063 — Register Sub-assy, Instrument, NO.3 | ||||
| 55063-BZ070-C0 note |
Register Sub-assy, Instrument, NO.3
2018-12 → 2023-10
ended
|
F850 | — | |
| 55352A — Brace, Instrument Panel TO Floor, NO.2 | ||||
| 55352-BZ070 |
Brace, Instrument Panel TO Floor, NO.2
2018-12 → 2023-10
ended
|
F850 | — | |
| 55393A — Cushion, Instrument Panel, Lower NO.3 | ||||
| 55393-BZ020 |
Cushion, Instrument Panel, Lower NO.3
2018-12 → 2023-10
ended
|
F850 | — | |
| 55458D — Cover, Instrument Lower, RH | ||||
| 55458-BZ040-C0 note |
Cover, Instrument Lower, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 55459D — Cover, Instrument, Lower LH | ||||
| 55459-BZ040-C0 note |
Cover, Instrument, Lower LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55641-BZ230-C0 note |
Cover Sub-assy, Instrument Panel Under, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
| 55608 — Cover Sub-assy, Instrument Panel Under, NO.3 | ||||
| 55646-BZ130-C0 note |
Cover Sub-assy, Instrument Panel Under, NO.3
2018-12 → 2023-10
ended
|
F850 | — | |
| 55660C — Register Assy, Instrument Panel | ||||
| 55650-BZ280-C0 note |
Register Assy, Instrument Panel
2018-12 → 2023-10
ended
|
F850 | — | |
| 55661A — Bezel, Instrument Panel Register | ||||
| 55663-BZ020-B0 note |
Bezel, Instrument Panel Register
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
