Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

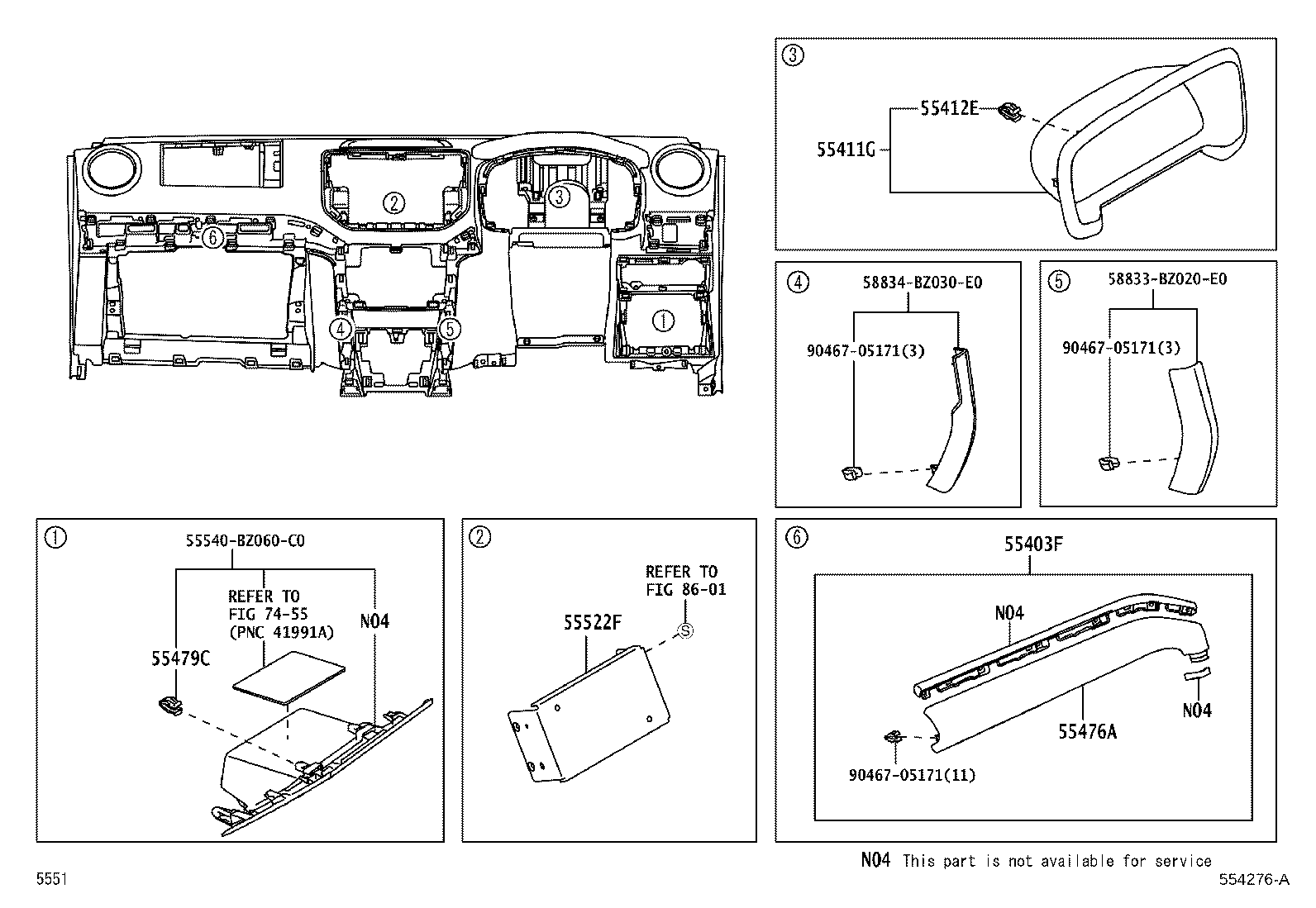

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55403F — Panel Sub-assy, Instrument Panel Finish | ||||
| 55044-BZ030-E0 note |
Panel Sub-assy, Instrument Panel Finish
2018-12 → 2023-10
ended
|
F850 | — | |
| 55411G — Panel, Instrument Cluster Finish, NO.1 | ||||
| 55411-BZ300-C0 note |
Panel, Instrument Cluster Finish, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
| 55412E — Clip, Panel, Instrument Cluster Finish, End | ||||
| 90467-05171 |
Clip, Panel, Instrument Cluster Finish, End
2018-12 → 2023-10
ended
|
F850 | — | |
| 55476A — Garnish, Instrument Cluster Finish Panel, NO.3 | ||||
| 55476-BZ060-E0 note |
Garnish, Instrument Cluster Finish Panel, NO.3
2018-12 → 2023-10
ended
|
F850 | — | |
| 55479C — Clip(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-05171 |
Clip(FOR INSTRUMENT LOWER COVER)
2018-12 → —
|
F850 | — | |
| 55522F — Cover, Radio Tuner Opening | ||||
| 55522-BZ080 |
Cover, Radio Tuner Opening
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
