Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

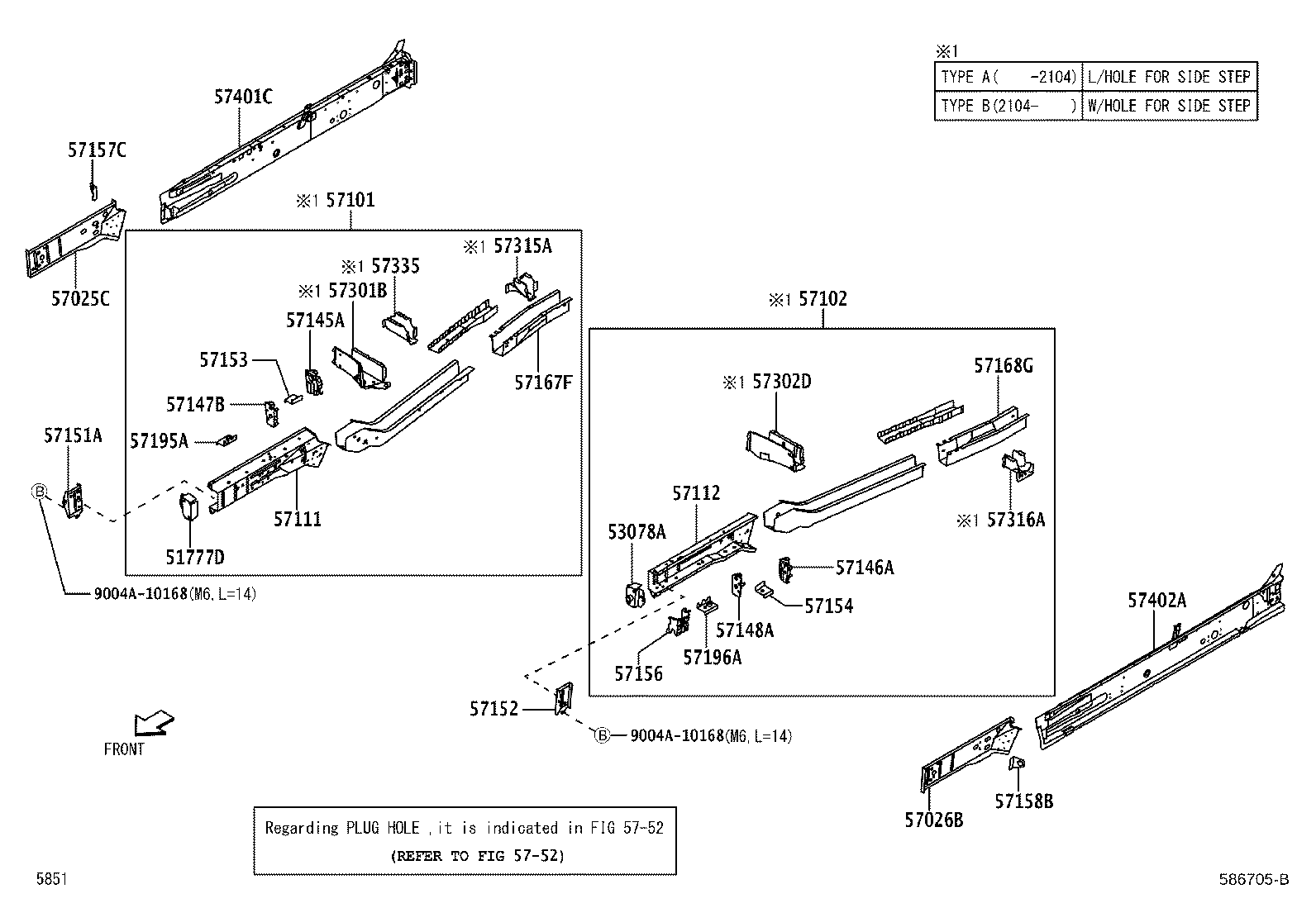

Exploded illustration 586705B 57157C — BRACKET, FLEXIBLE HOSE, FRONT RH (1 parts) 57158B — BRACKET, FLEXIBLE HOSE, FRONT LH (1 parts) 57025C — MEMBER SUB-ASSY, FRONT SIDE, OUTER RH (1 parts) 57026B — MEMBER SUB-ASSY, FRONT SIDE, OUTER LH (1 parts) 57401C — MEMBER SUB-ASSY, FLOOR SIDE, INNER RH (1 parts) 57402A — MEMBER SUB-ASSY, FLOOR SIDE, INNER LH (1 parts) 57151A — REINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH (1 parts) 57152 — REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH (1 parts) 57147B — PLATE, FRONT SIDE MEMBER, REAR RH (1 parts) 57148A — PLATE, FRONT SIDE MEMBER, REAR LH (1 parts) 57153 — REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH (1 parts) 57195A — REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH (1 parts) 57156 — REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH (1 parts) 57196A — REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH (2 parts) 53078A — EXTENSION SUB-ASSY, FRONT FENDER APRON, LH (1 parts) 57154 — REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH (1 parts) 57316A — OUTRIGGER SUB-ASSY, NO.3 LH (2 parts) 57145A — REINFORCEMENT, FRONT SIDE MEMBER, REAR RH (1 parts) 57146A — REINFORCEMENT, FRONT SIDE MEMBER, REAR LH (1 parts) 57335 — OUTRIGGER, NO.2 FRONT RH (2 parts) 57301B — OUTRIGGER SUB-ASSY, NO.1 RH (2 parts) 57302D — OUTRIGGER SUB-ASSY, NO.1 LH (2 parts) 57167F — REINFORCEMENT, FRONT CROSSMEMBER SIDE, RH (1 parts) 57168G — MEMBER, FRONT FLOOR, LH (1 parts) 57111 — MEMBER, FRONT SIDE, RH (1 parts) 57112 — MEMBER, FRONT SIDE, LH (1 parts) 51777D — ARM, FRONT STEP, RH (1 parts) 57315A — OUTRIGGER SUB-ASSY, NO.3 RH (2 parts) 57101 — MEMBER SUB-ASSY, FRONT SIDE, RH (2 parts) 57102 — MEMBER SUB-ASSY, FRONT SIDE, LH (2 parts) 9004A10168 — not listed in this catalogue 9004A10168 — not listed in this catalogue 5752 — not listed in this catalogue
586705B · 30 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
51777D — Arm, Front Step, RH
52141-BZ060 Arm, Front Step, RH
2018-12 → 2023-10 ended
F850 —
53078A — Extension Sub-assy, Front Fender Apron, LH
53078-BZ090 Extension Sub-assy, Front Fender Apron, LH
2018-12 → 2023-10 ended
F850 —
57025C — Member Sub-assy, Front Side, Outer RH
57113-BZ020 Member Sub-assy, Front Side, Outer RH
2018-12 → 2023-10 ended
F850 —
57026B — Member Sub-assy, Front Side, Outer LH
57114-BZ030 Member Sub-assy, Front Side, Outer LH
2018-12 → 2023-10 ended
F850 —
57101 — Member Sub-assy, Front Side, RH
57101-BZ580 note Member Sub-assy, Front Side, RH
2018-12 → 2021-04 ended
F850 —
57101-BZ840 note Member Sub-assy, Front Side, RH
2021-04 → 2023-10 ended
F850 —
57102 — Member Sub-assy, Front Side, LH
57102-BZ660 note Member Sub-assy, Front Side, LH
2018-12 → 2021-04 ended
F850 —
57102-BZA10 note Member Sub-assy, Front Side, LH
2021-04 → 2023-10 ended
F850 —
57111 — Member, Front Side, RH
57111-BZ211 Member, Front Side, RH
2018-12 → 2023-10 ended
F850 —
57112 — Member, Front Side, LH
57112-BZ231 Member, Front Side, LH
2018-12 → 2023-10 ended
F850 —
57145A — Reinforcement, Front Side Member, Rear RH
51501-BZ060 Reinforcement, Front Side Member, Rear RH
2018-12 → 2023-10 ended
F850 —
57146A — Reinforcement, Front Side Member, Rear LH
51502-BZ070 Reinforcement, Front Side Member, Rear LH
2018-12 → 2023-10 ended
F850 —
57147B — Plate, Front Side Member, Rear RH
57147-BZ010 Plate, Front Side Member, Rear RH
2018-12 → 2023-10 ended
F850 —
57148A — Plate, Front Side Member, Rear LH
57148-BZ010 Plate, Front Side Member, Rear LH
2018-12 → 2023-10 ended
F850 —
57151A — Reinforcement, Front Side Member, NO.1 RH
57151-BZ110 Reinforcement, Front Side Member, NO.1 RH
2018-12 → 2023-10 ended
F850 —
57152 — Reinforcement, Front Side Member, NO.1 LH
57152-BZ130 Reinforcement, Front Side Member, NO.1 LH
2018-12 → 2023-10 ended
F850 —
57153 — Reinforcement, Front Side Member, NO.2 RH
57153-BZ020 Reinforcement, Front Side Member, NO.2 RH
2018-12 → 2023-10 ended
F850 —
57154 — Reinforcement, Front Side Member, NO.2 LH
57154-BZ070 Reinforcement, Front Side Member, NO.2 LH
2018-12 → 2023-10 ended
F850 —
57156 — Reinforcement, Front Side Member, NO.3, LH
57156-BZ020 Reinforcement, Front Side Member, NO.3, LH
2018-12 → 2023-10 ended
F850 —
57157C — Bracket, Flexible Hose, Front RH
57157-BZ010 Bracket, Flexible Hose, Front RH
2018-12 → 2023-10 ended
F850 —
57158B — Bracket, Flexible Hose, Front LH
57158-BZ010 Bracket, Flexible Hose, Front LH
2018-12 → 2023-10 ended
F850 —
57167F — Reinforcement, Front Crossmember Side, RH
57167-BZ011 Reinforcement, Front Crossmember Side, RH
2018-12 → 2023-10 ended
F850 —
57168G — Member, Front Floor, LH
57168-BZ110 Member, Front Floor, LH
2018-12 → 2023-10 ended
F850 —
57195A — Reinforcement, Front Side Member, Front RH
57195-BZ050 Reinforcement, Front Side Member, Front RH
2018-12 → 2023-10 ended
F850 —
57196A — Reinforcement, Front Side Member, Front LH
57196-BZ030 Reinforcement, Front Side Member, Front LH
2018-12 → 2021-04 ended
F850 —
57196-BZ030 Reinforcement, Front Side Member, Front LH
2021-05 → 2023-10 ended
F850 —
57301B — Outrigger Sub-assy, NO.1 RH
57301-BZ090 note Outrigger Sub-assy, NO.1 RH
2018-12 → 2021-04 ended
F850 —
57301-BZ140 note Outrigger Sub-assy, NO.1 RH
2021-04 → 2023-10 ended
F850 —
57302D — Outrigger Sub-assy, NO.1 LH
57302-BZ090 note Outrigger Sub-assy, NO.1 LH
2018-12 → 2021-04 ended
F850 —
57302-BZ140 note Outrigger Sub-assy, NO.1 LH
2021-04 → 2023-10 ended
F850 —
57315A — Outrigger Sub-assy, NO.3 RH
57307-BZ010 note Outrigger Sub-assy, NO.3 RH
2018-12 → 2021-04 ended
F850 —
57307-BZ020 note Outrigger Sub-assy, NO.3 RH
2021-04 → 2023-10 ended
F850 —
57316A — Outrigger Sub-assy, NO.3 LH
57308-BZ010 note Outrigger Sub-assy, NO.3 LH
2018-12 → 2021-04 ended
F850 —
57308-BZ020 note Outrigger Sub-assy, NO.3 LH
2021-04 → 2023-10 ended
F850 —
57335 — Outrigger, NO.2 Front RH
57335-BZ040 note Outrigger, NO.2 Front RH
2018-12 → 2021-04 ended
F850 —
57335-BZ050 note Outrigger, NO.2 Front RH
2021-04 → 2023-10 ended
F850 —
57401C — Member Sub-assy, Floor Side, Inner RH
57401-BZ370 Member Sub-assy, Floor Side, Inner RH
2018-12 → 2023-10 ended
F850 —
57402A — Member Sub-assy, Floor Side, Inner LH
57402-BZ370 Member Sub-assy, Floor Side, Inner LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
