Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

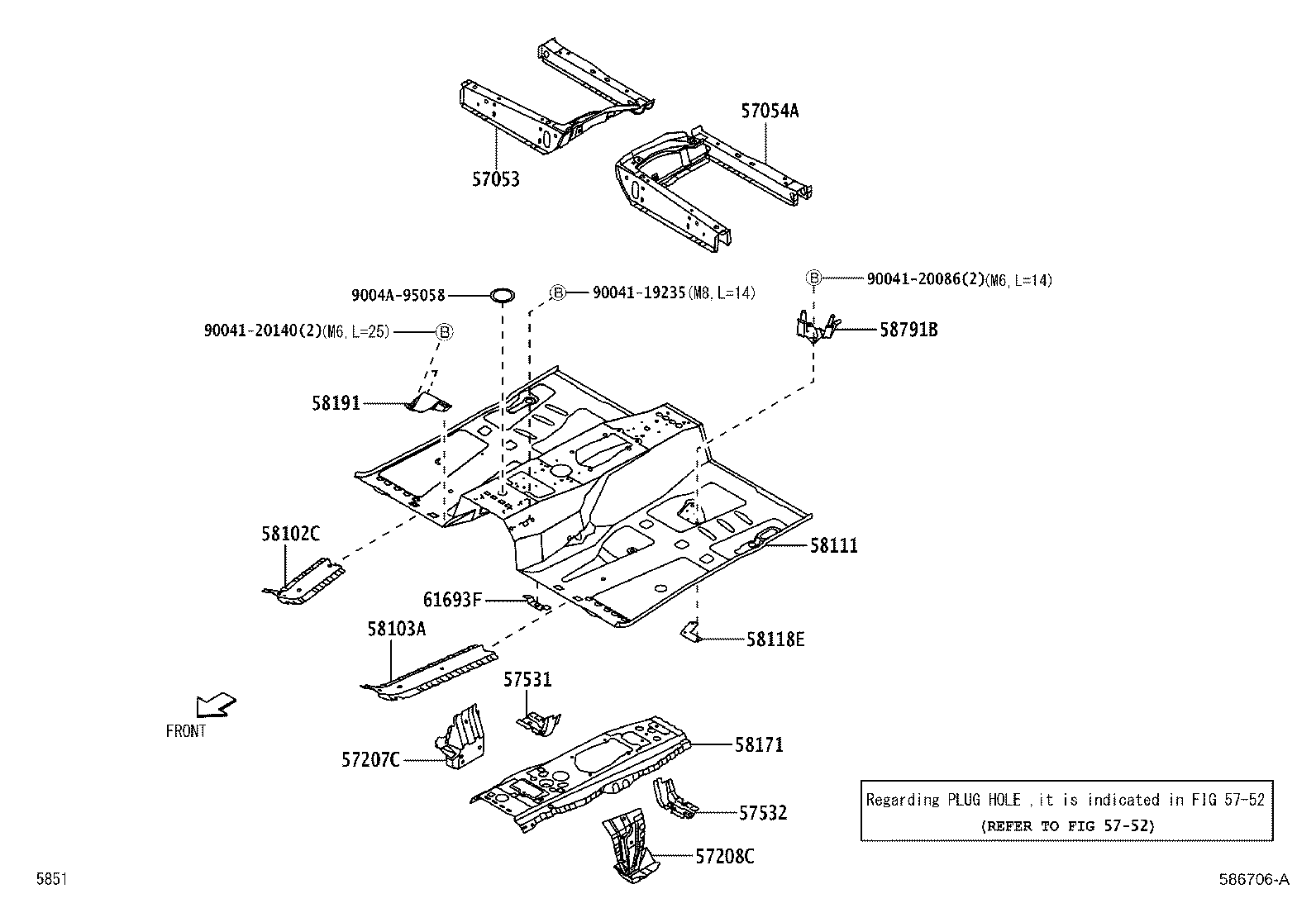

Exploded illustration 586706A 57053 — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH (1 parts) 57054A — REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH (1 parts) 58191 — FOOTREST, FRONT FLOOR (1 parts) 58102C — REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH (1 parts) 58103A — REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH (1 parts) 58171 — REINFORCEMENT, PARKING BRAKE BASE (1 parts) 57531 — BRACKET, FRONT FLOOR CENTER BRACE, RH (1 parts) 58118E — BRACKET, JACK SET (1 parts) 61693F — BRACKET, FRONT FLOOR (1 parts) 58111 — PAN, FRONT FLOOR (1 parts) 58791B — CARRIER, JACK (1 parts) 57532 — BRACKET, FRONT FLOOR CENTER BRACE, LH (1 parts) 57207C — BRACKET SUB-ASSY, ENGINE REAR MOUNTING, RH (1 parts) 57208C — BRACKET SUB-ASSY, ENGINE REAR MOUNTING, LH (1 parts) 9004A95058 — not listed in this catalogue 9004119235 — not listed in this catalogue 9004120140 — not listed in this catalogue 9004120086 — not listed in this catalogue 5752 — not listed in this catalogue
586706A · 14 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
57053 — Reinforcement Sub-assy, Front Floor Crossmember, RH
57053-BZ030 Reinforcement Sub-assy, Front Floor Crossmember, RH
2018-12 → 2023-10 ended
F850 —
57054A — Reinforcement Sub-assy, Front Floor Crossmember, LH
57054-BZ050 Reinforcement Sub-assy, Front Floor Crossmember, LH
2018-12 → 2023-10 ended
F850 —
57207C — Bracket Sub-assy, Engine Rear Mounting, RH
57207-BZ050 Bracket Sub-assy, Engine Rear Mounting, RH
2018-12 → 2023-10 ended
F850 —
57208C — Bracket Sub-assy, Engine Rear Mounting, LH
57208-BZ060 Bracket Sub-assy, Engine Rear Mounting, LH
2018-12 → 2023-10 ended
F850 —
57531 — Bracket, Front Floor Center Brace, RH
51568-BZ010 Bracket, Front Floor Center Brace, RH
2018-12 → 2023-10 ended
F850 —
57532 — Bracket, Front Floor Center Brace, LH
51568-BZ020 Bracket, Front Floor Center Brace, LH
2018-12 → 2023-10 ended
F850 —
58102C — Reinforcement Sub-assy, Front Floor Side, RH
58102-BZ180 Reinforcement Sub-assy, Front Floor Side, RH
2018-12 → 2023-10 ended
F850 —
58103A — Reinforcement Sub-assy, Front Floor Side, LH
58103-BZ070 Reinforcement Sub-assy, Front Floor Side, LH
2018-12 → 2023-10 ended
F850 —
58111 — Pan, Front Floor
58111-BZ340 Pan, Front Floor
2018-12 → 2023-10 ended
F850 —
58118E — Bracket, Jack Set
58793-BZ010 Bracket, Jack Set
2018-12 → 2023-10 ended
F850 —
58171 — Reinforcement, Parking Brake Base
58107-BZ120 Reinforcement, Parking Brake Base
2018-12 → 2023-10 ended
F850 —
58191 — Footrest, Front Floor
58191-BZ030 Footrest, Front Floor
2018-12 → 2023-10 ended
F850 —
58791B — Carrier, Jack
58791-BZ060 Carrier, Jack
2018-12 → 2023-10 ended
F850 —
61693F — Bracket, Front Floor
17163-BZ020 Bracket, Front Floor
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
