Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

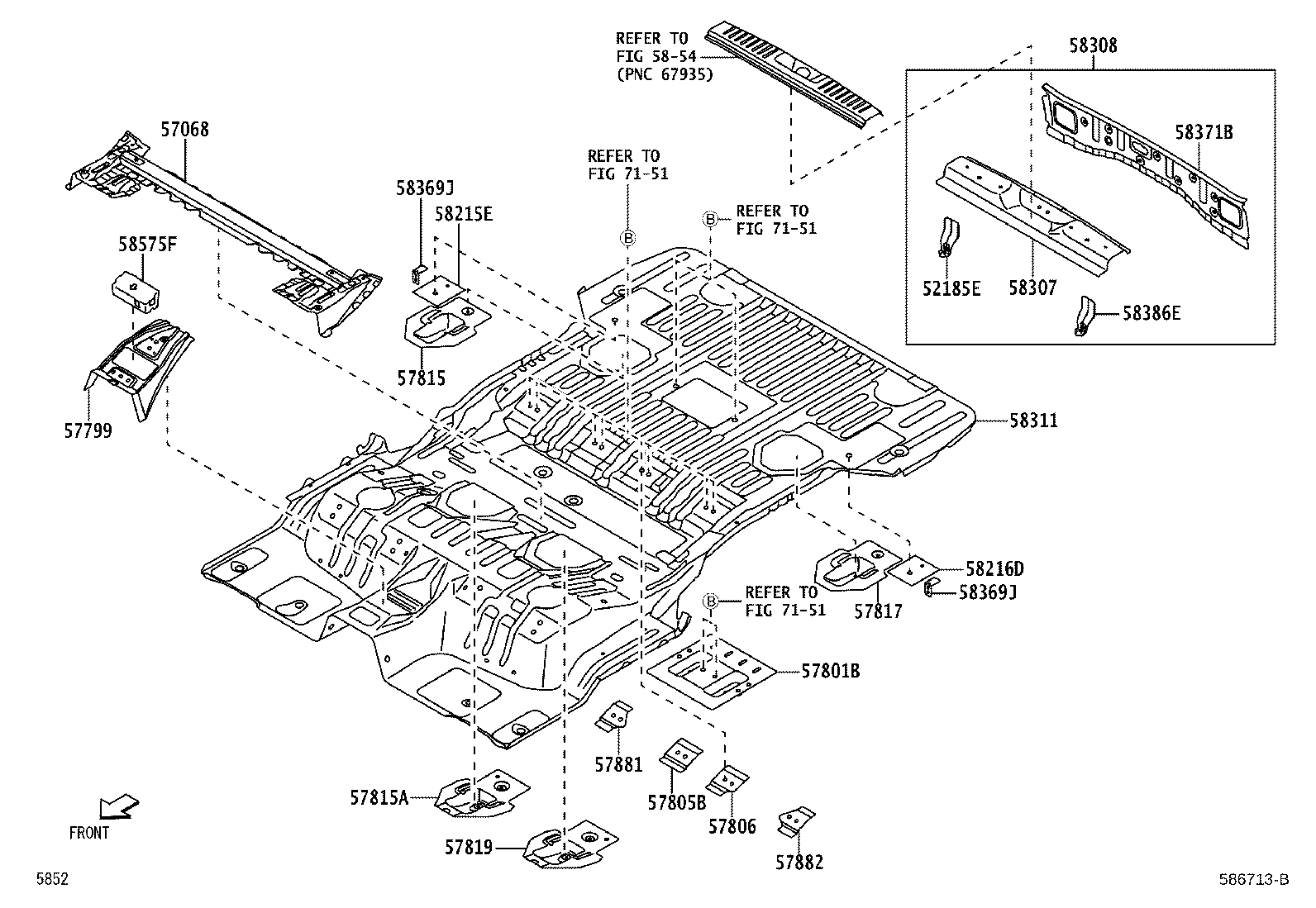

Exploded illustration 586713B 5854 — not listed in this catalogue 52185E — BRACKET, REAR BUMPER SIDE MOUNTIN, RH (1 parts) 58386E — BRACKET, REAR BUMPER COVER, LH (1 parts) 58216D — BRACKET, REAR SEAT MOUNTING, LH (1 parts) 58369J — BRACKET, REAR FLOOR BRACE (1 parts) 58369J — BRACKET, REAR FLOOR BRACE (1 parts) 58215E — BRACKET, REAR SEAT MOUNTING, RH (1 parts) 57801B — REINFORCEMENT SUB-ASSY, REAR NO.1 SEAT LEG, FRONT NO.1 (1 parts) 58575F — PAD, REAR FLOOR (1 parts) 57815A — REINFORCEMENT, BELT ANCHOR, RH (1 parts) 57819 — REINFORCEMENT, BELT ANCHOR, NO.2 LH (1 parts) 57817 — REINFORCEMENT, BELT ANCHOR, NO.2 (1 parts) 57881 — REINFORCEMENT, BELT ANCHOR, NO.3 (1 parts) 57799 — GUSSET, REAR FLOOR CROSSMEMBER (1 parts) 57882 — REINFORCEMENT, BELT ANCHOR, NO.4 (1 parts) 57805B — REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH (1 parts) 57806 — REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH (1 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (1 parts) 58311 — PAN, REAR FLOOR (1 parts) 57815 — REINFORCEMENT, BELT ANCHOR, NO.1 (1 parts) 57068 — MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER (1 parts) 58308 — PANEL SUB-ASSY, BODY LOWER BACK, INNER (1 parts) 58371B — PANEL, BODY LOWER BACK, OUTER (1 parts) 7151 — not listed in this catalogue 7151 — not listed in this catalogue 7151 — not listed in this catalogue
586713B · 22 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
52185E — Bracket, Rear Bumper Side Mountin, RH
52185-BZ120 Bracket, Rear Bumper Side Mountin, RH
2018-12 → 2023-10 ended
F850 —
57068 — Member Sub-assy, Rear Floor Rear Cross, Inner
57068-BZ120 Member Sub-assy, Rear Floor Rear Cross, Inner
2018-12 → 2023-10 ended
F850 —
57799 — Gusset, Rear Floor Crossmember
57799-BZ010 Gusset, Rear Floor Crossmember
2018-12 → 2023-10 ended
F850 —
57801B — Reinforcement Sub-assy, Rear NO.1 Seat Leg, Front NO.1
57801-BZ060 Reinforcement Sub-assy, Rear NO.1 Seat Leg, Front NO.1
2018-12 → 2023-10 ended
F850 —
57805B — Reinforcement Sub-assy, Belt Anchor, RH
57805-BZ080 Reinforcement Sub-assy, Belt Anchor, RH
2018-12 → 2023-10 ended
F850 —
57806 — Reinforcement Sub-assy, Belt Anchor, LH
57806-BZ060 Reinforcement Sub-assy, Belt Anchor, LH
2018-12 → 2023-10 ended
F850 —
57815 — Reinforcement, Belt Anchor, NO.1
57807-BZ050 Reinforcement, Belt Anchor, NO.1
2018-12 → 2023-10 ended
F850 —
57815A — Reinforcement, Belt Anchor, RH
57807-BZ040 Reinforcement, Belt Anchor, RH
2018-12 → 2023-10 ended
F850 —
57817 — Reinforcement, Belt Anchor, NO.2
57807-BZ050 Reinforcement, Belt Anchor, NO.2
2018-12 → 2023-10 ended
F850 —
57819 — Reinforcement, Belt Anchor, NO.2 LH
57807-BZ040 Reinforcement, Belt Anchor, NO.2 LH
2018-12 → 2023-10 ended
F850 —
57881 — Reinforcement, Belt Anchor, NO.3
57805-BZ090 Reinforcement, Belt Anchor, NO.3
2018-12 → 2023-10 ended
F850 —
57882 — Reinforcement, Belt Anchor, NO.4
57806-BZ070 Reinforcement, Belt Anchor, NO.4
2018-12 → 2023-10 ended
F850 —
58215E — Bracket, Rear Seat Mounting, RH
72611-BZ050 Bracket, Rear Seat Mounting, RH
2018-12 → 2023-10 ended
F850 —
58216D — Bracket, Rear Seat Mounting, LH
72611-BZ050 Bracket, Rear Seat Mounting, LH
2018-12 → 2023-10 ended
F850 —
58307 — Panel Sub-assy, Body Lower Back
58307-BZ220 Panel Sub-assy, Body Lower Back
2018-12 → 2023-10 ended
F850 —
58308 — Panel Sub-assy, Body Lower Back, Inner
58308-BZ310 Panel Sub-assy, Body Lower Back, Inner
2018-12 → 2023-10 ended
F850 —
58311 — Pan, Rear Floor
58311-BZ380 Pan, Rear Floor
2018-12 → 2023-10 ended
F850 —
58369J — Bracket, Rear Floor Brace
52571-BZ010 Bracket, Rear Floor Brace
2018-12 → 2023-10 ended
F850 —
58371B — Panel, Body Lower Back, Outer
58377-BZ050 Panel, Body Lower Back, Outer
2018-12 → 2023-10 ended
F850 —
58386E — Bracket, Rear Bumper Cover, LH
52185-BZ120 Bracket, Rear Bumper Cover, LH
2018-12 → 2023-10 ended
F850 —
58575F — Pad, Rear Floor
58579-BZ020 Pad, Rear Floor
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
