Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

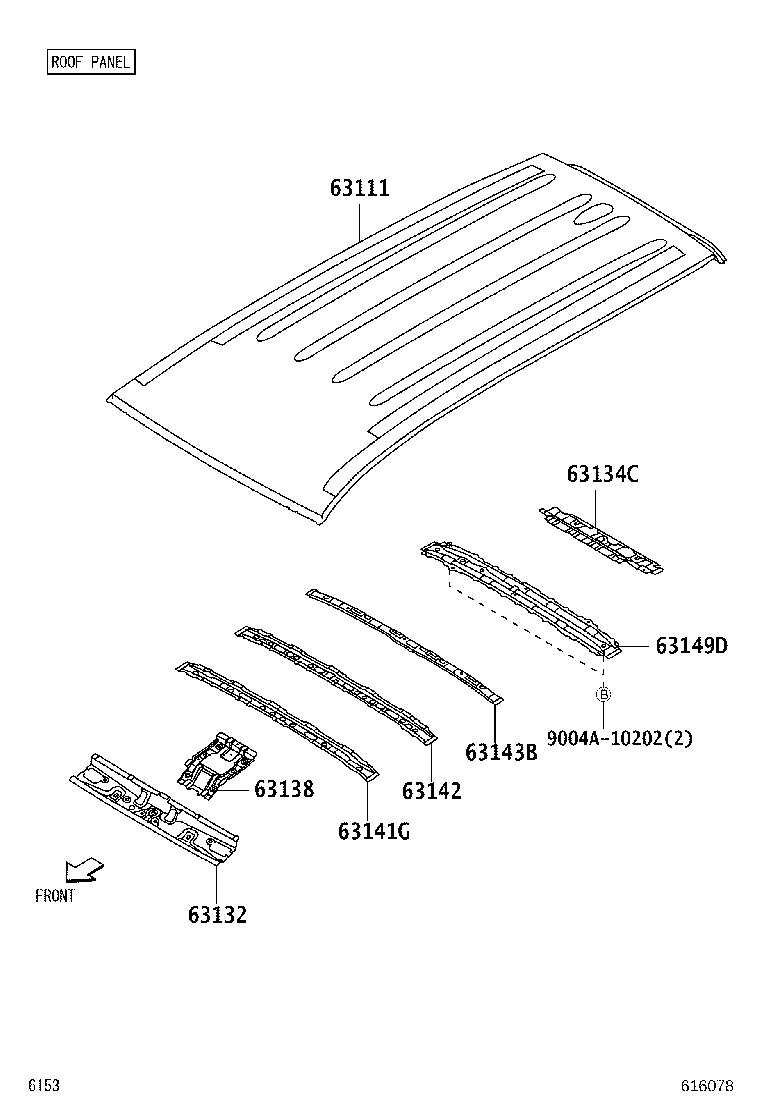

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63111 — Panel, Roof | ||||
| 63111-BZ290 |
Panel, Roof
2018-12 → 2023-10
ended
|
F850 | — | |
| 63132 — Panel, Windshield Header, Inner | ||||
| 63132-BZ280 |
Panel, Windshield Header, Inner
2018-12 → 2023-10
ended
|
F850 | — | |
| 63134C — Frame, Back Door Opening, Inner | ||||
| 63134-BZ260 |
Frame, Back Door Opening, Inner
2018-12 → 2023-10
ended
|
F850 | — | |
| 63138 — Bracket, Dome Lamp, NO.2 | ||||
| 63138-BZ010 |
Bracket, Dome Lamp, NO.2
2018-12 → 2023-10
ended
|
F850 | — | |
| 63141G — Reinforcement, Roof Panel, NO.1 | ||||
| 63141-BZ210 |
Reinforcement, Roof Panel, NO.1
2018-12 → 2023-10
ended
|
F850 | — | |
| 63142 — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-BZ200 |
Reinforcement, Roof Panel, NO.2
2018-12 → 2023-10
ended
|
F850 | — | |
| 63143B — Reinforcement, Roof Panel, NO.3 | ||||
| 63143-BZ130 |
Reinforcement, Roof Panel, NO.3
2018-12 → 2023-10
ended
|
F850 | — | |
| 63149D — Reinforcement, Roof Panel, NO.8 | ||||
| 63208-BZ040 |
Reinforcement, Roof Panel, NO.8
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
