Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

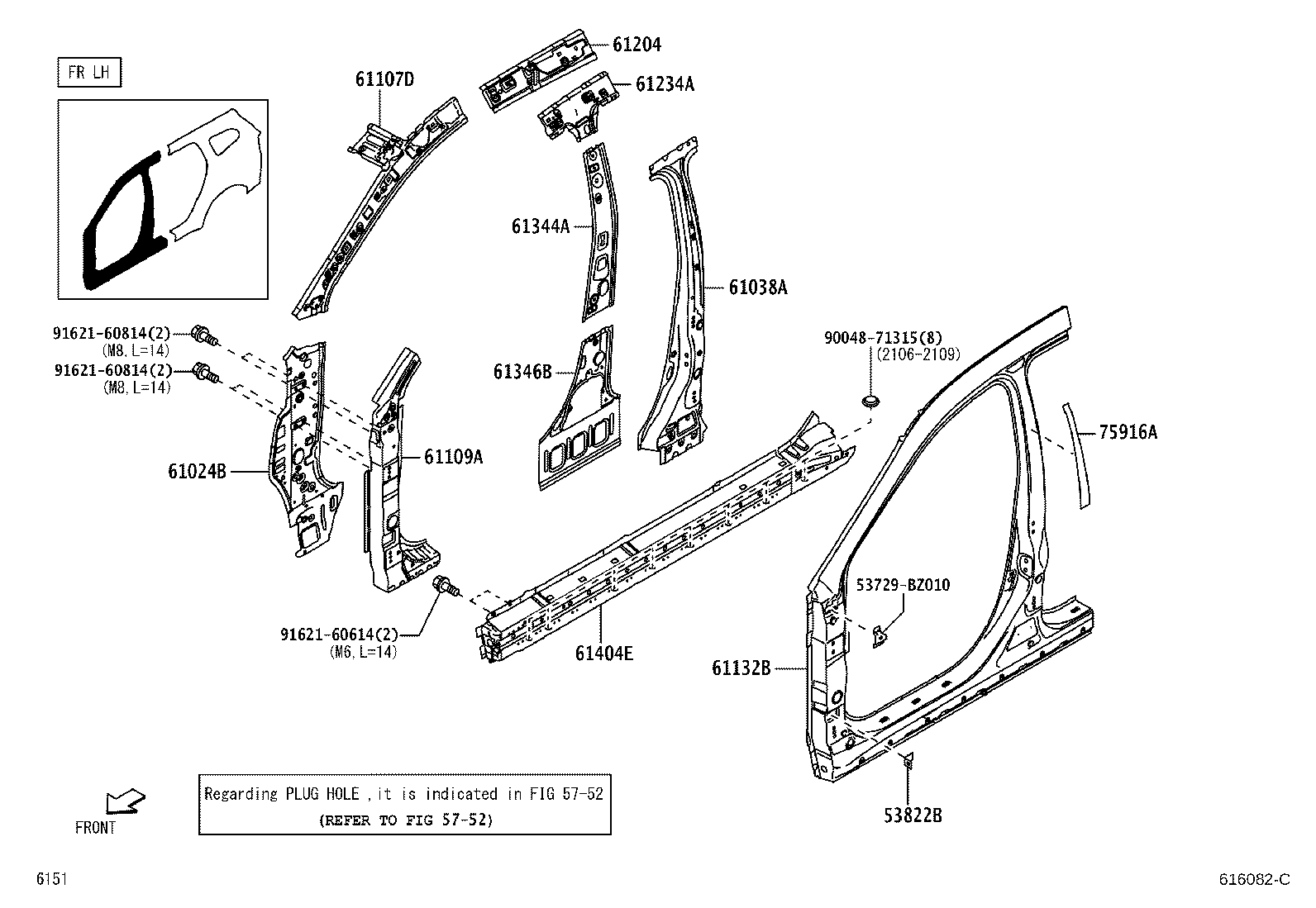

Exploded illustration 616082C 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (1 parts) 61024B — PILLAR SUB-ASSY, FRONT BODY, INNER LH (1 parts) 61038A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH (1 parts) 61234A — RAIL, ROOF SIDE, INNER NO.2 LH (1 parts) 61346B — PILLAR, CENTER BODY, INNER LOWER LH (1 parts) 61344A — PILLAR, CENTER BODY, INNER LH (1 parts) 61109A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH (1 parts) 61404E — REINFORCE SUB-ASSY, ROCKER, OUTER LH (1 parts) 61132B — PILLAR, FRONT BODY, OUTER LH (1 parts) 53822B — BRACKET, FRONT FENDER, REAR LH (1 parts) 75916A — TAPE, BLACK OUT CENTER PILLAR, LH (1 parts) 53729BZ010 — not listed in this catalogue 61107D — PILLAR SUB-ASSY, FRONT, LH (1 parts) 5752 — not listed in this catalogue 9162160814 — not listed in this catalogue 9162160814 — not listed in this catalogue 9162160614 — not listed in this catalogue 9004871315 — not listed in this catalogue
616082C · 12 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
53822B — Bracket, Front Fender, Rear LH
58139-BZ070 Bracket, Front Fender, Rear LH
2018-12 → 2023-10 ended
F850 —
61024B — Pillar Sub-assy, Front Body, Inner LH
61024-BZ320 Pillar Sub-assy, Front Body, Inner LH
2018-12 → 2023-10 ended
F850 —
61038A — Reinforcement Sub-assy, Center Body Pillar, LH
61038-BZ350 Reinforcement Sub-assy, Center Body Pillar, LH
2018-12 → 2023-10 ended
F850 —
61107D — Pillar Sub-assy, Front, LH
61107-BZ090 Pillar Sub-assy, Front, LH
2018-12 → 2023-10 ended
F850 —
61109A — Reinforce Sub-assy, Front Body Pillar, Lower LH
61109-BZ210 Reinforce Sub-assy, Front Body Pillar, Lower LH
2018-12 → 2023-10 ended
F850 —
61132B — Pillar, Front Body, Outer LH
61132-BZ480 Pillar, Front Body, Outer LH
2018-12 → 2023-10 ended
F850 —
61204 — Rail Sub-assy, Roof Side, Inner LH
61204-BZ110 Rail Sub-assy, Roof Side, Inner LH
2018-12 → 2023-10 ended
F850 —
61234A — Rail, Roof Side, Inner NO.2 LH
61234-BZ100 Rail, Roof Side, Inner NO.2 LH
2018-12 → 2023-10 ended
F850 —
61344A — Pillar, Center Body, Inner LH
61344-BZ210 Pillar, Center Body, Inner LH
2018-12 → 2023-10 ended
F850 —
61346B — Pillar, Center Body, Inner Lower LH
61346-BZ150 Pillar, Center Body, Inner Lower LH
2018-12 → 2023-10 ended
F850 —
61404E — Reinforce Sub-assy, Rocker, Outer LH
61404-BZ180 Reinforce Sub-assy, Rocker, Outer LH
2018-12 → 2023-10 ended
F850 —
75916A — Tape, Black Out Center Pillar, LH
75916-BZ070-C0 note Tape, Black Out Center Pillar, LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
