Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

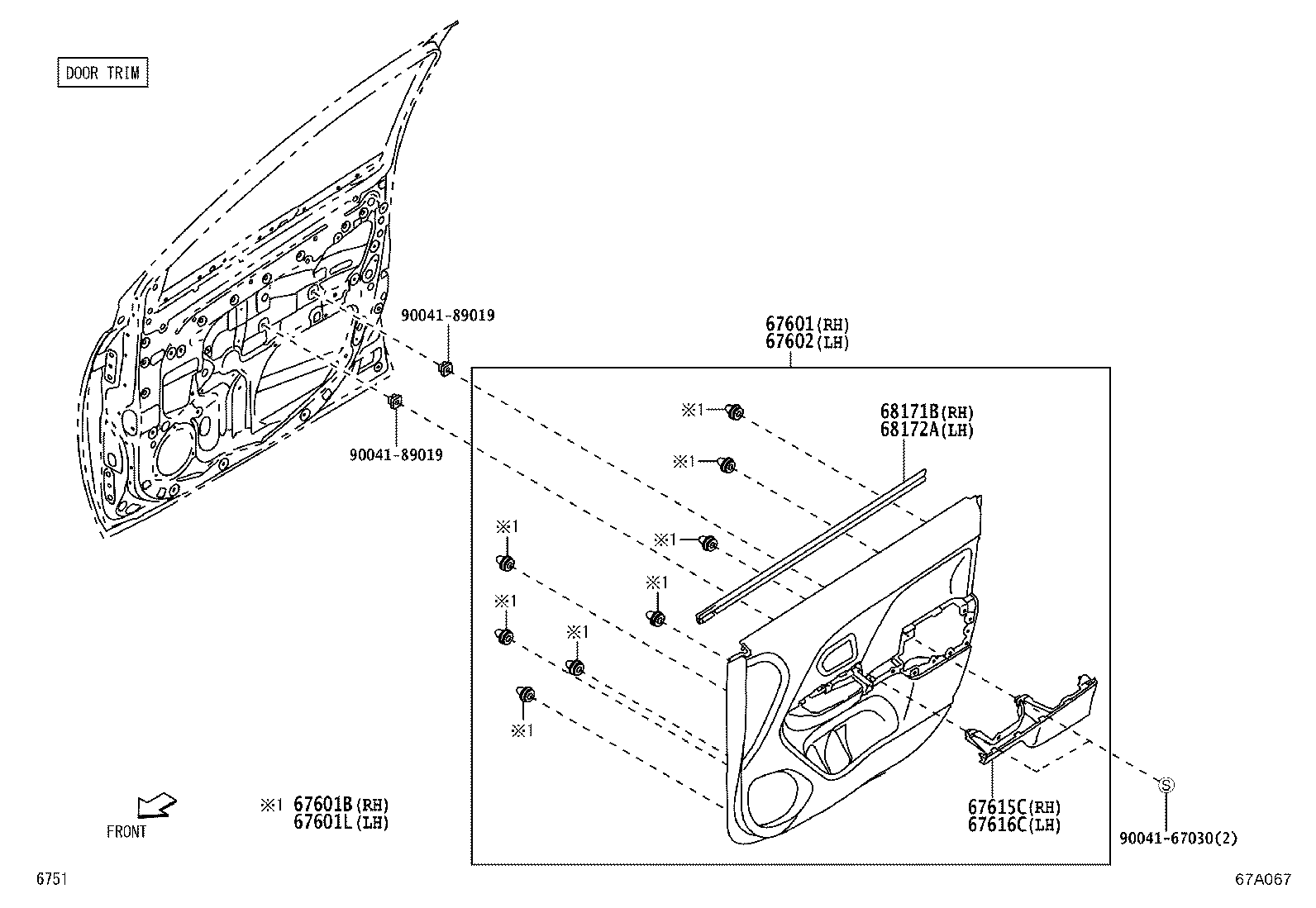

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-BZ810-C1 note |
Board Sub-assy, Front Door Trim, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
Clip(FOR FRONT DOOR TRIM BOARD)
2018-12 → 2023-10
ended
|
F850 | — | |
| 67601L — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
Clip(FOR FRONT DOOR TRIM BOARD)
2018-12 → 2023-10
ended
|
F850 | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-BZ810-C1 note |
Board Sub-assy, Front Door Trim, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 67615C — Base, Front Door Trim, RH | ||||
| 74647-BZ030-E0 note |
Base, Front Door Trim, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 67616C — Base, Front Door Trim, LH | ||||
| 74648-BZ030-E0 note |
Base, Front Door Trim, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 68171B — Weatherstrip, Front Door Glass, Inner RH | ||||
| 68171-BZ270 |
Weatherstrip, Front Door Glass, Inner RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 68172A — Weatherstrip, Front Door Glass, Inner LH | ||||
| 68172-BZ250 |
Weatherstrip, Front Door Glass, Inner LH
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
