Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

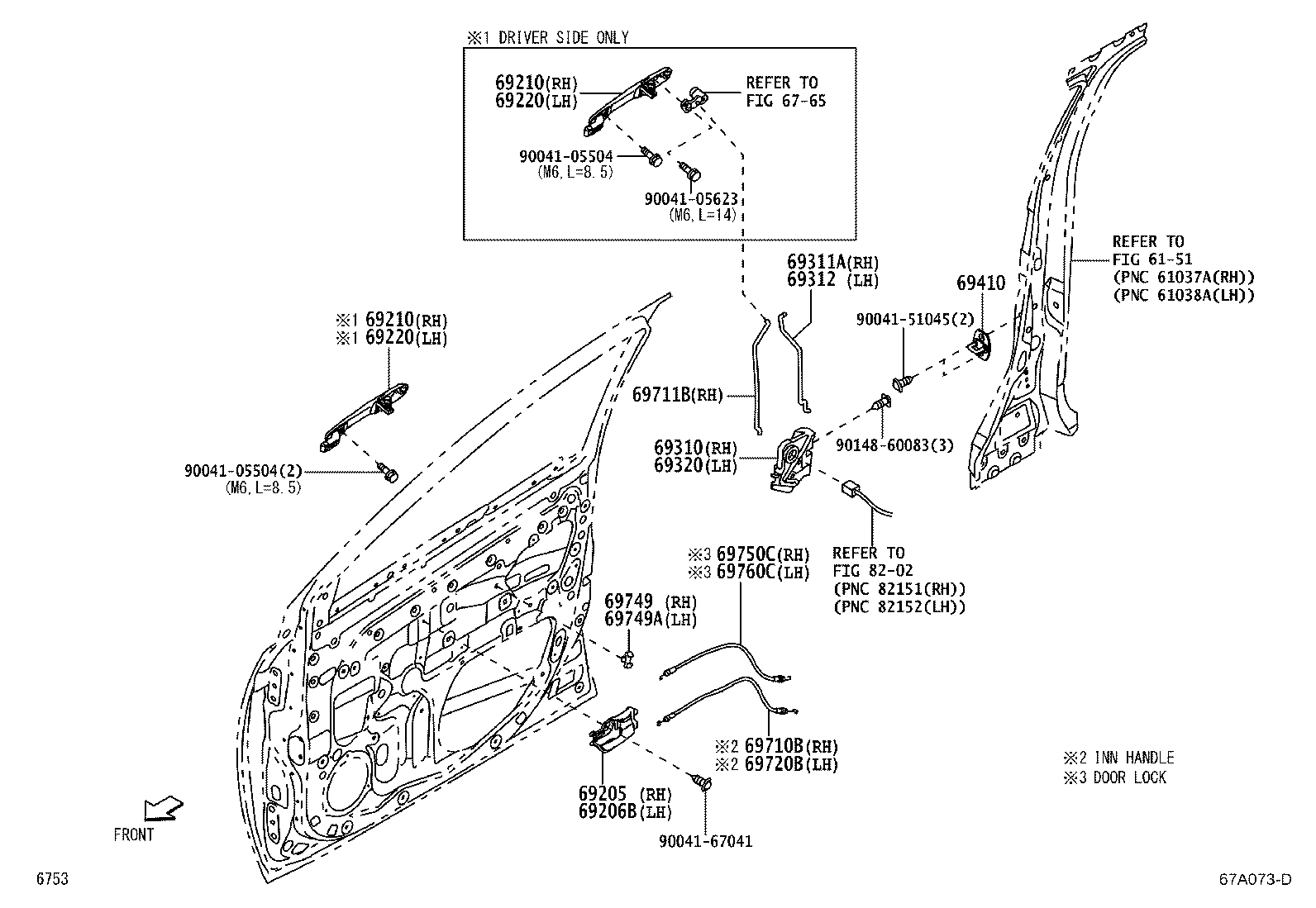

Exploded illustration 67A073D 6765 — not listed in this catalogue 8202 — not listed in this catalogue 6151 — not listed in this catalogue 9004151045 — not listed in this catalogue 9014860083 — not listed in this catalogue 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (1 parts) 9004105623 — not listed in this catalogue 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (1 parts) 69720B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH (1 parts) 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (1 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (1 parts) 69711B — LINK, FRONT DOOR LOCK REMOTE CONTROL, RH (1 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (1 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (1 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (11 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (11 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (11 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (11 parts) 9004167041 — not listed in this catalogue 69749 — CLAMP, FRONT DOOR LOCK LINK (1 parts) 69749A — CLAMP, FRONT DOOR LOCK LINK, NO.1 (1 parts) 69320 — LOCK ASSY, FRONT DOOR, LH (1 parts) 69310 — LOCK ASSY, FRONT DOOR, RH (1 parts) 69311A — ROD, FRONT DOOR LOCK OPEN, RH (1 parts) 69312 — ROD, FRONT DOOR LOCK OPEN, LH (1 parts) 9004105504 — not listed in this catalogue 9004105504 — not listed in this catalogue
67A073D · 18 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
69205 — Handle Sub-assy, Front Door Inside, RH
69270-BZ120-C0 note Handle Sub-assy, Front Door Inside, RH
2018-12 → 2023-10 ended
F850 —
69206B — Handle Sub-assy, Front Door Inside, LH
69280-BZ120-C0 note Handle Sub-assy, Front Door Inside, LH
2018-12 → 2023-10 ended
F850 —
69210 — Handle Assy, Front Door, Outside RH
69210-BZ440-A0 note Handle Assy, Front Door, Outside RH
2018-12 → 2019-12 ended
F850 —
69210-BZ440-B0 note Handle Assy, Front Door, Outside RH
2018-12 → 2019-12 ended
F850 —
69210-BZ440-B1 note Handle Assy, Front Door, Outside RH
2018-12 → 2023-10 ended
F850 —
69210-BZ440-D0 note Handle Assy, Front Door, Outside RH
2021-04 → 2023-04 ended
F850 —
69210-BZ440-D1 note Handle Assy, Front Door, Outside RH
2023-04 → 2023-10 ended
F850 —
69210-BZ440-J0 note Handle Assy, Front Door, Outside RH
2018-12 → 2019-12 ended
F850 —
69210-BZ440-J1 note Handle Assy, Front Door, Outside RH
2018-12 → 2021-04 ended
F850 —
69210-BZ460-A0 note Handle Assy, Front Door, Outside RH
2019-12 → 2023-10 ended
F850 —
69210-BZ460-B0 note Handle Assy, Front Door, Outside RH
2019-12 → 2023-10 ended
F850 —
69210-BZ460-D1 note Handle Assy, Front Door, Outside RH
2023-04 → 2023-10 ended
F850 —
69210-BZ460-J0 note Handle Assy, Front Door, Outside RH
2019-12 → 2023-10 ended
F850 —
69220 — Handle Assy, Front Door Outside, LH
69220-BZ410-A0 note Handle Assy, Front Door Outside, LH
2018-12 → 2019-12 ended
F850 —
69220-BZ410-B0 note Handle Assy, Front Door Outside, LH
2018-12 → 2019-12 ended
F850 —
69220-BZ410-B1 note Handle Assy, Front Door Outside, LH
2018-12 → 2023-10 ended
F850 —
69220-BZ410-D0 note Handle Assy, Front Door Outside, LH
2021-04 → 2023-04 ended
F850 —
69220-BZ410-D1 note Handle Assy, Front Door Outside, LH
2023-04 → 2023-10 ended
F850 —
69220-BZ410-J0 note Handle Assy, Front Door Outside, LH
2018-12 → 2019-12 ended
F850 —
69220-BZ410-J1 note Handle Assy, Front Door Outside, LH
2018-12 → 2021-04 ended
F850 —
69220-BZ440-A0 note Handle Assy, Front Door Outside, LH
2019-12 → 2023-10 ended
F850 —
69220-BZ440-B0 note Handle Assy, Front Door Outside, LH
2019-12 → 2023-10 ended
F850 —
69220-BZ440-D1 note Handle Assy, Front Door Outside, LH
2023-04 → 2023-10 ended
F850 —
69220-BZ440-J0 note Handle Assy, Front Door Outside, LH
2019-12 → 2023-10 ended
F850 —
69310 — Lock Assy, Front Door, RH
69310-BZ221 Lock Assy, Front Door, RH
2018-12 → 2023-10 ended
F850 —
69311A — Rod, Front Door Lock Open, RH
69311-BZ110 Rod, Front Door Lock Open, RH
2018-12 → 2023-10 ended
F850 —
69312 — Rod, Front Door Lock Open, LH
69312-BZ110 Rod, Front Door Lock Open, LH
2018-12 → 2023-10 ended
F850 —
69320 — Lock Assy, Front Door, LH
69320-BZ351 Lock Assy, Front Door, LH
2018-12 → 2023-10 ended
F850 —
69410 — Plate Assy, Front Door Lock Striker
69410-BZ070 Plate Assy, Front Door Lock Striker
2018-12 → 2023-10 ended
F850 —
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-BZ110 note Cable Assy, Front Door Lock Remote Control, RH
2018-12 → 2023-10 ended
F850 —
69711B — Link, Front Door Lock Remote Control, RH
69711-BZ150 Link, Front Door Lock Remote Control, RH
2018-12 → 2023-10 ended
F850 —
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-BZ110 note Cable Assy, Front Door Lock Remote Control, LH
2018-12 → 2023-10 ended
F850 —
69749 — Clamp, Front Door Lock Link
69749-32040 note Clamp, Front Door Lock Link
2018-12 → 2023-10 ended
F850 —
69749A — Clamp, Front Door Lock Link, NO.1
69749-32040 note Clamp, Front Door Lock Link, NO.1
2018-12 → 2023-10 ended
F850 —
69750C — Cable Assy, Front Door Inside Locking, RH
69750-BZ110 note Cable Assy, Front Door Inside Locking, RH
2018-12 → 2023-10 ended
F850 —
69760C — Cable Assy, Front Door Inside Locking LH
69760-BZ110 note Cable Assy, Front Door Inside Locking LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
