Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

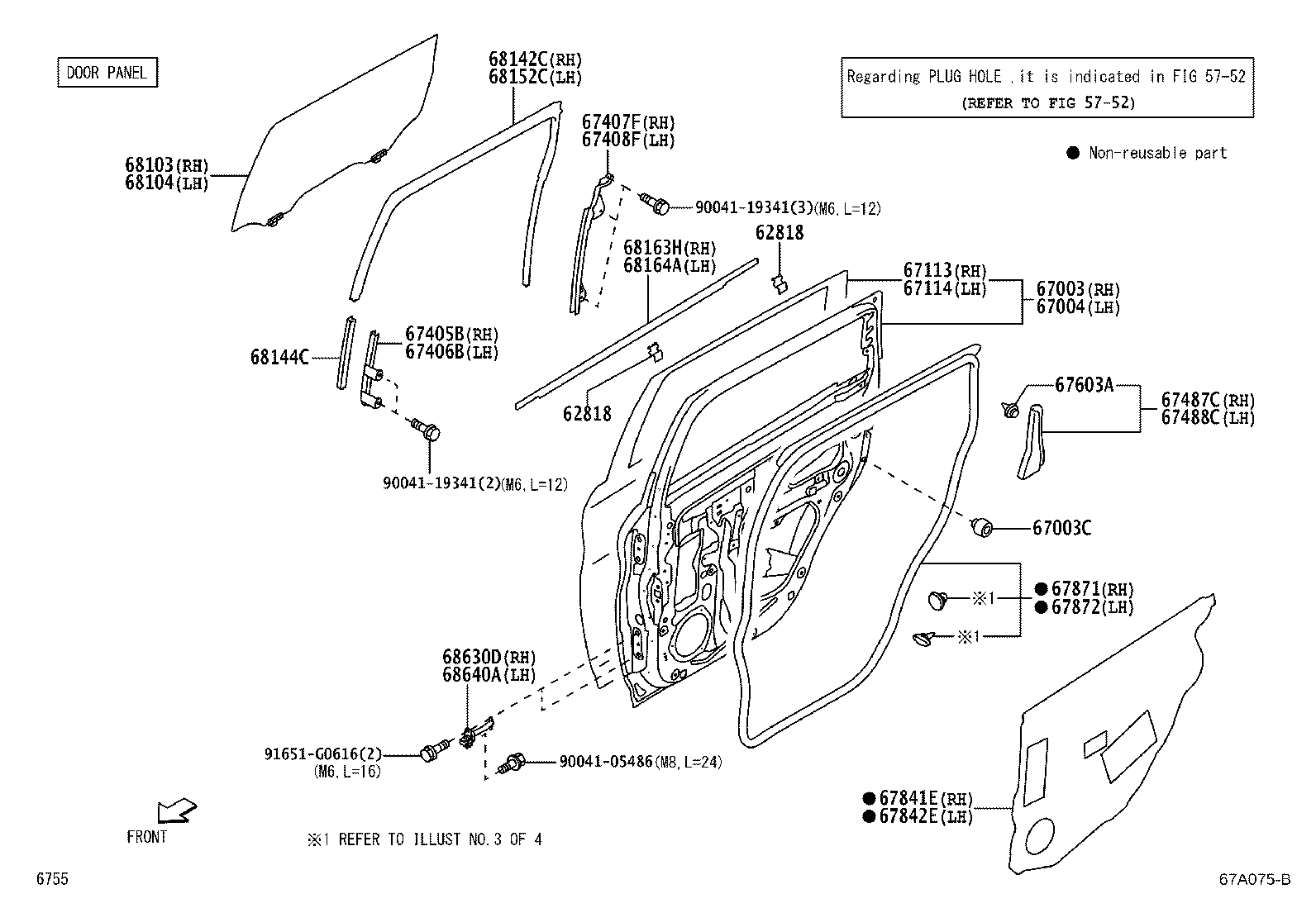

Exploded illustration 67A075B 67114 — PANEL, REAR DOOR, OUTER LH (1 parts) 67113 — PANEL, REAR DOOR, OUTER RH (1 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (1 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (1 parts) 67488C — SEAL, REAR DOOR REAR GUIDE, LH (1 parts) 67487C — SEAL, REAR DOOR REAR GUIDE, RH (1 parts) 67406B — GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH (1 parts) 67405B — GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH (1 parts) 91651G0616 — not listed in this catalogue 9004105486 — not listed in this catalogue 9004119341 — not listed in this catalogue 68630D — CHECK ASSY, REAR DOOR, RH (1 parts) 68640A — CHECK ASSY, REAR DOOR, LH (1 parts) 68163H — WEATHERSTRIP, REAR DOOR GLASS, OUTER RH (2 parts) 68164A — WEATHERSTRIP, REAR DOOR GLASS, OUTER LH (2 parts) 68142C — RUN, REAR DOOR GLASS, RH (1 parts) 68152C — RUN, REAR DOOR GLASS, LH (1 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (1 parts) 67841E — COVER, REAR DOOR SERVICE HOLE, RH (1 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (1 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (1 parts) 67407F — FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH (1 parts) 67408F — FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH (1 parts) 9004119341 — not listed in this catalogue 67603A — RETAINER(FOR REAR DOOR TRIM BOARD) (1 parts) 62818 — STOPPER, REAR WINDOW GLASS (1 parts) 62818 — STOPPER, REAR WINDOW GLASS (1 parts) 68144C — RUN, REAR DOOR GLASS, LOWER FRONT (1 parts) 67003C — CUSHION, REAR DOOR PANEL (1 parts) 5752 — not listed in this catalogue 67872 — WEATHERSTRIP, REAR DOOR, LH (1 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (1 parts)
67A075B · 27 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
28 parts on this figure
Part number Description Fitment Price
62818 — Stopper, Rear Window Glass
67216-BZ140 Stopper, Rear Window Glass
2018-12 → 2023-10 ended
F850 —
67003 — Panel Sub-assy, Rear Door, RH
67003-BZ690 Panel Sub-assy, Rear Door, RH
2018-12 → 2023-10 ended
F850 —
67003C — Cushion, Rear Door Panel
90541-09069 Cushion, Rear Door Panel
2018-12 → 2023-10 ended
F850 —
67004 — Panel Sub-assy, Rear Door, LH
67004-BZ690 Panel Sub-assy, Rear Door, LH
2018-12 → 2023-10 ended
F850 —
67113 — Panel, Rear Door, Outer RH
67113-BZ410 Panel, Rear Door, Outer RH
2018-12 → 2023-10 ended
F850 —
67114 — Panel, Rear Door, Outer LH
67114-BZ410 Panel, Rear Door, Outer LH
2018-12 → 2023-10 ended
F850 —
67405B — Guide Sub-assy, Rear Door Window, Front RH
67405-BZ060 Guide Sub-assy, Rear Door Window, Front RH
2018-12 → 2023-10 ended
F850 —
67406B — Guide Sub-assy, Rear Door Window, Front LH
67406-BZ060 Guide Sub-assy, Rear Door Window, Front LH
2018-12 → 2023-10 ended
F850 —
67407F — Frame Sub-assy, Rear Door Window, Rear Lower RH
67407-BZ180 Frame Sub-assy, Rear Door Window, Rear Lower RH
2018-12 → 2023-10 ended
F850 —
67408F — Frame Sub-assy, Rear Door Window, Rear Lower LH
67408-BZ180 Frame Sub-assy, Rear Door Window, Rear Lower LH
2018-12 → 2023-10 ended
F850 —
67487C — Seal, Rear Door Rear Guide, RH
67487-BZ070 Seal, Rear Door Rear Guide, RH
2018-12 → 2023-10 ended
F850 —
67488C — Seal, Rear Door Rear Guide, LH
67488-BZ070 Seal, Rear Door Rear Guide, LH
2018-12 → 2023-10 ended
F850 —
67603A — Retainer(FOR REAR DOOR TRIM BOARD)
67771-B2010 Retainer(FOR REAR DOOR TRIM BOARD)
2018-12 → 2023-10 ended
F850 —
67841E — Cover, Rear Door Service Hole, RH
67841-BZ410 Cover, Rear Door Service Hole, RH
2018-12 → 2023-10 ended
F850 —
67842E — Cover, Rear Door Service Hole, LH
67842-BZ090 Cover, Rear Door Service Hole, LH
2018-12 → 2023-10 ended
F850 —
67871 — Weatherstrip, Rear Door, RH
67871-BZ210 Weatherstrip, Rear Door, RH
2018-12 → 2023-10 ended
F850 —
67872 — Weatherstrip, Rear Door, LH
67872-BZ200 Weatherstrip, Rear Door, LH
2018-12 → 2023-10 ended
F850 —
68103 — Glass Sub-assy, Rear Door, RH
68103-BZ411 Glass Sub-assy, Rear Door, RH
2018-12 → 2023-10 ended
F850 —
68104 — Glass Sub-assy, Rear Door, LH
68104-BZ411 Glass Sub-assy, Rear Door, LH
2018-12 → 2023-10 ended
F850 —
68142C — Run, Rear Door Glass, RH
68142-BZ190 Run, Rear Door Glass, RH
2018-12 → 2023-10 ended
F850 —
68144C — Run, Rear Door Glass, Lower Front
68144-BZ090 Run, Rear Door Glass, Lower Front
2018-12 → 2023-10 ended
F850 —
68152C — Run, Rear Door Glass, LH
68152-BZ190 Run, Rear Door Glass, LH
2018-12 → 2023-10 ended
F850 —
68163H — Weatherstrip, Rear Door Glass, Outer RH
68163-BZ191 Weatherstrip, Rear Door Glass, Outer RH
2018-12 → 2019-11 ended
F850 —
68163-BZ200 Weatherstrip, Rear Door Glass, Outer RH
2019-12 → 2023-10 ended
F850 —
68164A — Weatherstrip, Rear Door Glass, Outer LH
68164-BZ181 Weatherstrip, Rear Door Glass, Outer LH
2018-12 → 2019-11 ended
F850 —
68164-BZ190 Weatherstrip, Rear Door Glass, Outer LH
2019-12 → 2023-10 ended
F850 —
68630D — Check Assy, Rear Door, RH
68630-BZ160 Check Assy, Rear Door, RH
2018-12 → 2023-10 ended
F850 —
68640A — Check Assy, Rear Door, LH
68630-BZ160 Check Assy, Rear Door, LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
