Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

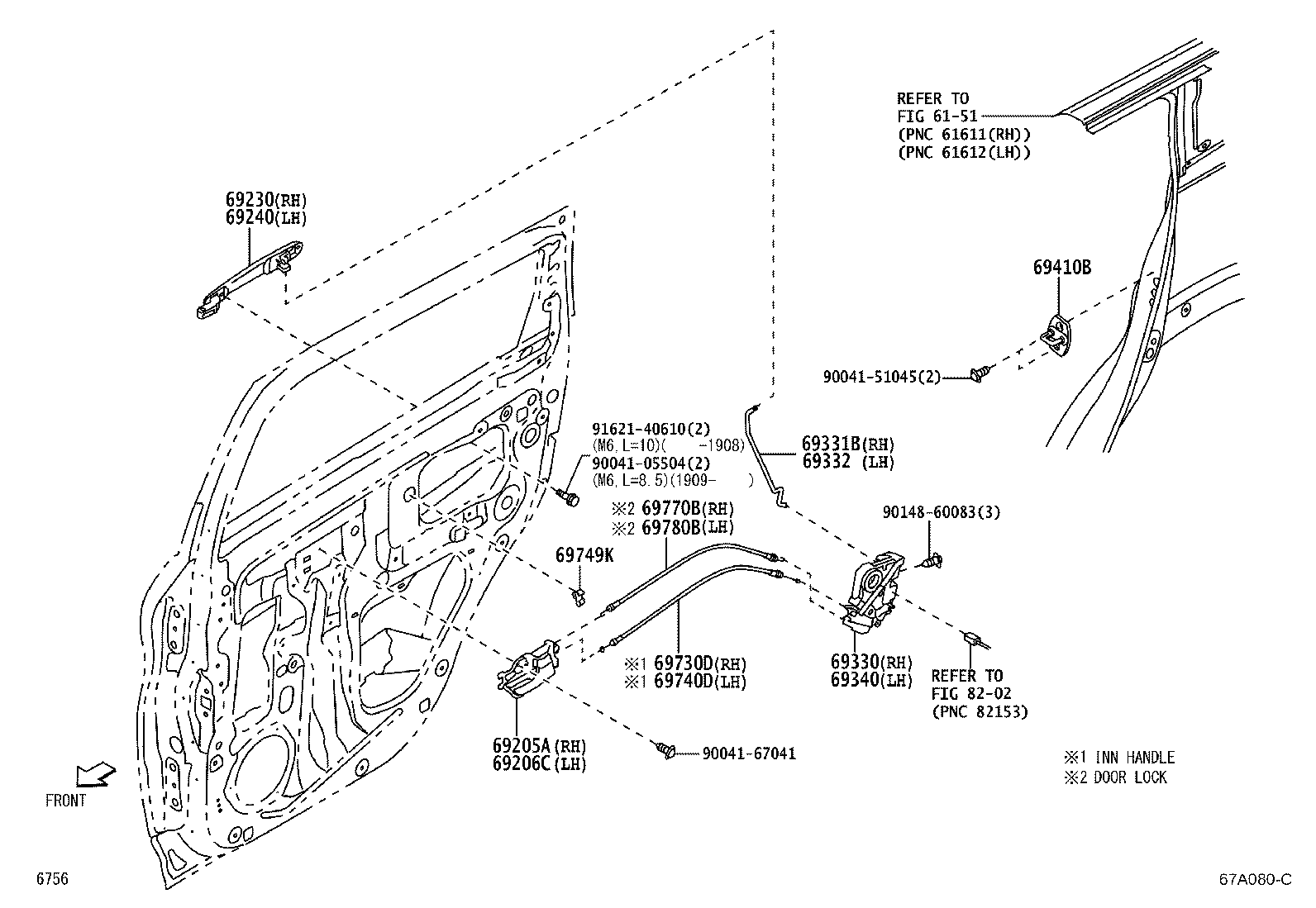

Exploded illustration 67A080C 69230 — HANDLE ASSY, REAR DOOR OUTSIDE, RH (11 parts) 69240 — HANDLE ASSY, REAR DOOR OUTSIDE, LH (11 parts) 69205A — HANDLE SUB-ASSY, REAR DOOR INSIDE, RH (1 parts) 69206C — HANDLE SUB-ASSY, REAR DOOR INSIDE, LH (1 parts) 69730D — CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH (1 parts) 69740D — CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH (1 parts) 69770B — CABLE ASSY, REAR DOOR INSIDE LOCKING, RH (1 parts) 69780B — CABLE ASSY, REAR DOOR INSIDE LOCKING, LH (1 parts) 69749K — CLAMP, REAR DOOR LOCK (1 parts) 69410B — PLATE ASSY, REAR DOOR LOCK STRIKER (1 parts) 69331B — ROD, REAR DOOR LOCK OPEN, RH (1 parts) 69332 — ROD, REAR DOOR LOCK OPEN, LH (1 parts) 69330 — LOCK ASSY, REAR DOOR, RH (1 parts) 69340 — LOCK ASSY, REAR DOOR, LH (1 parts) 9004167041 — not listed in this catalogue 9004151045 — not listed in this catalogue 6151 — not listed in this catalogue 8202 — not listed in this catalogue 9014860083 — not listed in this catalogue 9162140610 — not listed in this catalogue 9004105504 — not listed in this catalogue
67A080C · 14 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
69205A — Handle Sub-assy, Rear Door Inside, RH
69270-BZ120-C0 note Handle Sub-assy, Rear Door Inside, RH
2018-12 → 2023-10 ended
F850 —
69206C — Handle Sub-assy, Rear Door Inside, LH
69280-BZ120-C0 note Handle Sub-assy, Rear Door Inside, LH
2018-12 → 2023-10 ended
F850 —
69230 — Handle Assy, Rear Door Outside, RH
69210-BZ430-A0 note Handle Assy, Rear Door Outside, RH
2018-12 → 2019-12 ended
F850 —
69210-BZ430-B0 note Handle Assy, Rear Door Outside, RH
2018-12 → 2019-12 ended
F850 —
69210-BZ430-B1 note Handle Assy, Rear Door Outside, RH
2018-12 → 2023-10 ended
F850 —
69210-BZ430-D0 note Handle Assy, Rear Door Outside, RH
2021-04 → 2023-04 ended
F850 —
69210-BZ430-D1 note Handle Assy, Rear Door Outside, RH
2023-04 → 2023-10 ended
F850 —
69210-BZ430-J0 note Handle Assy, Rear Door Outside, RH
2018-12 → 2019-12 ended
F850 —
69210-BZ430-J1 note Handle Assy, Rear Door Outside, RH
2018-12 → 2021-04 ended
F850 —
69210-BZ450-A0 note Handle Assy, Rear Door Outside, RH
2019-12 → 2023-10 ended
F850 —
69210-BZ450-B0 note Handle Assy, Rear Door Outside, RH
2019-12 → 2023-10 ended
F850 —
69210-BZ450-D1 note Handle Assy, Rear Door Outside, RH
2023-04 → 2023-10 ended
F850 —
69210-BZ450-J0 note Handle Assy, Rear Door Outside, RH
2019-12 → 2023-10 ended
F850 —
69240 — Handle Assy, Rear Door Outside, LH
69220-BZ390-A0 note Handle Assy, Rear Door Outside, LH
2018-12 → 2019-12 ended
F850 —
69220-BZ390-B0 note Handle Assy, Rear Door Outside, LH
2018-12 → 2019-12 ended
F850 —
69220-BZ390-B1 note Handle Assy, Rear Door Outside, LH
2018-12 → 2023-10 ended
F850 —
69220-BZ390-D0 note Handle Assy, Rear Door Outside, LH
2021-04 → 2023-04 ended
F850 —
69220-BZ390-D1 note Handle Assy, Rear Door Outside, LH
2023-04 → 2023-10 ended
F850 —
69220-BZ390-J0 note Handle Assy, Rear Door Outside, LH
2018-12 → 2019-12 ended
F850 —
69220-BZ390-J1 note Handle Assy, Rear Door Outside, LH
2018-12 → 2021-04 ended
F850 —
69220-BZ420-A0 note Handle Assy, Rear Door Outside, LH
2019-12 → 2023-10 ended
F850 —
69220-BZ420-B0 note Handle Assy, Rear Door Outside, LH
2019-12 → 2023-10 ended
F850 —
69220-BZ420-D1 note Handle Assy, Rear Door Outside, LH
2023-04 → 2023-10 ended
F850 —
69220-BZ420-J0 note Handle Assy, Rear Door Outside, LH
2019-12 → 2023-10 ended
F850 —
69330 — Lock Assy, Rear Door, RH
69330-BZ271 Lock Assy, Rear Door, RH
2018-12 → 2023-10 ended
F850 —
69331B — Rod, Rear Door Lock Open, RH
69331-BZ090 Rod, Rear Door Lock Open, RH
2018-12 → 2023-10 ended
F850 —
69332 — Rod, Rear Door Lock Open, LH
69332-BZ090 Rod, Rear Door Lock Open, LH
2018-12 → 2023-10 ended
F850 —
69340 — Lock Assy, Rear Door, LH
69340-BZ271 Lock Assy, Rear Door, LH
2018-12 → 2023-10 ended
F850 —
69410B — Plate Assy, Rear Door Lock Striker
69410-BZ070 Plate Assy, Rear Door Lock Striker
2018-12 → 2023-10 ended
F850 —
69730D — Cable Assy, Rear Door Lock Remote Control, RH
69730-BZ230 note Cable Assy, Rear Door Lock Remote Control, RH
2018-12 → 2023-10 ended
F850 —
69740D — Cable Assy, Rear Door Lock Remote Control LH
69730-BZ230 note Cable Assy, Rear Door Lock Remote Control LH
2018-12 → 2023-10 ended
F850 —
69749K — Clamp, Rear Door Lock
69749-32040 Clamp, Rear Door Lock
2018-12 → 2023-10 ended
F850 —
69770B — Cable Assy, Rear Door Inside Locking, RH
69770-BZ140 note Cable Assy, Rear Door Inside Locking, RH
2018-12 → 2023-10 ended
F850 —
69780B — Cable Assy, Rear Door Inside Locking, LH
69780-BZ130 note Cable Assy, Rear Door Inside Locking, LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
