Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

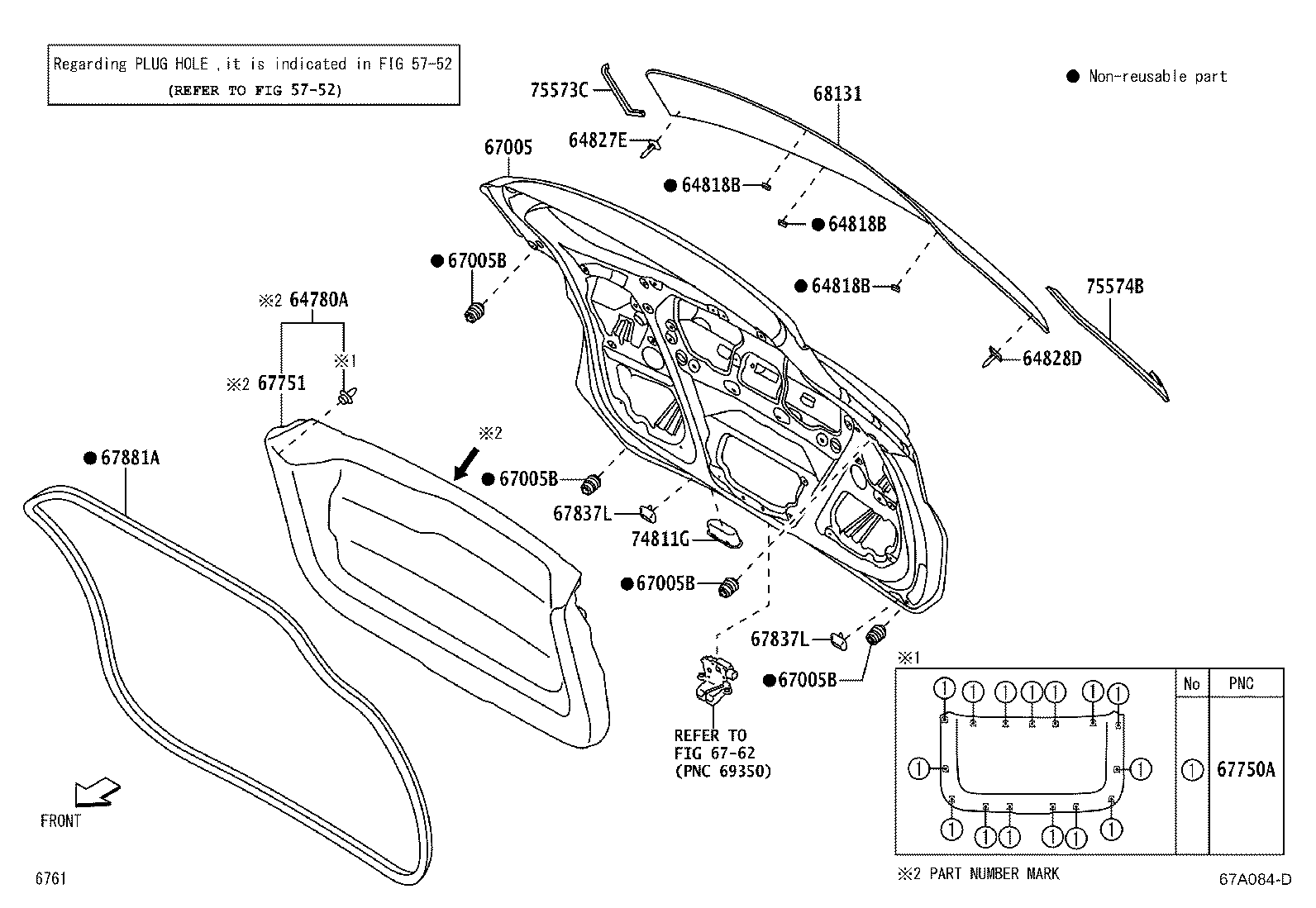

Exploded illustration 67A084D 64818B — SPACER, BACK DOOR GLASS, NO.1 (1 parts) 64780A — PANEL ASSY, BACK DOOR TRIM (2 parts) 67751 — BOARD, BACK DOOR TRIM (2 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (1 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (1 parts) 67837L — SEAL, DOOR DUST PROOF (1 parts) 74811G — HANDLE, DOOR PULL (1 parts) 67837L — SEAL, DOOR DUST PROOF (1 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (1 parts) 67881A — WEATHERSTRIP, BACK DOOR (1 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (1 parts) 64818B — SPACER, BACK DOOR GLASS, NO.1 (1 parts) 64818B — SPACER, BACK DOOR GLASS, NO.1 (1 parts) 64827E — CLIP, BACK WINDOW GLASS, RH (1 parts) 75573C — MOULDING, BACK WINDOW, OUTSIDE (1 parts) 68131 — GLASS, BACK DOOR (1 parts) 64828D — CLIP, BACK WINDOW GLASS, LH (1 parts) 75574B — MOULDING, BACK WINDOW, OUTSIDE LH (1 parts) 67750A — CLIP(FOR BACK DOOR TRIM) (1 parts) 6762 — not listed in this catalogue 67005 — PANEL SUB-ASSY, BACK DOOR (2 parts) 5752 — not listed in this catalogue
67A084D · 20 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
64780A — Panel Assy, Back Door Trim
64780-BZ200-C0 note Panel Assy, Back Door Trim
2018-12 → 2023-08 ended
F850 —
64780-BZ310 note Panel Assy, Back Door Trim
2023-09 → 2023-10 ended
F850 —
64818B — Spacer, Back Door Glass, NO.1
64818-BZ070 Spacer, Back Door Glass, NO.1
2018-12 → 2023-10 ended
F850 —
64827E — Clip, Back Window Glass, RH
64827-BZ110 Clip, Back Window Glass, RH
2018-12 → 2023-10 ended
F850 —
64828D — Clip, Back Window Glass, LH
64828-BZ080 Clip, Back Window Glass, LH
2018-12 → 2023-10 ended
F850 —
67005 — Panel Sub-assy, Back Door
67005-BZB70 Panel Sub-assy, Back Door
2018-12 → 2021-05 ended
F850 —
67005-BZD00 Panel Sub-assy, Back Door
2021-06 → 2023-10 ended
F850 —
67005B — Cushion(FOR BACK DOOR PANEL)
90541-09092 Cushion(FOR BACK DOOR PANEL)
2018-12 → 2023-10 ended
F850 —
67750A — Clip(FOR BACK DOOR TRIM)
90467-10161 Clip(FOR BACK DOOR TRIM)
2018-12 → 2023-10 ended
F850 —
67751 — Board, Back Door Trim
64781-BZ030-C0 note Board, Back Door Trim
2018-12 → 2023-08 ended
F850 —
64781-BZ110 note Board, Back Door Trim
2023-09 → 2023-10 ended
F850 —
67837L — Seal, Door Dust Proof
67837-BZ060 Seal, Door Dust Proof
2018-12 → 2023-10 ended
F850 —
67881A — Weatherstrip, Back Door
67881-BZ190 Weatherstrip, Back Door
2018-12 → 2023-10 ended
F850 —
68131 — Glass, Back Door
68105-BZ300 Glass, Back Door
2018-12 → 2023-10 ended
F850 —
74811G — Handle, Door Pull
74811-BZ040 Handle, Door Pull
2018-12 → 2023-10 ended
F850 —
75573C — Moulding, Back Window, Outside
75573-BZ040 note Moulding, Back Window, Outside
2018-12 → 2023-10 ended
F850 —
75574B — Moulding, Back Window, Outside LH
75574-BZ010 note Moulding, Back Window, Outside LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
