Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

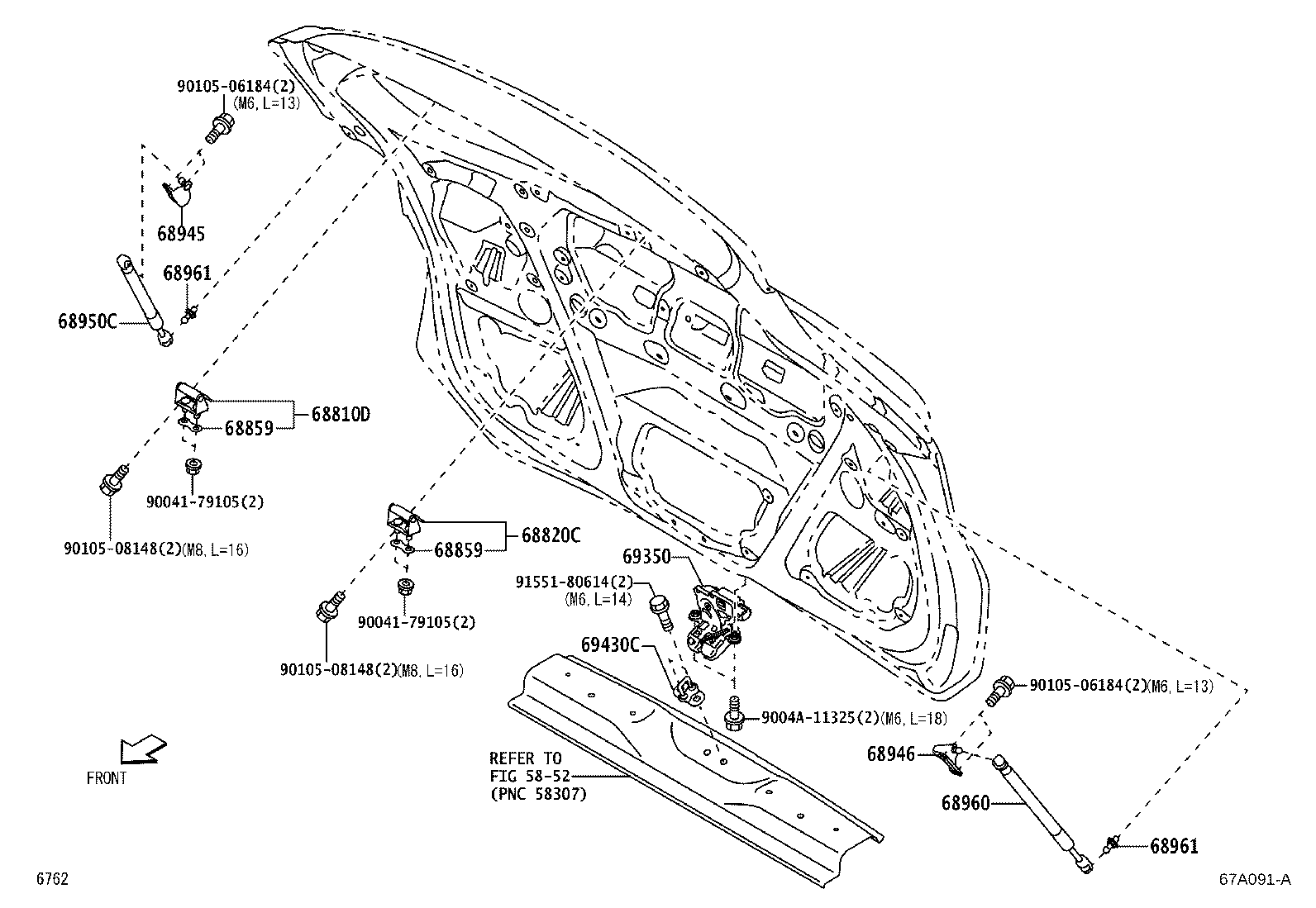

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 68810D — Hinge Assy, Back Door, RH | ||||
| 68801-BZ140 |
Hinge Assy, Back Door, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 68820C — Hinge Assy, Back Door, LH | ||||
| 68801-BZ140 |
Hinge Assy, Back Door, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 68859 — Packing, Back Door Hinge | ||||
| 68859-87101 |
Packing, Back Door Hinge
2018-12 → 2023-10
ended
|
F850 | — | |
| 68945 — Bracket, Back Door Damper Stay, Upper RH | ||||
| 68945-BZ010 |
Bracket, Back Door Damper Stay, Upper RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 68946 — Bracket, Back Door Damper Stay, Upper LH | ||||
| 68945-BZ010 |
Bracket, Back Door Damper Stay, Upper LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 68950C — Stay Assy, Back Door, RH | ||||
| 68950-BZ281 |
Stay Assy, Back Door, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 68960 — Stay Assy, Back Door, LH | ||||
| 68960-BZ281 |
Stay Assy, Back Door, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 68961 — Bolt, Back Door Stay | ||||
| 68459-87202 |
Bolt, Back Door Stay
2018-12 → 2023-10
ended
|
F850 | — | |
| 69350 — Lock Assy, Back Door | ||||
| 69350-BZ170 |
Lock Assy, Back Door
2018-12 → 2023-10
ended
|
F850 | — | |
| 69430C — Striker Assy, Back Door Lock | ||||
| 69430-B2070 |
Striker Assy, Back Door Lock
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
