Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

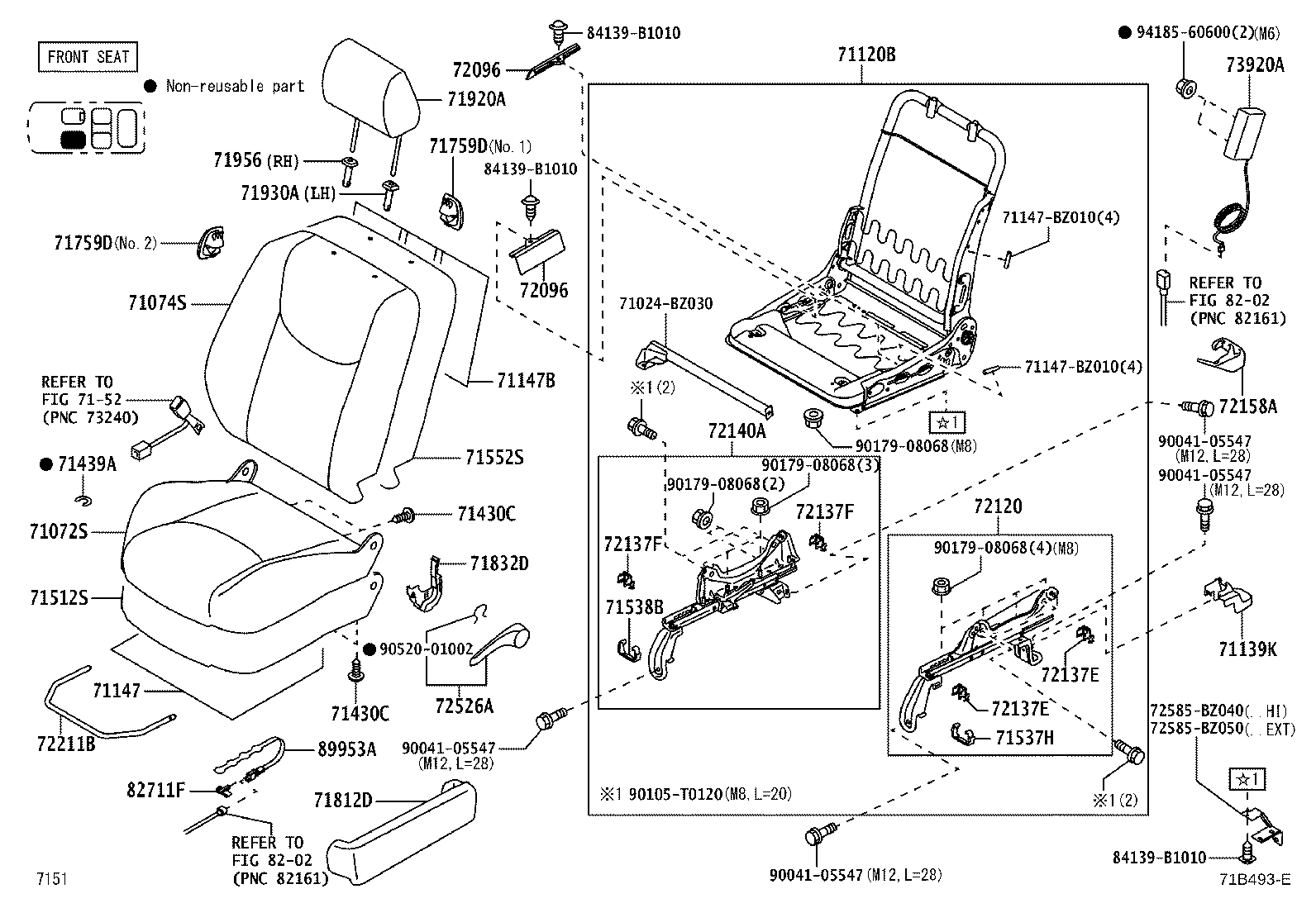

Exploded illustration 71B493E 71920A — HEADREST ASSY, FRONT SEAT, LH (2 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (1 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (1 parts) 71930A — SUPPORT ASSY, FRONT SEAT HEADREST (1 parts) 71956 — SUPPORT, HEADREST (1 parts) 72211B — HANDLE, SEAT TRACK ADJUSTING (1 parts) 71147BZ010 — SILENCER, SEAT SPRING (2 parts) 71147BZ010 — SILENCER, SEAT SPRING (2 parts) 9017908068 — not listed in this catalogue 71120B — FRAME ASSY, FRONT SEAT W/ADJUSTER, LH (1 parts) 71537H — PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) (1 parts) 71538B — PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) (1 parts) 71832D — COVER, FRONT SEAT HINGE, LH (1 parts) 72120 — TRACK ASSY, FRONT SEAT, OUTER LH (1 parts) 71139K — COVER, FRONT SEAT LEG, LH(FOR LH SEAT) (1 parts) 72137F — COVER, SEAT TRACK, NO.2 (1 parts) 72137F — COVER, SEAT TRACK, NO.2 (1 parts) 72137E — COVER, SEAT TRACK, NO.1 (1 parts) 72137E — COVER, SEAT TRACK, NO.1 (1 parts) 72140A — TRACK ASSY, FRONT SEAT,INNER LH (1 parts) 72158A — COVER, REAR SEAT TRACK BRACKET, INNER LH (1 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (1 parts) 72096 — PLATE SUB-ASSY, FRONT SEAT, LH (1 parts) 72096 — PLATE SUB-ASSY, FRONT SEAT, LH (1 parts) 84139B1010 — not listed in this catalogue 84139B1010 — not listed in this catalogue 9052001002 — not listed in this catalogue 71439A — CLIP (2 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71147B — SILENCER, SEAT SPRING (2 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 71147 — SILENCER, SEAT SPRING (1 parts) 71430C — CLIP (2 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (2 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (1 parts) 9004105547 — not listed in this catalogue 9004105547 — not listed in this catalogue 9004105547 — not listed in this catalogue 9004105547 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (1 parts) 71430C — CLIP (2 parts) 71024BZ030 — not listed in this catalogue 9017908068 — not listed in this catalogue 90105T0120 — not listed in this catalogue 72585BZ040 — not listed in this catalogue 72585BZ050 — not listed in this catalogue 84139B1010 — not listed in this catalogue 89953A — SENSOR, BELT WARNING OCCUPANT DETECTION (1 parts) 82711F — CLAMP, WIRING HARNESS (2 parts) 8202 — not listed in this catalogue 73920A — AIRBAG ASSY, FRONT SEAT, LH (1 parts) 9418560600 — not listed in this catalogue 8202 — not listed in this catalogue 7152 — not listed in this catalogue 9017908068 — not listed in this catalogue 9017908068 — not listed in this catalogue
71B493E · 36 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
36 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-BZK90-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 EXT —
71072-BZL90-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 HI —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-BZG40-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 EXT —
71074-BZJ20-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 HI —
71120B — Frame Assy, Front Seat W/Adjuster, LH
71120-BZ250 Frame Assy, Front Seat W/Adjuster, LH
2018-12 → 2023-10 ended
F850 —
71139K — Cover, Front Seat Leg, LH(FOR LH SEAT)
71139-BZ090-C0 note Cover, Front Seat Leg, LH(FOR LH SEAT)
2018-12 → 2023-10 ended
F850 —
71147 — Silencer, Seat Spring
71147-B1020 Silencer, Seat Spring
2018-12 → 2023-10 ended
F850 —
71147B — Silencer, Seat Spring
71147-B2030 Silencer, Seat Spring
2018-12 → 2023-10 ended
F850 HI —
71147-BZ071 Silencer, Seat Spring
2018-12 → 2023-10 ended
F850 EXT —
71430C — Clip
90044-68185-C1 note Clip
2018-12 → 2023-10 ended
F850 HI —
90044-68185-C1 note Clip
2018-12 → 2023-10 ended
F850 EXT —
71439A — Clip
71812-87Z03 Clip
2018-12 → 2023-10 ended
F850 EXT —
9004A-46143 Clip
2018-12 → 2023-10 ended
F850 HI —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71501-BZ470 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 —
71537H — Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
71537-BZ030 Protector, Front Seat Cushion Edge, RH(FOR LH SEAT)
2018-12 → 2023-10 ended
F850 —
71538B — Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71537-BZ030 Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
2018-12 → 2023-10 ended
F850 —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71506-BZ380 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 —
71759D — Hook, Front Seatback, NO.2
71759-BZ030-C0 note Hook, Front Seatback, NO.2
2018-12 → 2023-10 ended
F850 —
71812D — Shield, Front Seat Cushion, LH
71812-BZ190-C0 note Shield, Front Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
71832D — Cover, Front Seat Hinge, LH
71832-BZ090-C0 note Cover, Front Seat Hinge, LH
2018-12 → 2023-10 ended
F850 —
71920A — Headrest Assy, Front Seat, LH
71910-BZE50-C1 note Headrest Assy, Front Seat, LH
2018-12 → 2023-10 ended
F850 EXT —
71910-BZF70-C0 note Headrest Assy, Front Seat, LH
2018-12 → 2023-10 ended
F850 HI —
71930A — Support Assy, Front Seat Headrest
71930-BZ060-C0 note Support Assy, Front Seat Headrest
2018-12 → 2023-10 ended
F850 —
71956 — Support, Headrest
71931-BZ070-C0 note Support, Headrest
2018-12 → 2023-10 ended
F850 —
72096 — Plate Sub-assy, Front Seat, LH
71127-BZ010 Plate Sub-assy, Front Seat, LH
2018-12 → 2023-10 ended
F850 —
72120 — Track Assy, Front Seat, Outer LH
72120-BZ220 Track Assy, Front Seat, Outer LH
2018-12 → 2023-10 ended
F850 —
72137E — Cover, Seat Track, NO.1
72137-BZ040 Cover, Seat Track, NO.1
2018-12 → 2023-10 ended
F850 —
72137F — Cover, Seat Track, NO.2
72137-BZ040 Cover, Seat Track, NO.2
2018-12 → 2023-10 ended
F850 —
72140A — Track Assy, Front Seat,Inner LH
72140-BZ180 Track Assy, Front Seat,Inner LH
2018-12 → 2023-10 ended
F850 —
72158A — Cover, Rear Seat Track Bracket, Inner LH
72158-BZ060-C0 note Cover, Rear Seat Track Bracket, Inner LH
2018-12 → 2023-10 ended
F850 —
72211B — Handle, Seat Track Adjusting
72211-BZ150 Handle, Seat Track Adjusting
2018-12 → 2023-10 ended
F850 —
72526A — Handle, Reclining Adjuster Release, LH
72526-BZ100-C0 note Handle, Reclining Adjuster Release, LH
2018-12 → 2023-10 ended
F850 —
73920A — Airbag Assy, Front Seat, LH
73920-B1050 Airbag Assy, Front Seat, LH
2018-12 → 2023-10 ended
F850 —
82711F — Clamp, Wiring Harness
82711-BZ280 note Clamp, Wiring Harness
2018-12 → 2023-10 ended
F850 —
90044-63270 note Clamp, Wiring Harness
2018-12 → 2023-10 ended
F850 —
89953A — Sensor, Belt Warning Occupant Detection
89953-B2010 Sensor, Belt Warning Occupant Detection
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
