Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

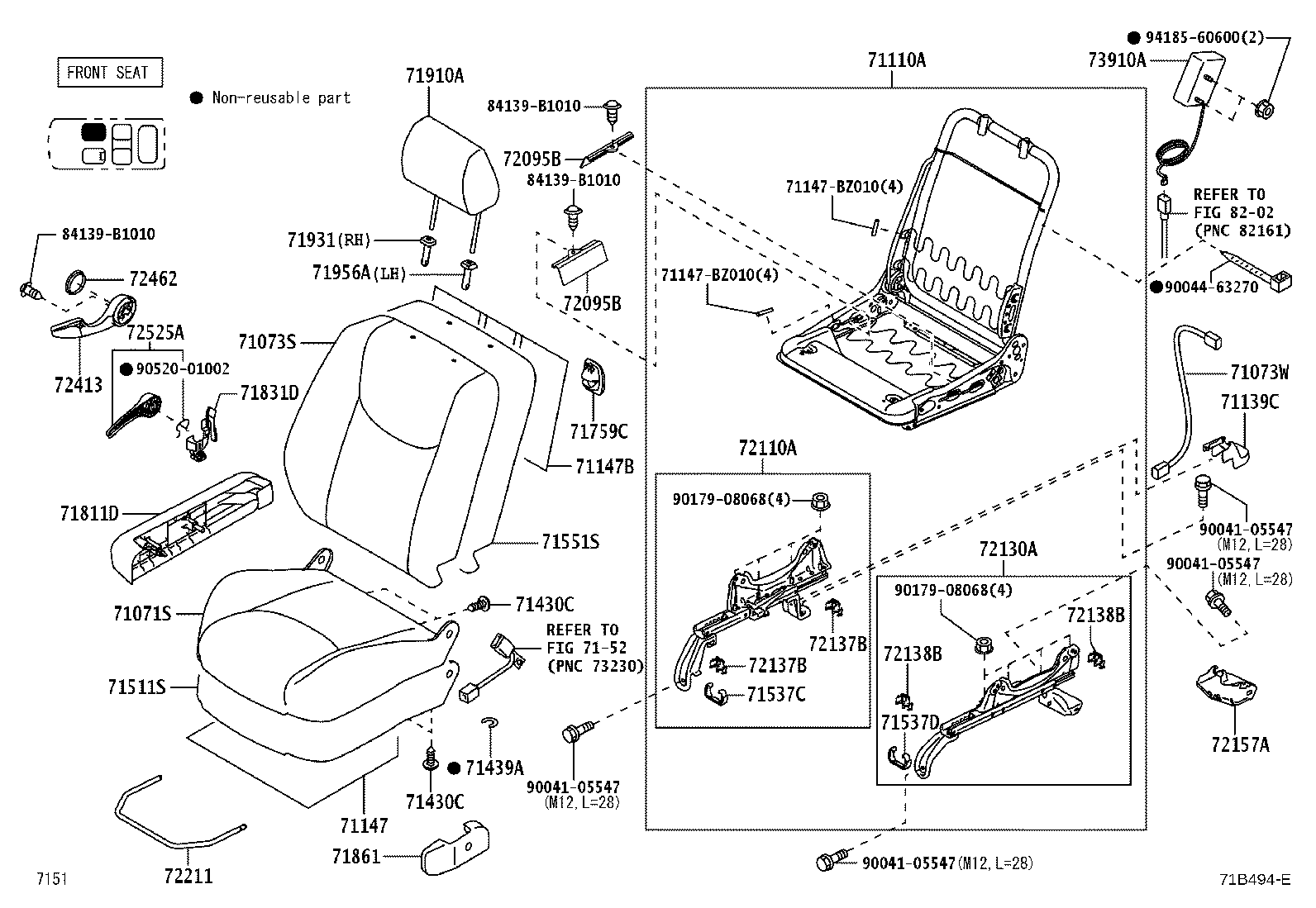

Exploded illustration 71B494E 9004105547 — not listed in this catalogue 9004105547 — not listed in this catalogue 9004463270 — not listed in this catalogue 9004105547 — not listed in this catalogue 71110A — FRAME ASSY, FRONT SEAT W/ADJUSTER, RH (1 parts) 71430C — CLIP (2 parts) 71147 — SILENCER, SEAT SPRING (1 parts) 71139C — COVER, FRONT SEAT LEG, RH (1 parts) 71073W — WIRE, FRONT SEATBACK COVER (1 parts) 72095B — PLATE SUB-ASSY, FRONT SEAT, RH (1 parts) 71759C — HOOK, FRONT SEATBACK, NO.1 (1 parts) 72095B — PLATE SUB-ASSY, FRONT SEAT, RH (1 parts) 71537C — PROTECTOR, FRONT SEAT CUSHION EDGE, RH (1 parts) 71537D — PROTECTOR, FRONT SEAT CUSHION EDGE, LH (1 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 71147B — SILENCER, SEAT SPRING (2 parts) 71910A — HEADREST ASSY, FRONT SEAT (2 parts) 71956A — SUPPORT, FRONT SEAT HEADREST (1 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (1 parts) 72110A — TRACK ASSY, FRONT SEAT, OUTER RH (1 parts) 72130A — TRACK ASSY, FRONT SEAT, INNER RH (1 parts) 72138B — COVER, SEAT TRACK, LH (1 parts) 72138B — COVER, SEAT TRACK, LH (1 parts) 72137B — COVER, SEAT TRACK, RH (1 parts) 72137B — COVER, SEAT TRACK, RH (1 parts) 72157A — COVER, SEAT TRACK BRACKET, INNER RH (1 parts) 72211 — HANDLE, SEAT TRACK ADJUSTING (1 parts) 84139B1010 — not listed in this catalogue 84139B1010 — not listed in this catalogue 9017908068 — not listed in this catalogue 71439A — CLIP (2 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (2 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (1 parts) 84139B1010 — not listed in this catalogue 72413 — LEVER, VERTICAL ADJUSTER LOCK (2 parts) 72462 — COVER, VERTICAL ADJUSTER RH (1 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (1 parts) 71831D — COVER, FRONT SEAT HINGE, RH (1 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (1 parts) 9052001002 — not listed in this catalogue 71147BZ010 — SILENCER, SEAT SPRING (2 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (1 parts) 9004105547 — not listed in this catalogue 71147BZ010 — SILENCER, SEAT SPRING (2 parts) 71430C — CLIP (2 parts) 9017908068 — not listed in this catalogue 73910A — AIRBAG ASSY, FRONT SEAT, RH (1 parts) 9418560600 — not listed in this catalogue 8202 — not listed in this catalogue 7152 — not listed in this catalogue
71B494E · 37 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-BZK90-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 EXT —
71071-BZL90-C0 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 HI —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-BZM00-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 EXT —
71073-BZN10-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 HI —
71073W — Wire, Front Seatback Cover
78757-BZ010 Wire, Front Seatback Cover
2018-12 → 2023-10 ended
F850 —
71110A — Frame Assy, Front Seat W/Adjuster, RH
71110-BZ290 Frame Assy, Front Seat W/Adjuster, RH
2018-12 → 2023-10 ended
F850 —
71139C — Cover, Front Seat Leg, RH
71139-BZ050-C0 note Cover, Front Seat Leg, RH
2018-12 → 2023-10 ended
F850 —
71147 — Silencer, Seat Spring
71147-B1020 Silencer, Seat Spring
2018-12 → 2023-10 ended
F850 —
71147B — Silencer, Seat Spring
71147-B2030 Silencer, Seat Spring
2018-12 → 2023-10 ended
F850 HI —
71147-BZ071 Silencer, Seat Spring
2018-12 → 2023-10 ended
F850 EXT —
71430C — Clip
90044-68185-C1 note Clip
2018-12 → 2023-10 ended
F850 HI —
90044-68185-C1 note Clip
2018-12 → 2023-10 ended
F850 EXT —
71439A — Clip
71812-87Z03 Clip
2018-12 → 2023-10 ended
F850 EXT —
9004A-46143 Clip
2018-12 → 2023-10 ended
F850 HI —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71501-BZ470 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 —
71537C — Protector, Front Seat Cushion Edge, RH
71537-BZ030 Protector, Front Seat Cushion Edge, RH
2018-12 → 2023-10 ended
F850 —
71537D — Protector, Front Seat Cushion Edge, LH
71537-BZ030 Protector, Front Seat Cushion Edge, LH
2018-12 → 2023-10 ended
F850 —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71505-BZ500 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 —
71759C — Hook, Front Seatback, NO.1
71759-BZ010-C0 note Hook, Front Seatback, NO.1
2018-12 → 2023-10 ended
F850 —
71811D — Shield, Front Seat Cushion, RH
71811-BZ030-C0 note Shield, Front Seat Cushion, RH
2018-12 → 2023-10 ended
F850 —
71831D — Cover, Front Seat Hinge, RH
71831-BZ040-C0 note Cover, Front Seat Hinge, RH
2018-12 → 2023-10 ended
F850 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-BZ120-C0 note Shield, Front Seat Cushion, Inner RH
2018-12 → 2023-10 ended
F850 —
71910A — Headrest Assy, Front Seat
71910-BZE50-C1 note Headrest Assy, Front Seat
2018-12 → 2023-10 ended
F850 EXT —
71910-BZF70-C0 note Headrest Assy, Front Seat
2018-12 → 2023-10 ended
F850 HI —
71931 — Support, Front Seat Headrest
71931-BZ070-C0 note Support, Front Seat Headrest
2018-12 → 2023-10 ended
F850 —
71956A — Support, Front Seat Headrest
71930-BZ060-C0 note Support, Front Seat Headrest
2018-12 → 2023-10 ended
F850 —
72095B — Plate Sub-assy, Front Seat, RH
71127-BZ010 Plate Sub-assy, Front Seat, RH
2018-12 → 2023-10 ended
F850 —
72110A — Track Assy, Front Seat, Outer RH
72110-BZ210 Track Assy, Front Seat, Outer RH
2018-12 → 2023-10 ended
F850 —
72130A — Track Assy, Front Seat, Inner RH
72130-BZ180 Track Assy, Front Seat, Inner RH
2018-12 → 2023-10 ended
F850 —
72137B — Cover, Seat Track, RH
72137-BZ040 Cover, Seat Track, RH
2018-12 → 2023-10 ended
F850 —
72138B — Cover, Seat Track, LH
72137-BZ040 Cover, Seat Track, LH
2018-12 → 2023-10 ended
F850 —
72157A — Cover, Seat Track Bracket, Inner RH
72157-BZ070-C0 note Cover, Seat Track Bracket, Inner RH
2018-12 → 2023-10 ended
F850 —
72211 — Handle, Seat Track Adjusting
72211-BZ140 Handle, Seat Track Adjusting
2018-12 → 2023-10 ended
F850 —
72413 — Lever, Vertical Adjuster Lock
72413-BZ030-C0 note Lever, Vertical Adjuster Lock
2018-12 → 2023-10 ended
F850 HI —
72413-BZ060 Lever, Vertical Adjuster Lock
2018-12 → 2023-10 ended
F850 EXT —
72462 — Cover, Vertical Adjuster RH
72462-BZ050-C0 note Cover, Vertical Adjuster RH
2018-12 → 2023-10 ended
F850 —
72525A — Handle, Reclining Adjuster Release, RH
72525-BZ110-C0 note Handle, Reclining Adjuster Release, RH
2018-12 → 2023-10 ended
F850 —
73910A — Airbag Assy, Front Seat, RH
73910-B1050 Airbag Assy, Front Seat, RH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
