Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

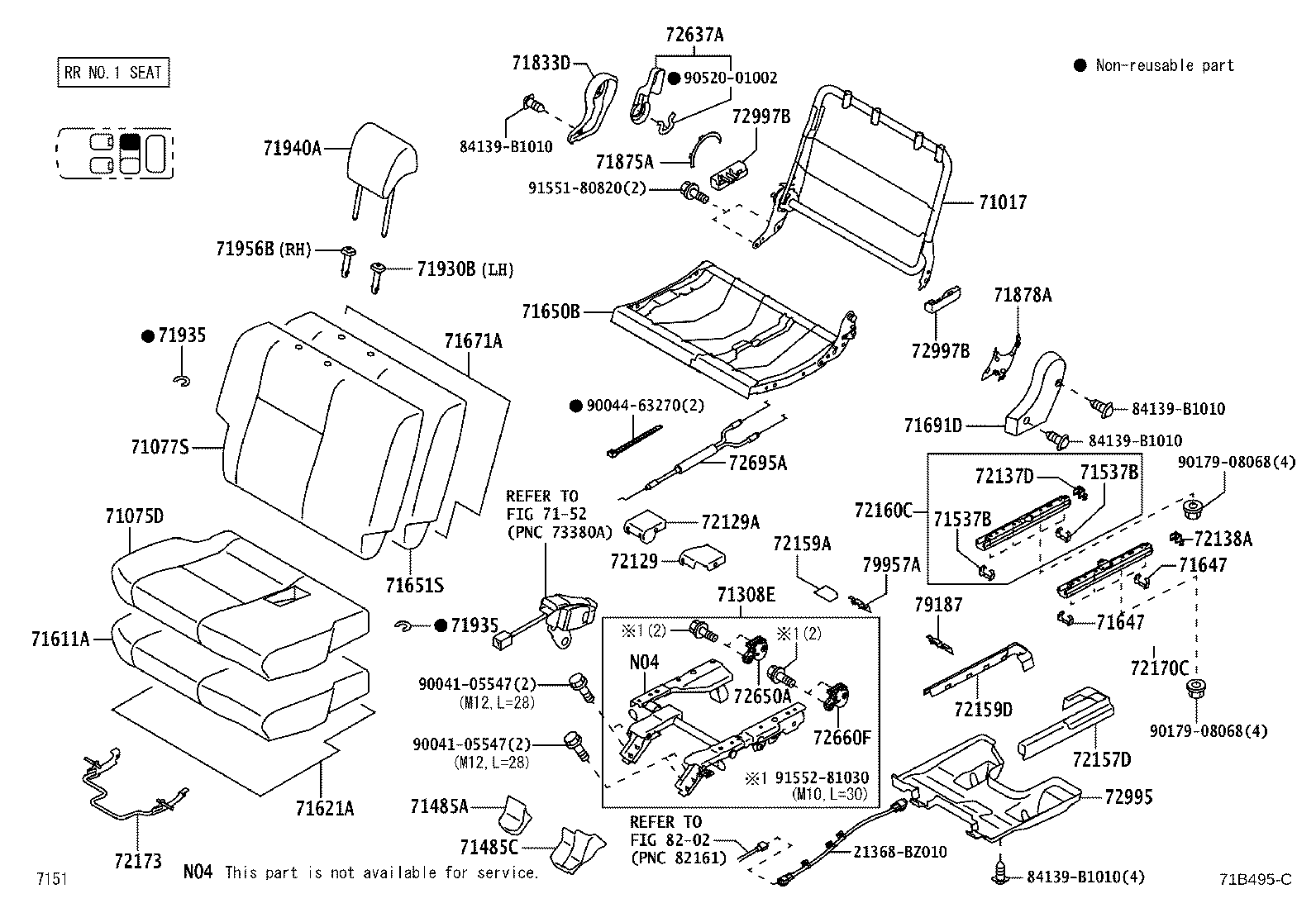

Exploded illustration 71B495C 9155281030 — not listed in this catalogue 71537B — PROTECTOR, REAR SEAT CUSHION (1 parts) 71537B — PROTECTOR, REAR SEAT CUSHION (1 parts) 71647 — PROTECTOR, REAR SEAT CUSHION EDGE (1 parts) 71647 — PROTECTOR, REAR SEAT CUSHION EDGE (1 parts) 71485A — COVER, REAR SEAT HINGE, NO.2 RH (1 parts) 71485C — COVER, REAR SEAT HINGE, RH (1 parts) 71621A — PAD, REAR SEAT CUSHION SILENCER, A (1 parts) 72173 — HANDLE, REAR SEAT TRACK ADJUSTING (2 parts) 71671A — PAD, REAR SEATBACK SILENCER, A (1 parts) 71940A — HEADREST ASSY, REAR SEAT (2 parts) 71956B — SUPPORT, REAR SEAT HEADREST (1 parts) 71930B — SUPPORT ASSY, REAR SEAT HEADREST (1 parts) 72997B — COVER, REAR SEATBACK (1 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (1 parts) 71075D — COVER SUB-ASSY, REAR SEAT CUSHION, RH (2 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (2 parts) 71875A — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 71611A — PAD, REAR SEAT CUSHION, RH (1 parts) 71650B — SPRING ASSY, REAR SEAT CUSHION, RH (1 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 71833D — COVER REAR SEAT RECLINING, RH (1 parts) 72997B — COVER, REAR SEATBACK (1 parts) 71878A — COVER, REAR SEAT RECLINING, INNER RH (1 parts) 72637A — HANDLE, REAR SEAT LOCK (1 parts) 72695A — CABLE, REAR SEAT LOCK CONTROL (1 parts) 71691D — COVER, REAR SEAT CUSHION HINGE, UPPER RH (1 parts) 84139B1010 — not listed in this catalogue 9155180820 — not listed in this catalogue 84139B1010 — not listed in this catalogue 21368BZ010 — not listed in this catalogue 84139B1010 — not listed in this catalogue 9004463270 — not listed in this catalogue 84139B1010 — not listed in this catalogue 9052001002 — not listed in this catalogue 71308E — LEG SUB-ASSY, REAR SEAT, RH (1 parts) 79957A — COVER, REAR SEAT REAR BRACKET, RH (1 parts) 72159A — COVER, REAR SEAT TRACK BRACKET (1 parts) 72650A — LOCK ASSY, REAR SEAT, RH (1 parts) 72660F — LOCK ASSY, REAR SEAT, LH (1 parts) 72157D — COVER, SEAT TRACK BRACKER, INNER RH (1 parts) 72159D — COVER, REAR SEAT TRACK BRACKET, OUTER RH (1 parts) 79187 — COVER, NO.1 SEAT INNER BRACKET (1 parts) 72129A — PROTECTOR, SEAT TRACK LOWER RAIL, NO.2 (1 parts) 72129 — PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 (1 parts) 72160C — TRACK ASSY, REAR NO.1 SEAT, OUTER RH (1 parts) 72170C — TRACK ASSY, REAR NO.1 SEAT, INNER RH (1 parts) 72995 — COVER, REAR SEAT CUSHION, RH (1 parts) 9004105547 — not listed in this catalogue 9004105547 — not listed in this catalogue 71935 — CLIP (1 parts) 71935 — CLIP (1 parts) 72137D — COVER, REAR SEAT TRACK, RH (1 parts) 72138A — COVER, REAR SEAT TRACK, LH (1 parts) 9017908068 — not listed in this catalogue 9017908068 — not listed in this catalogue 8202 — not listed in this catalogue 7152 — not listed in this catalogue
71B495C · 43 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
71017 — Frame Sub-assy, Rear Seatback, RH
71017-BZ410 Frame Sub-assy, Rear Seatback, RH
2018-12 → 2023-10 ended
F850 —
71075D — Cover Sub-assy, Rear Seat Cushion, RH
71075-BZD40-C1 note Cover Sub-assy, Rear Seat Cushion, RH
2018-12 → 2023-10 ended
F850 EXT —
71075-BZK50-C0 note Cover Sub-assy, Rear Seat Cushion, RH
2018-12 → 2023-10 ended
F850 HI —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-BZG50-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 EXT —
71077-BZJ50-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 HI —
71308E — Leg Sub-assy, Rear Seat, RH
71308-BZ170 Leg Sub-assy, Rear Seat, RH
2018-12 → 2023-10 ended
F850 —
71485A — Cover, Rear Seat Hinge, NO.2 RH
71485-BZ140-C0 note Cover, Rear Seat Hinge, NO.2 RH
2018-12 → 2023-10 ended
F850 —
71485C — Cover, Rear Seat Hinge, RH
71485-BZ150-C0 note Cover, Rear Seat Hinge, RH
2018-12 → 2023-10 ended
F850 —
71537B — Protector, Rear Seat Cushion
71537-BZ030 Protector, Rear Seat Cushion
2018-12 → 2023-10 ended
F850 —
71611A — Pad, Rear Seat Cushion, RH
71503-BZ560 Pad, Rear Seat Cushion, RH
2018-12 → 2023-10 ended
F850 —
71621A — Pad, Rear Seat Cushion Silencer, A
71621-BZ060 Pad, Rear Seat Cushion Silencer, A
2018-12 → 2023-10 ended
F850 —
71647 — Protector, Rear Seat Cushion Edge
71537-BZ030 Protector, Rear Seat Cushion Edge
2018-12 → 2023-10 ended
F850 —
71650B — Spring Assy, Rear Seat Cushion, RH
71650-BZ160 Spring Assy, Rear Seat Cushion, RH
2018-12 → 2023-10 ended
F850 —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71507-BZ370 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 —
71671A — Pad, Rear Seatback Silencer, A
71671-BZ060 Pad, Rear Seatback Silencer, A
2018-12 → 2023-10 ended
F850 —
71691D — Cover, Rear Seat Cushion Hinge, Upper RH
71691-BZ040-C0 note Cover, Rear Seat Cushion Hinge, Upper RH
2018-12 → 2023-10 ended
F850 —
71833D — Cover Rear Seat Reclining, RH
71833-BZ060-C0 note Cover Rear Seat Reclining, RH
2018-12 → 2023-10 ended
F850 —
71875A — Cover, Reclining Adjuster Inside, RH
71875-BZ020-C0 note Cover, Reclining Adjuster Inside, RH
2018-12 → 2023-10 ended
F850 —
71878A — Cover, Rear Seat Reclining, Inner RH
71878-BZ050-C0 note Cover, Rear Seat Reclining, Inner RH
2018-12 → 2023-10 ended
F850 —
71930B — Support Assy, Rear Seat Headrest
71930-BZ060-C0 note Support Assy, Rear Seat Headrest
2018-12 → 2023-10 ended
F850 —
71935 — Clip
9004A-46143 Clip
2018-12 → 2023-10 ended
F850 —
71940A — Headrest Assy, Rear Seat
71940-BZC70-C1 note Headrest Assy, Rear Seat
2018-12 → 2023-10 ended
F850 EXT —
71940-BZD90-C0 note Headrest Assy, Rear Seat
2018-12 → 2023-10 ended
F850 HI —
71956B — Support, Rear Seat Headrest
71931-BZ070-C0 note Support, Rear Seat Headrest
2018-12 → 2023-10 ended
F850 —
72129 — Protector, Seat Track Lower Rail, NO.1
72129-BZ020-C0 note Protector, Seat Track Lower Rail, NO.1
2018-12 → 2023-10 ended
F850 —
72129A — Protector, Seat Track Lower Rail, NO.2
72129-BZ030-C0 note Protector, Seat Track Lower Rail, NO.2
2018-12 → 2023-10 ended
F850 —
72137D — Cover, Rear Seat Track, RH
72137-BZ040 Cover, Rear Seat Track, RH
2018-12 → 2023-10 ended
F850 —
72138A — Cover, Rear Seat Track, LH
72137-BZ040 Cover, Rear Seat Track, LH
2018-12 → 2023-10 ended
F850 —
72157D — Cover, Seat Track Bracker, Inner RH
72157-BZ080-C0 note Cover, Seat Track Bracker, Inner RH
2018-12 → 2023-10 ended
F850 —
72159A — Cover, Rear Seat Track Bracket
72159-BZ110-C0 note Cover, Rear Seat Track Bracket
2018-12 → 2023-10 ended
F850 —
72159D — Cover, Rear Seat Track Bracket, Outer RH
72159-BZ070-C0 note Cover, Rear Seat Track Bracket, Outer RH
2018-12 → 2023-10 ended
F850 —
72160C — Track Assy, Rear NO.1 Seat, Outer RH
72160-BZ080 Track Assy, Rear NO.1 Seat, Outer RH
2018-12 → 2023-10 ended
F850 —
72170C — Track Assy, Rear NO.1 Seat, Inner RH
72170-BZ070 Track Assy, Rear NO.1 Seat, Inner RH
2018-12 → 2023-10 ended
F850 —
72173 — Handle, Rear Seat Track Adjusting
72173-BZ030 Handle, Rear Seat Track Adjusting
2018-12 → 2019-05 ended
F850 —
72173-BZ031 Handle, Rear Seat Track Adjusting
2019-06 → 2023-10 ended
F850 —
72637A — Handle, Rear Seat Lock
72637-BZ110-C0 note Handle, Rear Seat Lock
2018-12 → 2023-10 ended
F850 —
72650A — Lock Assy, Rear Seat, RH
72680-BZ210 Lock Assy, Rear Seat, RH
2018-12 → 2023-10 ended
F850 —
72660F — Lock Assy, Rear Seat, LH
72680-BZ210 Lock Assy, Rear Seat, LH
2018-12 → 2023-10 ended
F850 —
72695A — Cable, Rear Seat Lock Control
72695-BZ200 Cable, Rear Seat Lock Control
2018-12 → 2023-10 ended
F850 —
72995 — Cover, Rear Seat Cushion, RH
72694-BZ160-C0 note Cover, Rear Seat Cushion, RH
2018-12 → 2023-10 ended
F850 —
72997B — Cover, Rear Seatback
72996-BZ200 Cover, Rear Seatback
2018-12 → 2023-10 ended
F850 —
79187 — Cover, NO.1 Seat Inner Bracket
79187-BZ140-C0 note Cover, NO.1 Seat Inner Bracket
2018-12 → 2023-10 ended
F850 —
79957A — Cover, Rear Seat Rear Bracket, RH
79188-BZ010-C0 note Cover, Rear Seat Rear Bracket, RH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
