Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

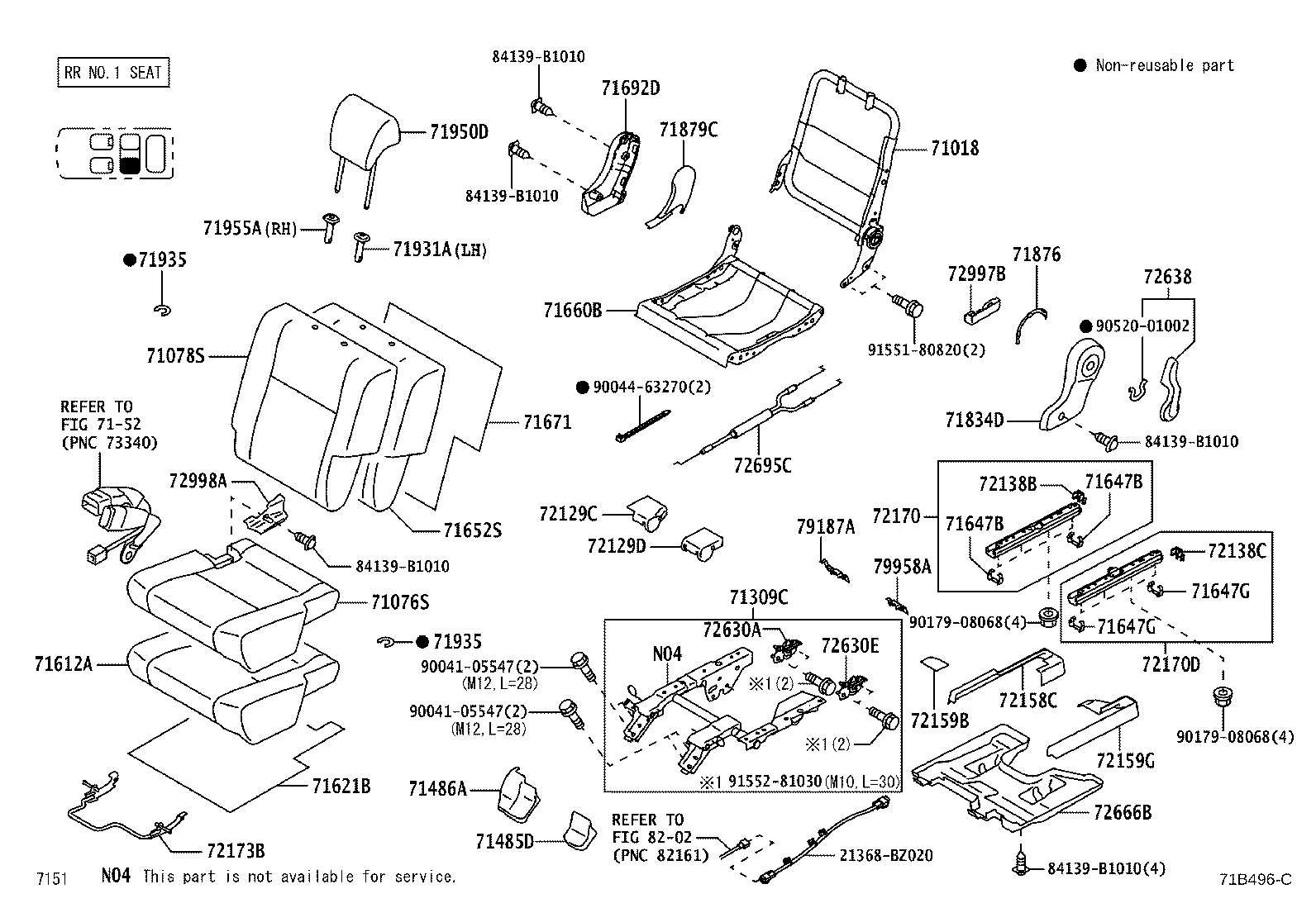

Exploded illustration 71B496C 84139B1010 — not listed in this catalogue 72997B — COVER, REAR SEATBACK (1 parts) 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (1 parts) 71076S — COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) (2 parts) 71078S — COVER, REAR SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 72998A — COVER, NO.1 SEAT CUSHION, LH (1 parts) 71612A — PAD, REAR SEAT CUSHION, LH (1 parts) 71621B — PAD, REAR SEAT CUSHION SILENCER, NO.2 (1 parts) 71652S — PAD, REAR SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 71660B — SPRING ASSY, REAR SEAT CUSHION, LH (1 parts) 71671 — PAD, REAR SEATBACK SILENCER, A (1 parts) 71834D — COVER, REAR SEAT RECLINING, LH (1 parts) 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 71879C — COVER, REAR SEAT RECLINING, INNER LH (1 parts) 72638 — HANDLE, REAR SEAT LOCK, LH (1 parts) 72695C — CABLE, REAR SEAT LOCK CONTROL, LH (1 parts) 71692D — COVER, REAR SEAT CUSHION HINGE, UPPER LH (1 parts) 84139B1010 — not listed in this catalogue 9004463270 — not listed in this catalogue 84139B1010 — not listed in this catalogue 9155180820 — not listed in this catalogue 71950D — HEADREST ASSY, REAR SEAT, LH (2 parts) 71955A — SUPPORT, REAR SEAT HEADREST (2 parts) 71931A — SUPPORT, REAR SEAT HEADREST (1 parts) 84139B1010 — not listed in this catalogue 71935 — CLIP (1 parts) 71935 — CLIP (1 parts) 9155281030 — not listed in this catalogue 72173B — HANDLE, REAR SEAT TRACK ADJUSTING, LH (2 parts) 9052001002 — not listed in this catalogue 21368BZ020 — not listed in this catalogue 71309C — LEG SUB-ASSY, REAR SEAT, REAR LH (1 parts) 72630A — LOCK ASSY, REAR NO.1 SEAT (1 parts) 72630E — LOCK ASSY, REAR NO.1 SEAT (1 parts) 9004105547 — not listed in this catalogue 9004105547 — not listed in this catalogue 72159G — COVER, REAR SEAT TRACK BRACKET, LH (1 parts) 72159B — COVER, REAR SEAT TRACK BRACKET, OUTER (1 parts) 72158C — COVER, SEAT TRACK BRACKET, INNER LH (1 parts) 72666B — COVER, REAR SEAT LOCK, LH (1 parts) 84139B1010 — not listed in this catalogue 79958A — COVER, REAR SEAT REAR BRACKET, LH (1 parts) 79187A — COVER, NO.1 SEAT INNER BRACKET, LH (1 parts) 71647B — PROTECTOR, REAR SEAT CUSHION EDGE (1 parts) 71647B — PROTECTOR, REAR SEAT CUSHION EDGE (1 parts) 72170 — TRACK ASSY, REAR SEAT, OUTER LH (1 parts) 72170D — TRACK ASSY, REAR SEAT, OUTER LH (1 parts) 71647G — PROTECTOR, REAR SEAT CUSHION EDGE (1 parts) 71647G — PROTECTOR, REAR SEAT CUSHION EDGE (1 parts) 72138B — COVER, SEAT TRACK, LH (1 parts) 72138C — COVER, SEAT TRACK, LH (1 parts) 71486A — COVER, REAR SEAT HINGE, NO.2 LH (1 parts) 71485D — COVER, REAR SEAT HINGE, LH (1 parts) 72129C — PROTECTOR, SEAT TRACK LOWER RAIL, NO.3 (1 parts) 72129D — PROTECTOR, SEAT TRACK LOWER RAIL, NO.4 (1 parts) 9017908068 — not listed in this catalogue 9017908068 — not listed in this catalogue 8202 — not listed in this catalogue 7152 — not listed in this catalogue
71B496C · 43 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
71018 — Frame Sub-assy, Rear Seatback, LH
71018-BZ250 Frame Sub-assy, Rear Seatback, LH
2018-12 → 2023-10 ended
F850 —
71076S — Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71076-BZA40-C1 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 EXT —
71076-BZE30-C0 note Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 HI —
71078S — Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71078-BZ870-C1 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 EXT —
71078-BZE00-C0 note Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 HI —
71309C — Leg Sub-assy, Rear Seat, Rear LH
71309-BZ180 Leg Sub-assy, Rear Seat, Rear LH
2018-12 → 2023-10 ended
F850 —
71485D — Cover, Rear Seat Hinge, LH
71485-BZ160-C0 note Cover, Rear Seat Hinge, LH
2018-12 → 2023-10 ended
F850 —
71486A — Cover, Rear Seat Hinge, NO.2 LH
71485-BZ140-C0 note Cover, Rear Seat Hinge, NO.2 LH
2018-12 → 2023-10 ended
F850 —
71612A — Pad, Rear Seat Cushion, LH
71504-BZ390 Pad, Rear Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
71621B — Pad, Rear Seat Cushion Silencer, NO.2
71621-BZ050 Pad, Rear Seat Cushion Silencer, NO.2
2018-12 → 2023-10 ended
F850 —
71647B — Protector, Rear Seat Cushion Edge
71537-BZ030 Protector, Rear Seat Cushion Edge
2018-12 → 2023-10 ended
F850 —
71647G — Protector, Rear Seat Cushion Edge
71537-BZ030 Protector, Rear Seat Cushion Edge
2018-12 → 2023-10 ended
F850 —
71652S — Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71508-BZ340 Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
2018-12 → 2023-10 ended
F850 —
71660B — Spring Assy, Rear Seat Cushion, LH
71660-BZ150 Spring Assy, Rear Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
71671 — Pad, Rear Seatback Silencer, A
71671-BZ070 Pad, Rear Seatback Silencer, A
2018-12 → 2023-10 ended
F850 —
71692D — Cover, Rear Seat Cushion Hinge, Upper LH
71692-BZ060-C0 note Cover, Rear Seat Cushion Hinge, Upper LH
2018-12 → 2023-10 ended
F850 —
71834D — Cover, Rear Seat Reclining, LH
71834-BZ070-C0 note Cover, Rear Seat Reclining, LH
2018-12 → 2023-10 ended
F850 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-BZ020-C0 note Cover, Reclining Adjuster Inside, LH
2018-12 → 2023-10 ended
F850 —
71879C — Cover, Rear Seat Reclining, Inner LH
71879-BZ050-C0 note Cover, Rear Seat Reclining, Inner LH
2018-12 → 2023-10 ended
F850 —
71931A — Support, Rear Seat Headrest
71930-BZ050-C0 note Support, Rear Seat Headrest
2018-12 → 2023-10 ended
F850 —
71935 — Clip
9004A-46143 Clip
2018-12 → 2023-10 ended
F850 —
71950D — Headrest Assy, Rear Seat, LH
71940-BZC70-C1 note Headrest Assy, Rear Seat, LH
2018-12 → 2023-10 ended
F850 EXT —
71940-BZD90-C0 note Headrest Assy, Rear Seat, LH
2018-12 → 2023-10 ended
F850 HI —
71955A — Support, Rear Seat Headrest
71931-BZ060-C0 note Support, Rear Seat Headrest
2018-12 → 2023-10 ended
F850 EXT —
71931-BZ060-C0 note Support, Rear Seat Headrest
2018-12 → 2023-10 ended
F850 HI —
72129C — Protector, Seat Track Lower Rail, NO.3
72129-BZ040-C0 note Protector, Seat Track Lower Rail, NO.3
2018-12 → 2023-10 ended
F850 —
72129D — Protector, Seat Track Lower Rail, NO.4
72129-BZ050-C0 note Protector, Seat Track Lower Rail, NO.4
2018-12 → 2023-10 ended
F850 —
72138B — Cover, Seat Track, LH
72137-BZ040 Cover, Seat Track, LH
2018-12 → 2023-10 ended
F850 —
72138C — Cover, Seat Track, LH
72137-BZ040 Cover, Seat Track, LH
2018-12 → 2023-10 ended
F850 —
72158C — Cover, Seat Track Bracket, Inner LH
72158-BZ070-C0 note Cover, Seat Track Bracket, Inner LH
2018-12 → 2023-10 ended
F850 —
72159B — Cover, Rear Seat Track Bracket, Outer
72159-BZ110-C0 note Cover, Rear Seat Track Bracket, Outer
2018-12 → 2023-10 ended
F850 —
72159G — Cover, Rear Seat Track Bracket, LH
72159-BZ080-C0 note Cover, Rear Seat Track Bracket, LH
2018-12 → 2023-10 ended
F850 —
72170 — Track Assy, Rear Seat, Outer LH
72160-BZ080 Track Assy, Rear Seat, Outer LH
2018-12 → 2023-10 ended
F850 —
72170D — Track Assy, Rear Seat, Outer LH
72170-BZ070 Track Assy, Rear Seat, Outer LH
2018-12 → 2023-10 ended
F850 —
72173B — Handle, Rear Seat Track Adjusting, LH
72173-BZ040 Handle, Rear Seat Track Adjusting, LH
2018-12 → 2019-05 ended
F850 —
72173-BZ041 Handle, Rear Seat Track Adjusting, LH
2019-06 → 2023-10 ended
F850 —
72630A — Lock Assy, Rear NO.1 Seat
72670-BZ150 Lock Assy, Rear NO.1 Seat
2018-12 → 2023-10 ended
F850 —
72630E — Lock Assy, Rear NO.1 Seat
72670-BZ150 Lock Assy, Rear NO.1 Seat
2018-12 → 2023-10 ended
F850 —
72638 — Handle, Rear Seat Lock, LH
72637-BZ110-C0 note Handle, Rear Seat Lock, LH
2018-12 → 2023-10 ended
F850 —
72666B — Cover, Rear Seat Lock, LH
72694-BZ170-C0 note Cover, Rear Seat Lock, LH
2018-12 → 2023-10 ended
F850 —
72695C — Cable, Rear Seat Lock Control, LH
72695-BZ220 Cable, Rear Seat Lock Control, LH
2018-12 → 2023-10 ended
F850 —
72997B — Cover, Rear Seatback
72996-BZ200 Cover, Rear Seatback
2018-12 → 2023-10 ended
F850 —
72998A — Cover, NO.1 Seat Cushion, LH
72995-BZ280-C0 note Cover, NO.1 Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
79187A — Cover, NO.1 Seat Inner Bracket, LH
79187-BZ150-C0 note Cover, NO.1 Seat Inner Bracket, LH
2018-12 → 2023-10 ended
F850 —
79958A — Cover, Rear Seat Rear Bracket, LH
79188-BZ010-C0 note Cover, Rear Seat Rear Bracket, LH
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
