Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

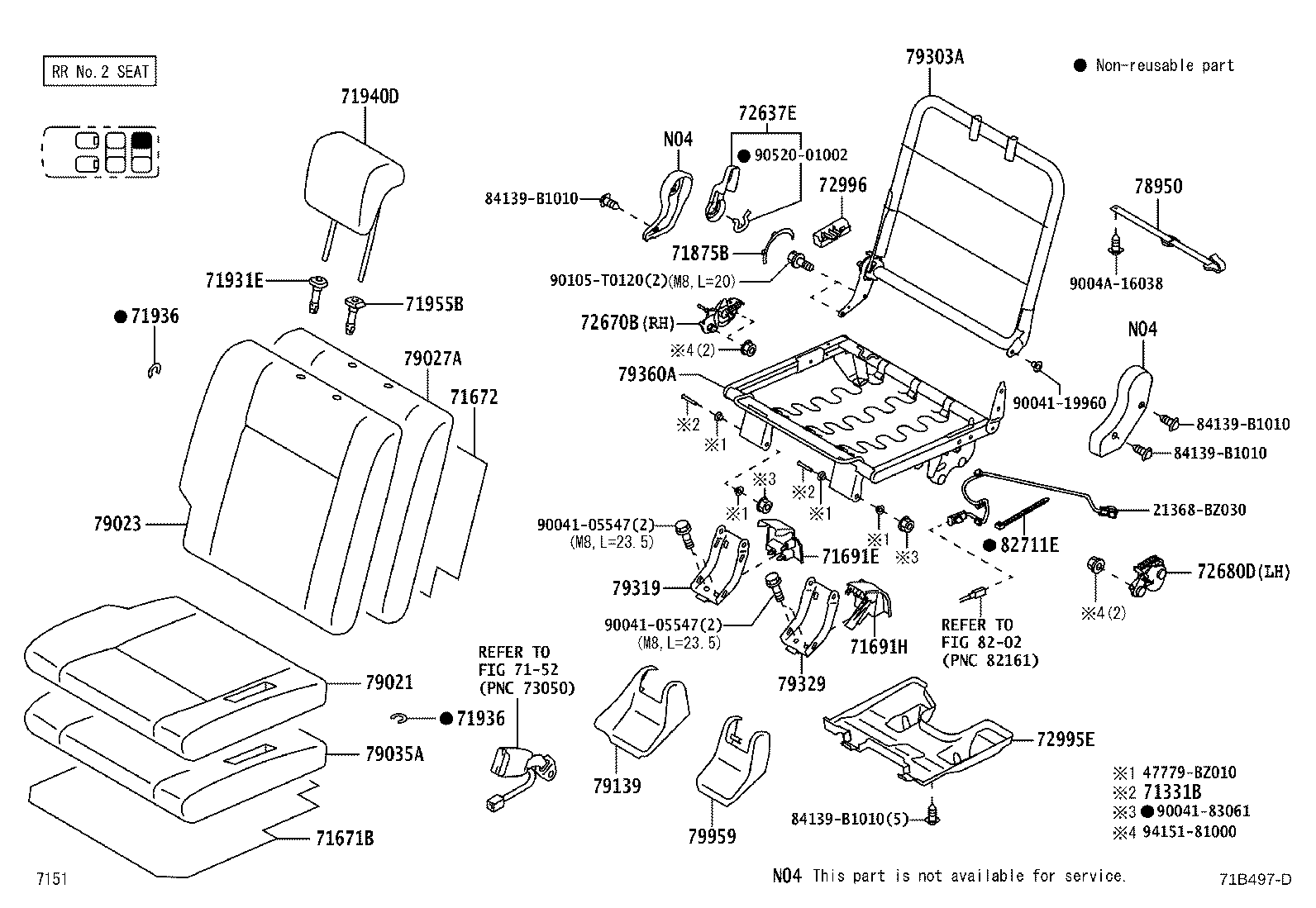

Exploded illustration 71B497D 47779BZ010 — not listed in this catalogue 9004183061 — not listed in this catalogue 9415181000 — not listed in this catalogue 79319 — BRACKET, NO.3 SEAT LEG, RR RH (1 parts) 71691E — COVER, REAR SEAT CUSHION HINGE, NO.1 (1 parts) 71691H — COVER, REAR SEAT CUSHION HINGE, NO.2 (1 parts) 79329 — BRACKET, NO.3 SEAT LEG, RR LH (1 parts) 79959 — COVER, RR SEAT LEG (1 parts) 79027A — PAD SUB-ASSY, NO.2 SEATBACK, RH (1 parts) 79023 — COVER SUB-ASSY, NO.2 SEATBACK, RH (2 parts) 79360A — SPRING ASSY, NO.3 SEAT CUSHION, RH (1 parts) 71672 — PAD, REAR SEATBACK SILENCER, B (1 parts) 71936 — CLIP (2 parts) 71940D — HEADREST ASSY, REAR NO.2 SEAT, RH (2 parts) 71671B — PAD, REAR SEAT CUSHION SILENCER, A (1 parts) 71936 — CLIP (2 parts) 71955B — SUPPORT, REAR SEAT HEADREST (1 parts) 71331B — PIN, REAR SEAT HINGE, RH (1 parts) 71931E — SUPPORT ASSY, REAR NO.3 SEAT HEADREST (1 parts) 79035A — PAD SUB-ASSY, NO.3 SEAT CUSHION, RH (1 parts) 79021 — COVER SUB-ASSY, NO.2 SEAT CUSHION, RH (2 parts) 79139 — COVER, REAR SEAT LEG (1 parts) 21368BZ030 — not listed in this catalogue 82711E — CLAMP, WIRING HARNESS (1 parts) 9004105547 — not listed in this catalogue 90105T0120 — not listed in this catalogue 9004105547 — not listed in this catalogue 8202 — not listed in this catalogue 7152 — not listed in this catalogue 71875B — COVER, RECLINING ADJUSTER INSIDE, RH (1 parts) 72637E — HANDLE, REAR SEAT LOCK, RH (1 parts) 84139B1010 — not listed in this catalogue 9052001002 — not listed in this catalogue 84139B1010 — not listed in this catalogue 84139B1010 — not listed in this catalogue 84139B1010 — not listed in this catalogue 72995E — COVER, REAR SEAT CUSHION (1 parts) 72996 — COVER, REAR SEATBACK, RH (1 parts) 79303A — FRAME SUB-ASSY, NO.3 SEATBACK, RH (1 parts) 9004119960 — not listed in this catalogue 78950 — BAND ASSY, FOLD SEAT STOPPER, NO.1 (2 parts) 9004A16038 — not listed in this catalogue 72680D — LOCK ASSY, FRONT SEAT CUSHION, LH (1 parts) 72670B — LOCK ASSY, REAR SEAT CUSHION, RH (1 parts)
71B497D · 28 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
71331B — Pin, Rear Seat Hinge, RH
71331-BZ040 Pin, Rear Seat Hinge, RH
2018-12 → 2023-10 ended
F850 —
71671B — Pad, Rear Seat Cushion Silencer, A
71622-BZ080 Pad, Rear Seat Cushion Silencer, A
2018-12 → 2023-10 ended
F850 —
71672 — Pad, Rear Seatback Silencer, B
71672-BZ080 Pad, Rear Seatback Silencer, B
2018-12 → 2023-10 ended
F850 —
71691E — Cover, Rear Seat Cushion Hinge, NO.1
71691-BZ070-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2018-12 → 2023-10 ended
F850 —
71691H — Cover, Rear Seat Cushion Hinge, NO.2
71692-BZ080-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2018-12 → 2023-10 ended
F850 —
71875B — Cover, Reclining Adjuster Inside, RH
71875-BZ020-C0 note Cover, Reclining Adjuster Inside, RH
2018-12 → 2023-10 ended
F850 —
71931E — Support Assy, Rear NO.3 Seat Headrest
71931-BZ070-C0 note Support Assy, Rear NO.3 Seat Headrest
2018-12 → 2023-10 ended
F850 —
71936 — Clip
71812-87Z03 note Clip
2018-12 → 2023-10 ended
F850 —
9004A-46143 note Clip
2018-12 → 2023-10 ended
F850 —
71940D — Headrest Assy, Rear NO.2 Seat, RH
71970-BZ140-C1 note Headrest Assy, Rear NO.2 Seat, RH
2018-12 → 2023-10 ended
F850 EXT —
71970-BZ180-C0 note Headrest Assy, Rear NO.2 Seat, RH
2018-12 → 2023-10 ended
F850 HI —
71955B — Support, Rear Seat Headrest
71930-BZ060-C0 note Support, Rear Seat Headrest
2018-12 → 2023-10 ended
F850 —
72637E — Handle, Rear Seat Lock, RH
72637-BZ110-C0 note Handle, Rear Seat Lock, RH
2018-12 → 2023-10 ended
F850 —
72670B — Lock Assy, Rear Seat Cushion, RH
72670-BZ170 Lock Assy, Rear Seat Cushion, RH
2018-12 → 2023-10 ended
F850 —
72680D — Lock Assy, Front Seat Cushion, LH
72670-BZ170 Lock Assy, Front Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
72995E — Cover, Rear Seat Cushion
72995-BZ230-C0 note Cover, Rear Seat Cushion
2018-12 → 2023-10 ended
F850 —
72996 — Cover, Rear Seatback, RH
72996-BZ200 Cover, Rear Seatback, RH
2018-12 → 2023-10 ended
F850 —
78950 — Band Assy, Fold Seat Stopper, NO.1
78980-BZ090 Band Assy, Fold Seat Stopper, NO.1
2018-12 → 2023-10 ended
F850 EXT —
78980-BZ090-C0 note Band Assy, Fold Seat Stopper, NO.1
2018-12 → 2023-10 ended
F850 HI —
79021 — Cover Sub-assy, NO.2 Seat Cushion, RH
79021-BZ860-C1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2018-12 → 2023-10 ended
F850 EXT —
79021-BZA30-C0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2018-12 → 2023-10 ended
F850 HI —
79023 — Cover Sub-assy, NO.2 Seatback, RH
79023-BZ810-C1 note Cover Sub-assy, NO.2 Seatback, RH
2018-12 → 2023-10 ended
F850 EXT —
79023-BZ880-C0 note Cover Sub-assy, NO.2 Seatback, RH
2018-12 → 2023-10 ended
F850 HI —
79027A — Pad Sub-assy, NO.2 Seatback, RH
79027-BZ060 Pad Sub-assy, NO.2 Seatback, RH
2018-12 → 2023-10 ended
F850 —
79035A — Pad Sub-assy, NO.3 Seat Cushion, RH
79037-BZ260 Pad Sub-assy, NO.3 Seat Cushion, RH
2018-12 → 2023-10 ended
F850 —
79139 — Cover, Rear Seat Leg
79236-BZ050-C0 note Cover, Rear Seat Leg
2018-12 → 2023-10 ended
F850 —
79303A — Frame Sub-assy, NO.3 Seatback, RH
79203-BZ080 Frame Sub-assy, NO.3 Seatback, RH
2018-12 → 2023-10 ended
F850 —
79319 — Bracket, NO.3 Seat Leg, RR RH
79318-BZ070 Bracket, NO.3 Seat Leg, RR RH
2018-12 → 2023-10 ended
F850 —
79329 — Bracket, NO.3 Seat Leg, RR LH
79328-BZ070 Bracket, NO.3 Seat Leg, RR LH
2018-12 → 2023-10 ended
F850 —
79360A — Spring Assy, NO.3 Seat Cushion, RH
79360-BZ110 Spring Assy, NO.3 Seat Cushion, RH
2018-12 → 2023-10 ended
F850 —
79959 — Cover, RR Seat Leg
79236-BZ110-C0 note Cover, RR Seat Leg
2018-12 → 2023-10 ended
F850 —
82711E — Clamp, Wiring Harness
90044-63270 Clamp, Wiring Harness
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
