Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

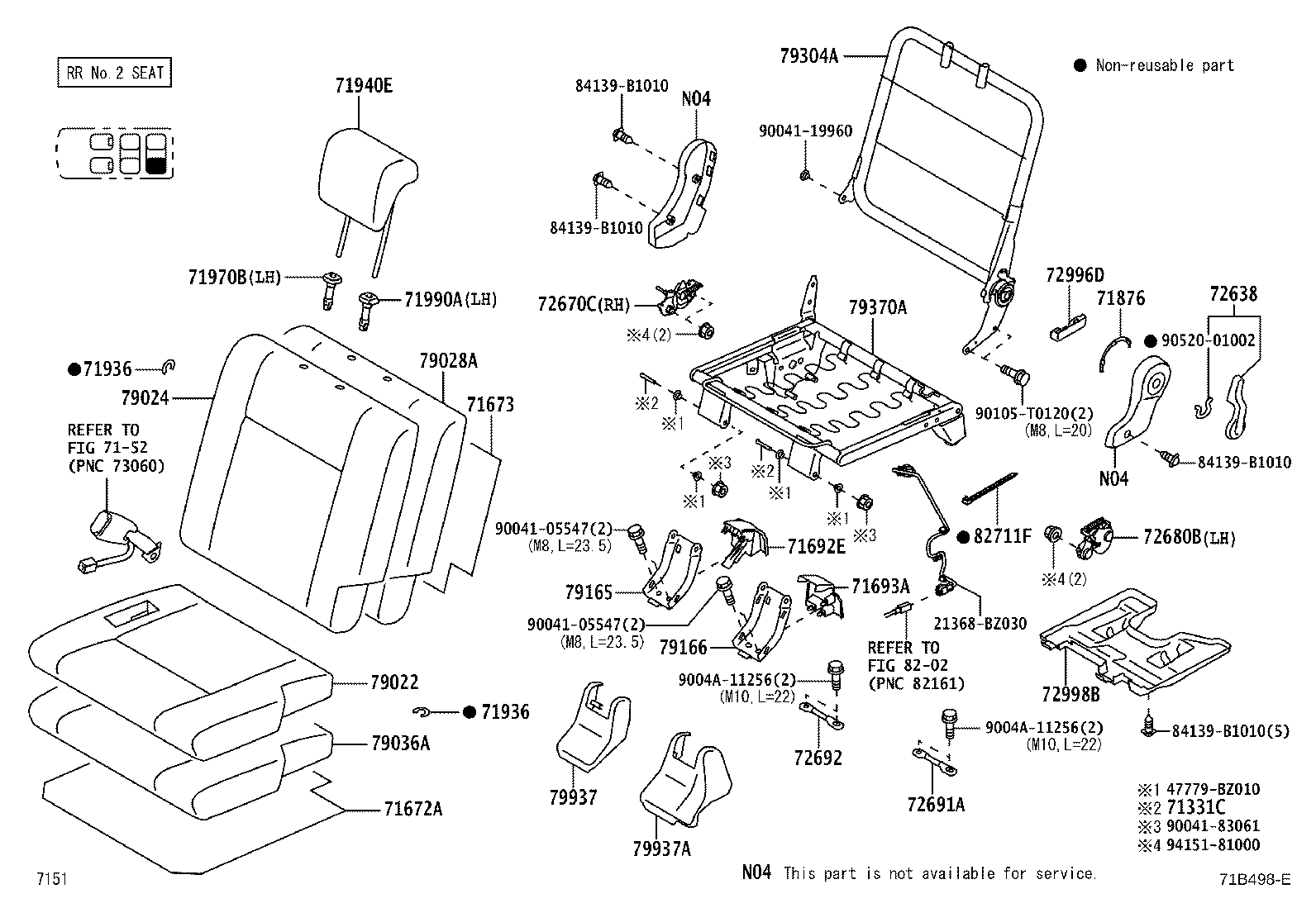

Exploded illustration 71B498E 79370A — SPRING ASSY, NO.3 SEAT CUSHION, LH (1 parts) 79028A — PAD SUB-ASSY, NO.2 SEATBACK, LH (1 parts) 79024 — COVER SUB-ASSY, NO.2 SEATBACK, LH (2 parts) 71673 — PAD, REAR SEATBACK SILENCER, C (1 parts) 71936 — CLIP (2 parts) 71940E — HEADREST ASSY, NO.2 SEAT (2 parts) 71672A — PAD, REAR SEAT CUSHION SILENCER, B (1 parts) 71936 — CLIP (2 parts) 79036A — PAD, SUB-ASSY, NO.3 SEAT CUSHION, LH (1 parts) 79022 — COVER SUB-ASSY, NO.2 SEAT CUSHION, LH (2 parts) 71990A — SUPPORT ASSY, REAR SEAT HEADREST, LH (1 parts) 21368BZ030 — not listed in this catalogue 79165 — BRACKET, NO.3 SEAT LEG, REAR RH (1 parts) 79166 — BRACKET, NO.3 SEAT LEG, REAR LH (1 parts) 72692 — STRIKER, REAR SEAT CUSHION LOCK, NO.2 (1 parts) 9004A11256 — not listed in this catalogue 72691A — STRIKER, REAR SEAT CUSHION LOCK, NO.1 (1 parts) 9004A11256 — not listed in this catalogue 47779BZ010 — not listed in this catalogue 79937 — COVER, REAR SEAT LEG, NO.2 (1 parts) 79937A — COVER, REAR SEAT LEG, NO.2 (1 parts) 71331C — PIN, REAR SEAT HINGE, LH (1 parts) 9004105547 — not listed in this catalogue 9004105547 — not listed in this catalogue 9004183061 — not listed in this catalogue 71693A — COVER, REAR SEAT CUSHION HINGE, NO.3 (1 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (1 parts) 8202 — not listed in this catalogue 7152 — not listed in this catalogue 71876 — COVER, RECLINING ADJUSTER INSIDE, LH (1 parts) 72638 — HANDLE, REAR SEAT LOCK, LH (1 parts) 84139B1010 — not listed in this catalogue 9052001002 — not listed in this catalogue 84139B1010 — not listed in this catalogue 84139B1010 — not listed in this catalogue 9415181000 — not listed in this catalogue 72998B — COVER, REAR SEAT CUSHION, LH (1 parts) 84139B1010 — not listed in this catalogue 79304A — FRAME SUB-ASSY, NO.3 SEATBACK, LH (1 parts) 9004119960 — not listed in this catalogue 90105T0120 — not listed in this catalogue 72670C — LOCK ASSY, REAR SEAT CUSHION, NO.2 RH (1 parts) 72996D — COVER, REAR NO.2 SEATBACK, LH (1 parts) 72680B — LOCK ASSY, REAR SEAT CUSHION, LH (1 parts) 82711F — CLAMP, WIRING HARNESS (2 parts) 71970B — SUPPORT ASSY, REAR SEAT HEADREST, RH (1 parts)
71B498E · 29 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
71331C — Pin, Rear Seat Hinge, LH
71331-BZ040 Pin, Rear Seat Hinge, LH
2018-12 → 2023-10 ended
F850 —
71672A — Pad, Rear Seat Cushion Silencer, B
71622-BZ080 Pad, Rear Seat Cushion Silencer, B
2018-12 → 2023-10 ended
F850 —
71673 — Pad, Rear Seatback Silencer, C
71672-BZ080 Pad, Rear Seatback Silencer, C
2018-12 → 2023-10 ended
F850 —
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-BZ080-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2018-12 → 2023-10 ended
F850 —
71693A — Cover, Rear Seat Cushion Hinge, NO.3
71693-BZ020-C0 note Cover, Rear Seat Cushion Hinge, NO.3
2018-12 → 2023-10 ended
F850 —
71876 — Cover, Reclining Adjuster Inside, LH
71876-BZ020-C0 note Cover, Reclining Adjuster Inside, LH
2018-12 → 2023-10 ended
F850 —
71936 — Clip
71812-87Z03 note Clip
2018-12 → 2023-10 ended
F850 —
9004A-46143 note Clip
2018-12 → 2023-10 ended
F850 —
71940E — Headrest Assy, NO.2 Seat
71970-BZ140-C1 note Headrest Assy, NO.2 Seat
2018-12 → 2023-10 ended
F850 EXT —
71970-BZ180-C0 note Headrest Assy, NO.2 Seat
2018-12 → 2023-10 ended
F850 HI —
71970B — Support Assy, Rear Seat Headrest, RH
71931-BZ070-C0 note Support Assy, Rear Seat Headrest, RH
2018-12 → 2023-10 ended
F850 —
71990A — Support Assy, Rear Seat Headrest, LH
71930-BZ060-C0 note Support Assy, Rear Seat Headrest, LH
2018-12 → 2023-10 ended
F850 —
72638 — Handle, Rear Seat Lock, LH
72637-BZ110-C0 note Handle, Rear Seat Lock, LH
2018-12 → 2023-10 ended
F850 —
72670C — Lock Assy, Rear Seat Cushion, NO.2 RH
72680-BZ230 Lock Assy, Rear Seat Cushion, NO.2 RH
2018-12 → 2023-10 ended
F850 —
72680B — Lock Assy, Rear Seat Cushion, LH
72680-BZ230 Lock Assy, Rear Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
72691A — Striker, Rear Seat Cushion Lock, NO.1
72692-BZ030 Striker, Rear Seat Cushion Lock, NO.1
2018-12 → 2023-10 ended
F850 —
72692 — Striker, Rear Seat Cushion Lock, NO.2
72692-BZ030 Striker, Rear Seat Cushion Lock, NO.2
2018-12 → 2023-10 ended
F850 —
72996D — Cover, Rear NO.2 Seatback, LH
72996-BZ200 Cover, Rear NO.2 Seatback, LH
2018-12 → 2023-10 ended
F850 —
72998B — Cover, Rear Seat Cushion, LH
72998-BZ070-C0 note Cover, Rear Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
79022 — Cover Sub-assy, NO.2 Seat Cushion, LH
79022-BZ090-C1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2018-12 → 2023-10 ended
F850 EXT —
79022-BZ130-C0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2018-12 → 2023-10 ended
F850 HI —
79024 — Cover Sub-assy, NO.2 Seatback, LH
79024-BZ340-C1 note Cover Sub-assy, NO.2 Seatback, LH
2018-12 → 2023-10 ended
F850 EXT —
79024-BZ410-C0 note Cover Sub-assy, NO.2 Seatback, LH
2018-12 → 2023-10 ended
F850 HI —
79028A — Pad Sub-assy, NO.2 Seatback, LH
79027-BZ080 Pad Sub-assy, NO.2 Seatback, LH
2018-12 → 2023-10 ended
F850 —
79036A — Pad, Sub-assy, NO.3 Seat Cushion, LH
79037-BZ270 Pad, Sub-assy, NO.3 Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
79165 — Bracket, NO.3 Seat Leg, Rear RH
79318-BZ060 Bracket, NO.3 Seat Leg, Rear RH
2018-12 → 2023-10 ended
F850 —
79166 — Bracket, NO.3 Seat Leg, Rear LH
79328-BZ060 Bracket, NO.3 Seat Leg, Rear LH
2018-12 → 2023-10 ended
F850 —
79304A — Frame Sub-assy, NO.3 Seatback, LH
79203-BZ090 Frame Sub-assy, NO.3 Seatback, LH
2018-12 → 2023-10 ended
F850 —
79370A — Spring Assy, NO.3 Seat Cushion, LH
79360-BZ120 Spring Assy, NO.3 Seat Cushion, LH
2018-12 → 2023-10 ended
F850 —
79937 — Cover, Rear Seat Leg, NO.2
79236-BZ110-C0 note Cover, Rear Seat Leg, NO.2
2018-12 → 2023-10 ended
F850 —
79937A — Cover, Rear Seat Leg, NO.2
79246-BZ090-C0 note Cover, Rear Seat Leg, NO.2
2018-12 → 2023-10 ended
F850 —
82711F — Clamp, Wiring Harness
82711-BZ280 note Clamp, Wiring Harness
2018-12 → 2023-10 ended
F850 —
90044-63270 note Clamp, Wiring Harness
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
