Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

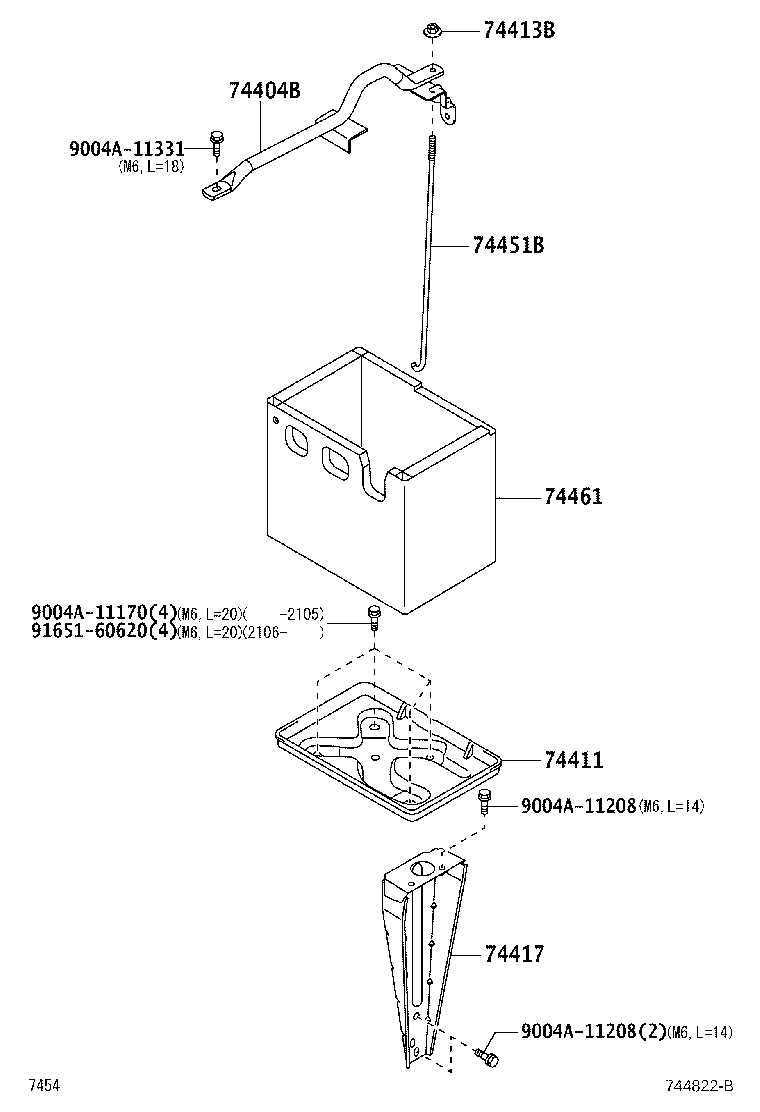

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404B — Clamp Sub-assy, Battery | ||||
| 74404-BZ100 |
Clamp Sub-assy, Battery
2018-12 → 2023-10
ended
|
F850 | — | |
| 74411 — Carrier, Battery | ||||
| 74411-BZ090 |
Carrier, Battery
2018-12 → 2023-10
ended
|
F850 | — | |
| 74413B — Nut, Wing (FOR BATTERY CLAMP BOLT) | ||||
| 90041-79111 |
Nut, Wing (FOR BATTERY CLAMP BOLT)
2018-12 → 2023-10
ended
|
F850 | — | |
| 74417 — Bracket, Battery Carrier | ||||
| 74417-BZ070 |
Bracket, Battery Carrier
2018-12 → 2023-10
ended
|
F850 | — | |
| 74451B — Bolt, Battery Clamp | ||||
| 74451-BZ070 |
Bolt, Battery Clamp
2018-12 → 2023-10
ended
|
F850 | — | |
| 74461 — Cover, Battery | ||||
| 74405-BZ050 |
Cover, Battery
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
