Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

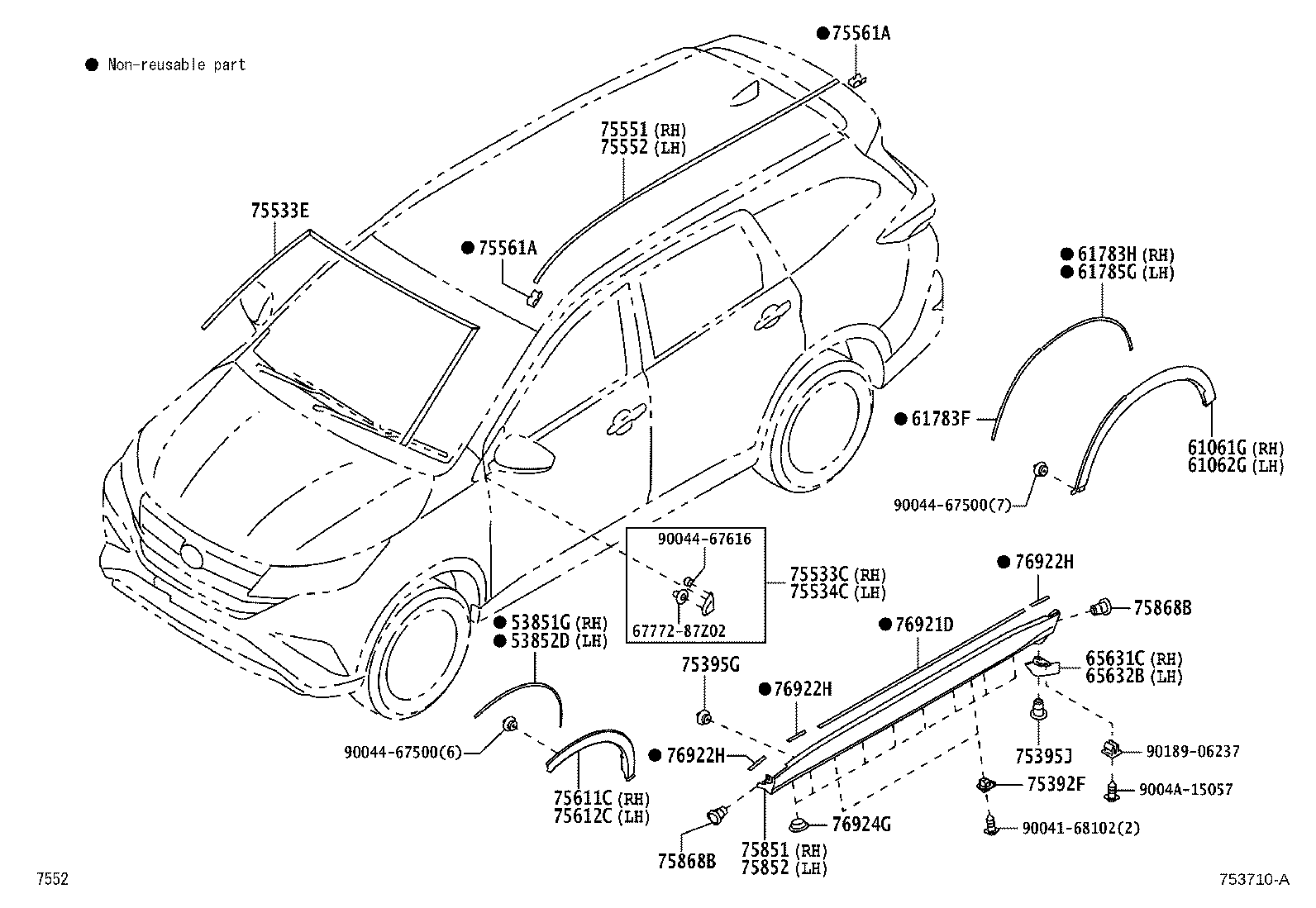

Exploded illustration 753710A 6777287Z02 — not listed in this catalogue 9004467500 — not listed in this catalogue 9004467500 — not listed in this catalogue 9004467616 — not listed in this catalogue 53851G — PAD, FRONT WHEEL OPENING EXTENSION, RH (1 parts) 53852D — PAD, FRONT WHEEL OPENING EXTENSION, LH (1 parts) 75611C — MOULDING, FRONT FENDER, OUTSIDE RH (1 parts) 75612C — MOULDING, FRONT FENDER, OUTSIDE LH (1 parts) 75851 — MOULDING, ROCKER PANEL, RH (1 parts) 75852 — MOULDING, ROCKER PANEL, LH (1 parts) 75533C — GARNISH, FRONT PILLAR, OUTER RH (1 parts) 75534C — GARNISH, FRONT PILLAR, OUTER LH (1 parts) 61783H — PAD, REAE WHEEL OPENING EXTENSION, NO.2 (1 parts) 61783F — PAD, REAR WHEEL OPENING EXTENSION NO.1 (1 parts) 61785G — PAD, REAR WHEEL OPENING EXTENSION, NO.3 (1 parts) 61061G — EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH (1 parts) 61062G — EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH (1 parts) 75551 — MOULDING, ROOF DRIP SIDE FINISH, RH (1 parts) 75552 — MOULDING, ROOF DRIP SIDE FINISH, LH (1 parts) 75533E — MOULDING, WINDSHIELD, OUTSIDE (1 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (1 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (1 parts) 76924G — RETAINER, ROCKER PANEL MOULDING (1 parts) 76922H — PROTECTOR, SIDE MUDGUARD, NO.2 (1 parts) 76921D — PROTECTOR, SIDE MUDGUARD, NO.1 (1 parts) 76922H — PROTECTOR, SIDE MUDGUARD, NO.2 (1 parts) 76922H — PROTECTOR, SIDE MUDGUARD, NO.2 (1 parts) 75868B — CLIP, ROCKER PANEL MOULDING, NO.2 (1 parts) 75392F — RETAINER, OUTSIDE MOULDING (1 parts) 75395G — CLIP, OUTSIDE MOULDING, NO.1 (1 parts) 75868B — CLIP, ROCKER PANEL MOULDING, NO.2 (1 parts) 65631C — PLATE, REAR WHEEL HOUSE, FRONT RH (1 parts) 75395J — CLIP, OUTSIDE MOULDING, NO.1 (1 parts) 65632B — PLATE, REAR WHELL HOUSE, FRONT LH (1 parts) 9004A15057 — not listed in this catalogue 9018906237 — not listed in this catalogue 9004168102 — not listed in this catalogue
753710A · 30 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
53851G — Pad, Front Wheel Opening Extension, RH
53851-BZ080 Pad, Front Wheel Opening Extension, RH
2018-12 → 2023-10 ended
F850 —
53852D — Pad, Front Wheel Opening Extension, LH
53851-BZ080 Pad, Front Wheel Opening Extension, LH
2018-12 → 2023-10 ended
F850 —
61061G — Extension Sub-assy, Rear Wheel Opening, NO.1 RH
61681-BZ040 Extension Sub-assy, Rear Wheel Opening, NO.1 RH
2018-12 → 2023-10 ended
F850 —
61062G — Extension Sub-assy, Rear Wheel Opening, NO.1 LH
61682-BZ040 Extension Sub-assy, Rear Wheel Opening, NO.1 LH
2018-12 → 2023-10 ended
F850 —
61783F — Pad, Rear Wheel Opening Extension NO.1
61783-BZ060 Pad, Rear Wheel Opening Extension NO.1
2018-12 → 2023-10 ended
F850 —
61783H — Pad, Reae Wheel Opening Extension, NO.2
61784-BZ060 Pad, Reae Wheel Opening Extension, NO.2
2018-12 → 2023-10 ended
F850 —
61785G — Pad, Rear Wheel Opening Extension, NO.3
61784-BZ090 Pad, Rear Wheel Opening Extension, NO.3
2018-12 → 2023-10 ended
F850 —
65631C — Plate, Rear Wheel House, Front RH
65631-BZ020 Plate, Rear Wheel House, Front RH
2018-12 → 2023-10 ended
F850 —
65632B — Plate, Rear Whell House, Front LH
65632-BZ020 Plate, Rear Whell House, Front LH
2018-12 → 2023-10 ended
F850 —
75392F — Retainer, Outside Moulding
75392-BZ020 Retainer, Outside Moulding
2018-12 → 2023-10 ended
F850 —
75395G — Clip, Outside Moulding, NO.1
90044-67500 Clip, Outside Moulding, NO.1
2018-12 → 2023-10 ended
F850 —
75395J — Clip, Outside Moulding, NO.1
9004A-46323 Clip, Outside Moulding, NO.1
2018-12 → 2023-10 ended
F850 —
75533C — Garnish, Front Pillar, Outer RH
62225-BZ070 Garnish, Front Pillar, Outer RH
2018-12 → 2023-10 ended
F850 —
75533E — Moulding, Windshield, Outside
75533-BZ170 Moulding, Windshield, Outside
2018-12 → 2023-10 ended
F850 —
75534C — Garnish, Front Pillar, Outer LH
62226-BZ070 Garnish, Front Pillar, Outer LH
2018-12 → 2023-10 ended
F850 —
75551 — Moulding, Roof Drip Side Finish, RH
75551-BZ170 Moulding, Roof Drip Side Finish, RH
2018-12 → 2023-10 ended
F850 —
75552 — Moulding, Roof Drip Side Finish, LH
75552-BZ160 Moulding, Roof Drip Side Finish, LH
2018-12 → 2023-10 ended
F850 —
75561A — Clip, Roof Drip Side Finish Moulding
75039-BZ020 Clip, Roof Drip Side Finish Moulding
2018-12 → 2023-10 ended
F850 —
75611C — Moulding, Front Fender, Outside RH
75611-BZ050 Moulding, Front Fender, Outside RH
2018-12 → 2023-10 ended
F850 —
75612C — Moulding, Front Fender, Outside LH
75612-BZ050 Moulding, Front Fender, Outside LH
2018-12 → 2023-10 ended
F850 —
75851 — Moulding, Rocker Panel, RH
75851-BZ330 Moulding, Rocker Panel, RH
2018-12 → 2023-10 ended
F850 —
75852 — Moulding, Rocker Panel, LH
75852-BZ330 Moulding, Rocker Panel, LH
2018-12 → 2023-10 ended
F850 —
75868B — Clip, Rocker Panel Moulding, NO.2
90044-67606 Clip, Rocker Panel Moulding, NO.2
2018-12 → 2023-10 ended
F850 —
76921D — Protector, Side Mudguard, NO.1
76921-BZ260 Protector, Side Mudguard, NO.1
2018-12 → 2023-10 ended
F850 —
76922H — Protector, Side Mudguard, NO.2
76922-BZ010 Protector, Side Mudguard, NO.2
2018-12 → 2023-10 ended
F850 —
76924G — Retainer, Rocker Panel Moulding
76924-52021 Retainer, Rocker Panel Moulding
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
