Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

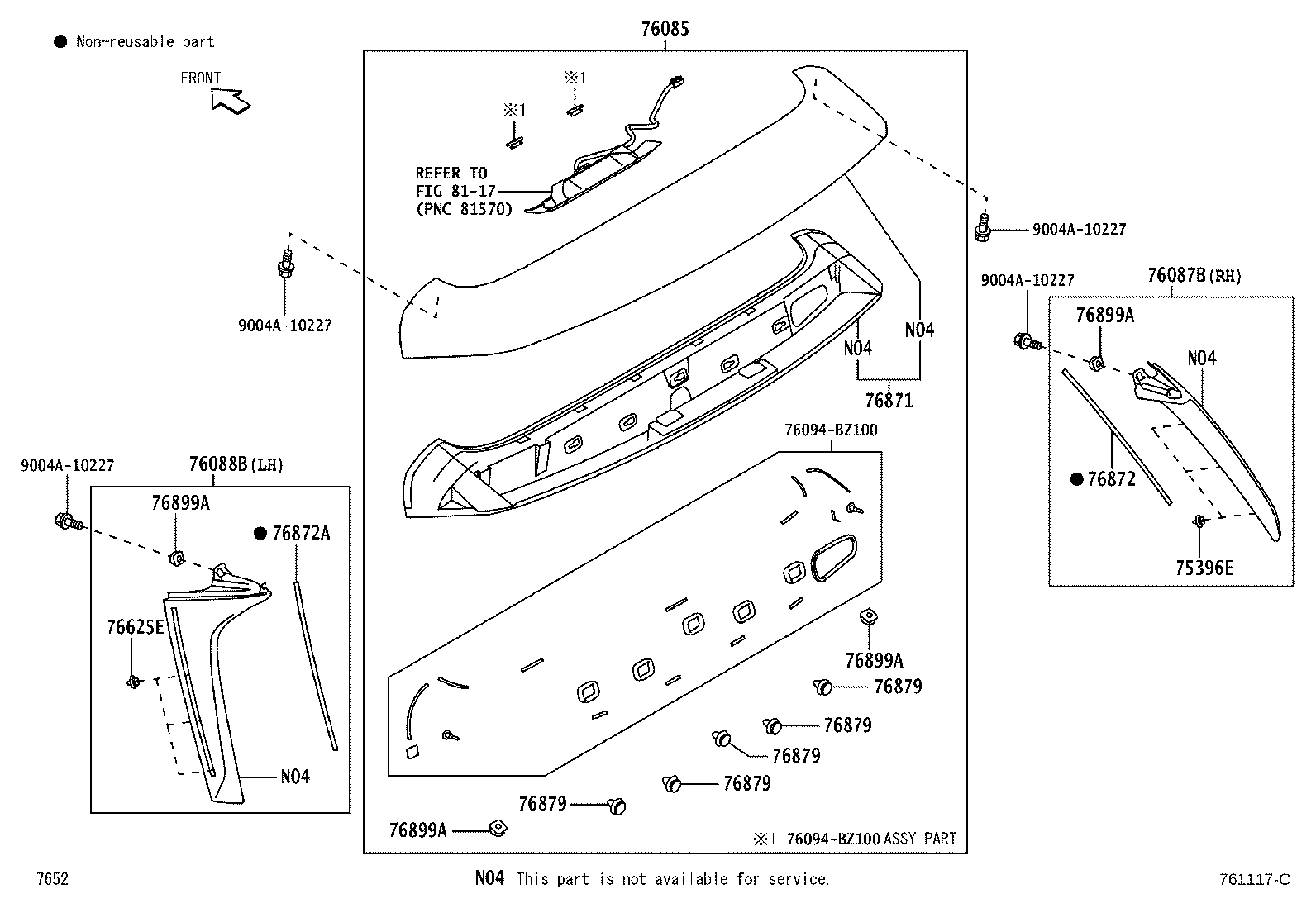

Exploded illustration 761117C 76094BZ100 — not listed in this catalogue 76879 — CLIP, REAR SPOILER, NO.1 (1 parts) 76879 — CLIP, REAR SPOILER, NO.1 (1 parts) 76879 — CLIP, REAR SPOILER, NO.1 (1 parts) 76879 — CLIP, REAR SPOILER, NO.1 (1 parts) 76879 — CLIP, REAR SPOILER, NO.1 (1 parts) 8117 — not listed in this catalogue 76094BZ100 — not listed in this catalogue 9004A10227 — not listed in this catalogue 9004A10227 — not listed in this catalogue 76871 — SPOILER, REAR (1 parts) 76899A — NUT, REAR SPOILER (1 parts) 76899A — NUT, REAR SPOILER (1 parts) 9004A10227 — not listed in this catalogue 9004A10227 — not listed in this catalogue 76872 — PROTECTOR, REAR SPOILER, NO.1 (1 parts) 76872A — PROTECTOR, REAR SPOILER, NO.1 (1 parts) 76899A — NUT, REAR SPOILER (1 parts) 76899A — NUT, REAR SPOILER (1 parts) 75396E — CLIP, OUTSIDE MOULDING, NO.2 (1 parts) 76625E — CLIP (1 parts) 76087B — SPOILER SUB-ASSY, REAR SIDE, RH (1 parts) 76085 — SPOILER SUB-ASSY, REAR (7 parts) 76088B — SPOILER SUB-ASSY, REAR SIDE, LH (1 parts)
761117C · 17 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
75396E — Clip, Outside Moulding, NO.2
90044-67500 Clip, Outside Moulding, NO.2
2018-12 → 2023-10 ended
F850 —
76085 — Spoiler Sub-assy, Rear
76085-BZ230-A0 note Spoiler Sub-assy, Rear
2018-12 → 2023-10 ended
F850 —
76085-BZ230-B0 note Spoiler Sub-assy, Rear
2018-12 → 2023-10 ended
F850 —
76085-BZ230-B1 note Spoiler Sub-assy, Rear
2018-12 → 2023-10 ended
F850 —
76085-BZ230-D0 note Spoiler Sub-assy, Rear
2021-04 → 2023-04 ended
F850 —
76085-BZ230-D1 note Spoiler Sub-assy, Rear
2023-04 → 2023-10 ended
F850 —
76085-BZ230-J0 note Spoiler Sub-assy, Rear
2018-12 → 2023-10 ended
F850 —
76085-BZ230-J1 note Spoiler Sub-assy, Rear
2018-12 → 2021-04 ended
F850 —
76087B — Spoiler Sub-assy, Rear Side, RH
76087-BZ050 Spoiler Sub-assy, Rear Side, RH
2018-12 → 2023-10 ended
F850 —
76088B — Spoiler Sub-assy, Rear Side, LH
76088-BZ040 Spoiler Sub-assy, Rear Side, LH
2018-12 → 2023-10 ended
F850 —
76625E — Clip
90044-67500 Clip
2018-12 → 2023-10 ended
F850 —
76871 — Spoiler, Rear
76091-BZ240 Spoiler, Rear
2018-12 → 2023-10 ended
F850 —
76872 — Protector, Rear Spoiler, NO.1
76872-BZ120 Protector, Rear Spoiler, NO.1
2018-12 → 2023-10 ended
F850 —
76872A — Protector, Rear Spoiler, NO.1
76872-BZ120 Protector, Rear Spoiler, NO.1
2018-12 → 2023-10 ended
F850 —
76879 — Clip, Rear Spoiler, NO.1
90044-67578 Clip, Rear Spoiler, NO.1
2018-12 → 2023-10 ended
F850 —
76899A — Nut, Rear Spoiler
76899-B0010 Nut, Rear Spoiler
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
