Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

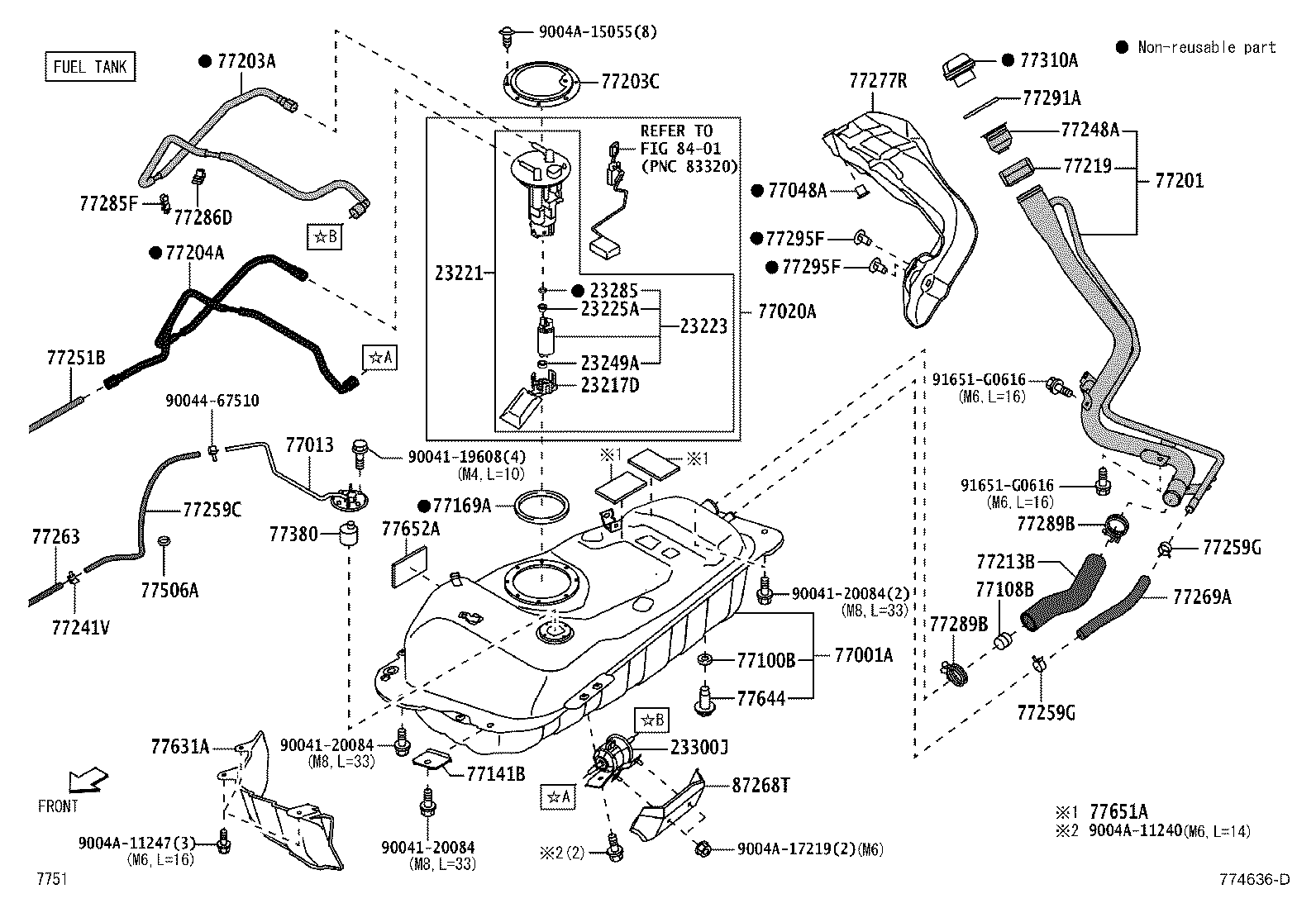

Exploded illustration 774636D 77277R — PROTECTOR, FUEL TANK FILLER PIPE (1 parts) 77048A — CLIP (FOR FUEL INLET PIPE SEAL) (1 parts) 77295F — GROMMET, FUEL HOSE (1 parts) 77295F — GROMMET, FUEL HOSE (1 parts) 9004120084 — not listed in this catalogue 9004120084 — not listed in this catalogue 9004120084 — not listed in this catalogue 9004467510 — not listed in this catalogue 77020A — TUBE ASSY, FUEL SUCTION W/PUMP & GAGE (1 parts) 23223 — PUMP, FUEL, NO.2 (1 parts) 23221 — PUMP, FUEL (1 parts) 23217D — FILTER, FUEL PUMP (1 parts) 23249A — RUBBER, CUSHION(FOR FUEL PUMP) (1 parts) 23225A — SPACER, FUEL PUMP (1 parts) 23285 — RING, O (1 parts) 8401 — not listed in this catalogue 77380 — VALVE ASSY, FUEL CUT OFF (1 parts) 9004119608 — not listed in this catalogue 77013 — TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 (1 parts) 77203A — TUBE SUB-ASSY, FUEL SUCTION (1 parts) 77001A — TANK SUB-ASSY, FUEL (2 parts) 77100B — GASKET(FOR FUEL TANK) (1 parts) 77644 — BOLT, FUEL TANK (1 parts) 77291A — SHIELD, FUEL TANK FILLER PIPE (1 parts) 77310A — CAP ASSY, FUEL TANK (1 parts) 77201 — PIPE SUB-ASSY, FUEL TANK INLET (1 parts) 77248A — HOLDER, FUEL TANK FILLER PIPE COVER (1 parts) 77219 — COVER, FUEL TANK FILLER PIPE (1 parts) 91651G0616 — not listed in this catalogue 91651G0616 — not listed in this catalogue 77108B — VALVE SUB-ASSY, FUEL TANK FILLER CHECK (1 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (1 parts) 77213B — HOSE, FUEL TANK TO FILLER PIPE (1 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (1 parts) 77269A — HOSE, FUEL TANK BREATHER (1 parts) 77259G — CLIP, FUEL HOSE (1 parts) 77259G — CLIP, FUEL HOSE (1 parts) 77652A — CUSHION, FUEL TANK, NO.2 (1 parts) 77169A — GASKET, FUEL SUCTION TUBE SET (1 parts) 77285F — CLAMP, FUEL TUBE, NO.1 (1 parts) 23300J — FILTER ASSY, FUEL (1 parts) 77141B — REINFORCEMENT, FUEL TANK FLANGE, NO.1 (1 parts) 87268T — PROTECTOR, NO.1 (1 parts) 9004A17219 — not listed in this catalogue 77631A — PROTECTOR, FUEL TANK, LOWER CENTER (1 parts) 9004A11247 — not listed in this catalogue 9004A15055 — not listed in this catalogue 77203C — BRACKET, FUEL PUMP (1 parts) 77259C — HOSE, FUEL (1 parts) 77241V — CLIP, TUBE JOINT (1 parts) 77506A — CLAMP, FUEL TANK BAND SHIM (1 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (1 parts) 77263 — TUBE, FUEL TANK TO CANISTER, NO.3 (1 parts) 77251B — TUBE, FUEL MAIN (1 parts) 77204A — TUBE, FUEL TANK RETURN (1 parts) 9004A11240 — not listed in this catalogue 77651A — CUSHION, FUEL TANK, NO.1 (1 parts)
774636D · 45 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
23217D — Filter, Fuel Pump
23217-BZ030 Filter, Fuel Pump
2018-12 → 2023-10 ended
2NRVE F850 —
23221 — Pump, Fuel
23100-BZ220 Pump, Fuel
2018-12 → 2023-10 ended
2NRVE F850 —
23223 — Pump, Fuel, NO.2
23101-BZ090 Pump, Fuel, NO.2
2018-12 → 2023-10 ended
2NRVE F850 —
23225A — Spacer, Fuel Pump
23225-BZ020 Spacer, Fuel Pump
2018-12 → 2023-10 ended
2NRVE F850 —
23249A — Rubber, Cushion(FOR FUEL PUMP)
23249-BZ030 Rubber, Cushion(FOR FUEL PUMP)
2018-12 → 2023-10 ended
2NRVE F850 —
23285 — Ring, O
23532-87101 Ring, O
2018-12 → 2023-10 ended
2NRVE F850 —
23300J — Filter Assy, Fuel
23300-BZ010 Filter Assy, Fuel
2018-12 → 2023-10 ended
2NRVE F850 —
77001A — Tank Sub-assy, Fuel
77001-BZ400 Tank Sub-assy, Fuel
2018-12 → 2020-04 ended
F850 —
77001-BZ750 Tank Sub-assy, Fuel
2020-05 → 2023-10 ended
F850 —
77013 — Tube Sub-assy, Fuel Tank Breather, NO.2
77013-BZ100 Tube Sub-assy, Fuel Tank Breather, NO.2
2018-12 → 2023-10 ended
F850 —
77020A — Tube Assy, Fuel Suction W/Pump & Gage
23210-BZ130 Tube Assy, Fuel Suction W/Pump & Gage
2018-12 → 2023-10 ended
F850 —
77048A — Clip (FOR FUEL INLET PIPE SEAL)
90044-68290 Clip (FOR FUEL INLET PIPE SEAL)
2018-12 → 2023-10 ended
F850 —
77100B — Gasket(FOR FUEL TANK)
90044-30291 Gasket(FOR FUEL TANK)
2018-12 → 2023-10 ended
F850 —
77108B — Valve Sub-assy, Fuel Tank Filler Check
77108-B2010 Valve Sub-assy, Fuel Tank Filler Check
2018-12 → 2023-10 ended
F850 —
77141B — Reinforcement, Fuel Tank Flange, NO.1
77141-BZ230 Reinforcement, Fuel Tank Flange, NO.1
2018-12 → 2023-10 ended
F850 —
77169A — Gasket, Fuel Suction Tube Set
23232-87401 Gasket, Fuel Suction Tube Set
2018-12 → 2023-10 ended
F850 —
77201 — Pipe Sub-assy, Fuel Tank Inlet
77201-BZ190 Pipe Sub-assy, Fuel Tank Inlet
2018-12 → 2023-10 ended
F850 —
77203A — Tube Sub-assy, Fuel Suction
77203-BZ100 Tube Sub-assy, Fuel Suction
2018-12 → 2023-10 ended
F850 —
77203C — Bracket, Fuel Pump
23265-BZ010 Bracket, Fuel Pump
2018-12 → 2023-10 ended
F850 —
77204A — Tube, Fuel Tank Return
77204-BZ010 Tube, Fuel Tank Return
2018-12 → 2023-10 ended
F850 —
77213B — Hose, Fuel Tank TO Filler Pipe
77213-BZ170 Hose, Fuel Tank TO Filler Pipe
2018-12 → 2023-10 ended
F850 —
77219 — Cover, Fuel Tank Filler Pipe
77219-20070 Cover, Fuel Tank Filler Pipe
2018-12 → 2023-10 ended
F850 —
77241V — Clip, Tube Joint
90044-67229 Clip, Tube Joint
2018-12 → 2023-10 ended
F850 —
77248A — Holder, Fuel Tank Filler Pipe Cover
77248-20030 Holder, Fuel Tank Filler Pipe Cover
2018-12 → 2023-10 ended
F850 —
77251B — Tube, Fuel Main
77251-BZ220 Tube, Fuel Main
2018-12 → 2023-10 ended
F850 —
77259C — Hose, Fuel
77259-BZ010 Hose, Fuel
2018-12 → 2023-10 ended
F850 —
77259G — Clip, Fuel Hose
90460-22002 Clip, Fuel Hose
2018-12 → 2023-10 ended
F850 —
77263 — Tube, Fuel Tank TO Canister, NO.3
77263-BZ300 Tube, Fuel Tank TO Canister, NO.3
2018-12 → 2023-10 ended
F850 —
77269A — Hose, Fuel Tank Breather
77269-BZ170 Hose, Fuel Tank Breather
2018-12 → 2023-10 ended
F850 —
77277R — Protector, Fuel Tank Filler Pipe
77277-BZ080 Protector, Fuel Tank Filler Pipe
2018-12 → 2023-10 ended
F850 —
77285F — Clamp, Fuel Tube, NO.1
77285-B0010 Clamp, Fuel Tube, NO.1
2018-12 → 2023-10 ended
F850 —
77286D — Clamp, Fuel Tube, NO.2
77286-B0010 Clamp, Fuel Tube, NO.2
2018-12 → 2023-10 ended
F850 —
77289B — Clamp, Fuel Tube, NO.3
96111-30440 Clamp, Fuel Tube, NO.3
2018-12 → 2023-10 ended
F850 —
77291A — Shield, Fuel Tank Filler Pipe
77291-BZ050 Shield, Fuel Tank Filler Pipe
2018-12 → 2023-10 ended
F850 —
77295F — Grommet, Fuel Hose
90041-89021 Grommet, Fuel Hose
2018-12 → 2023-10 ended
F850 —
77310A — Cap Assy, Fuel Tank
77300-52030 Cap Assy, Fuel Tank
2018-12 → 2023-10 ended
F850 —
77380 — Valve Assy, Fuel Cut Off
77380-0K010 Valve Assy, Fuel Cut Off
2018-12 → 2023-10 ended
F850 —
77506A — Clamp, Fuel Tank Band Shim
9004A-46379 Clamp, Fuel Tank Band Shim
2018-12 → 2023-10 ended
F850 —
77631A — Protector, Fuel Tank, Lower Center
77631-BZ050 Protector, Fuel Tank, Lower Center
2018-12 → 2023-10 ended
F850 —
77644 — Bolt, Fuel Tank
9004A-10186 Bolt, Fuel Tank
2018-12 → 2023-10 ended
F850 —
77651A — Cushion, Fuel Tank, NO.1
77651-BZ030 Cushion, Fuel Tank, NO.1
2018-12 → 2023-10 ended
F850 —
77652A — Cushion, Fuel Tank, NO.2
77652-BZ040 Cushion, Fuel Tank, NO.2
2018-12 → 2023-10 ended
F850 —
87268T — Protector, NO.1
87268-BZ020 Protector, NO.1
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
