Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

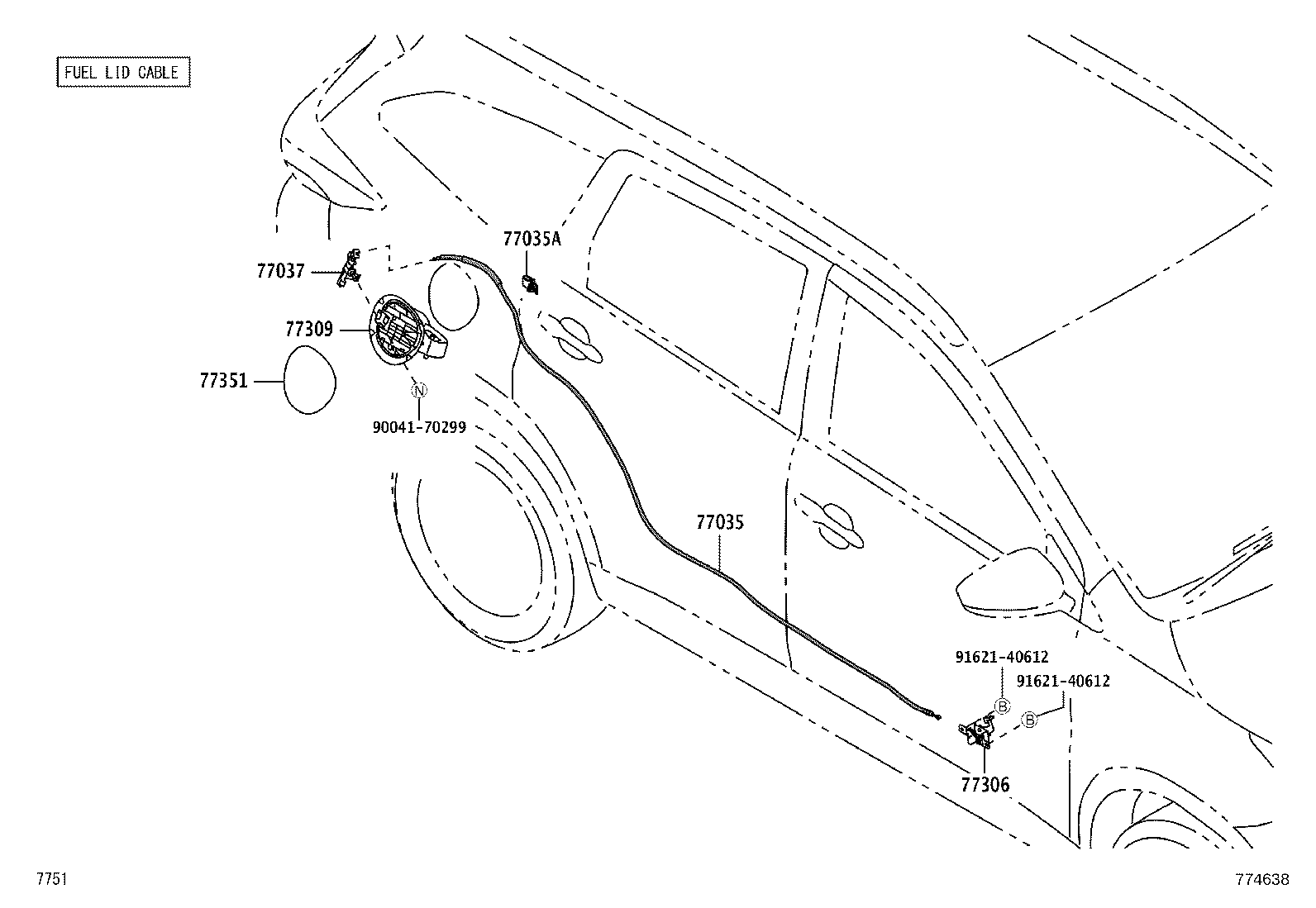

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77035-BZ280 |
Cable Sub-assy, Fuel Lid Lock Control
2018-12 → 2023-10
ended
|
F850 | — | |
| 77035A — Clamp (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-05017 |
Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2018-12 → 2023-10
ended
|
F850 | — | |
| 77037 — Lock Sub-assy, Fuel Filler Opening Lid | ||||
| 77037-BZ120 |
Lock Sub-assy, Fuel Filler Opening Lid
2018-12 → 2023-10
ended
|
F850 | — | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 77306-BZ060 |
Lever Sub-assy, Fuel Lid Lock Open
2018-12 → 2023-10
ended
|
F850 | — | |
| 77309 — Hinge Sub-assy, Fuel Inlet Box Cover | ||||
| 77308-BZ010 |
Hinge Sub-assy, Fuel Inlet Box Cover
2018-12 → 2023-10
ended
|
F850 | — | |
| 77351 — Lid, Fuel Filler Opening, Outer | ||||
| 77351-BZ220 |
Lid, Fuel Filler Opening, Outer
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
