Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

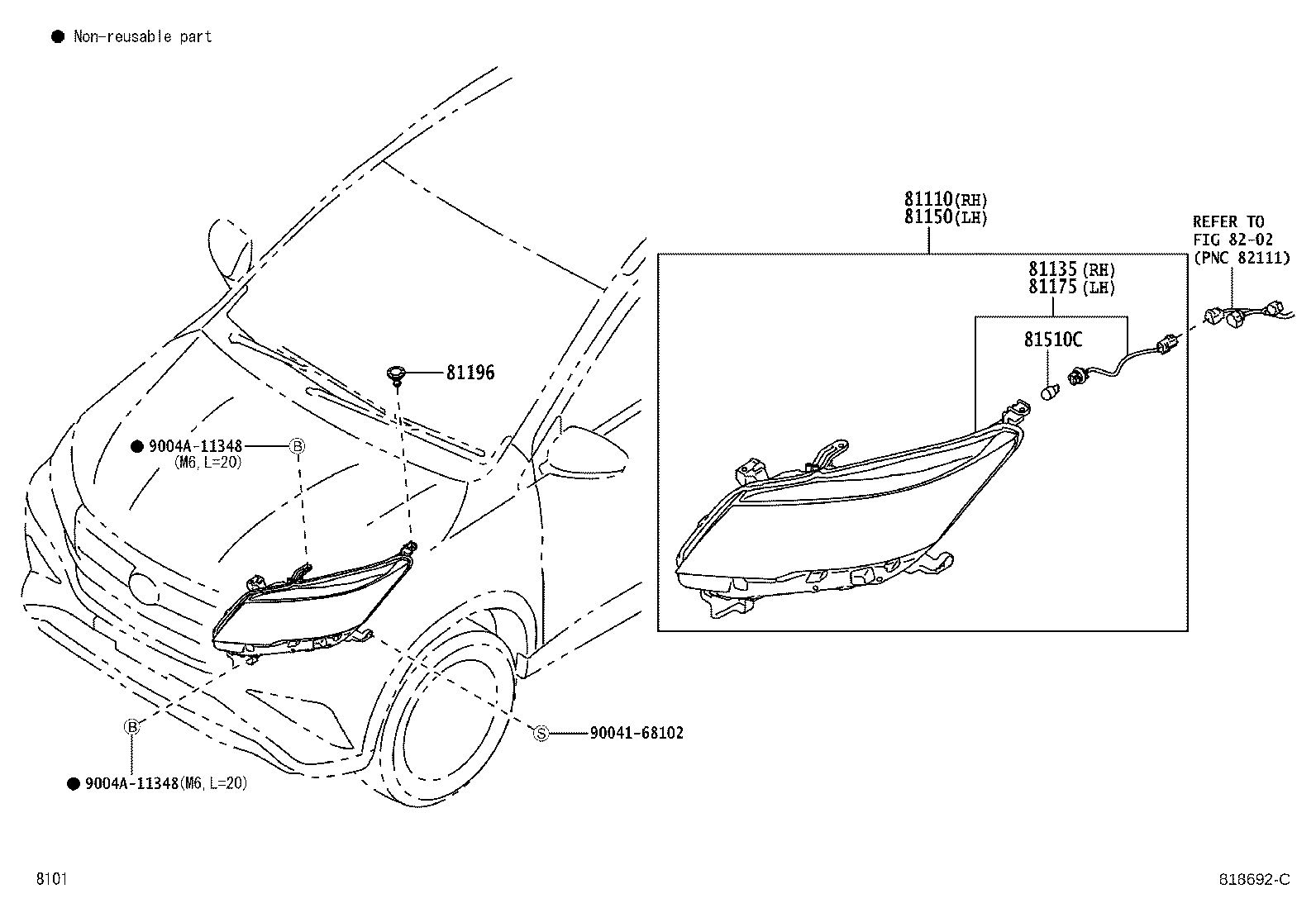

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81110 — Headlamp Assy, RH | ||||
| 81110-BZ670 |
Headlamp Assy, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 81135 — Unit Assy, Headlamp, RH | ||||
| 81130-BZ620 |
Unit Assy, Headlamp, RH
2018-12 → 2023-10
ended
|
F850 | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-BZ680 |
Headlamp Assy, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 81175 — Unit Assy, Headlamp, LH | ||||
| 81170-BZ620 |
Unit Assy, Headlamp, LH
2018-12 → 2023-10
ended
|
F850 | — | |
| 81196 — Retainer, Headlamp | ||||
| 9004A-46341 |
Retainer, Headlamp
2018-12 → 2023-10
ended
|
F850 | — | |
| 81510C — Bulb (FOR FRONT TURN SIGNAL LAMP) | ||||
| 9004A-81019 note |
Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
