Toyota Rush
2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General
Supported model
Data version 2018-11

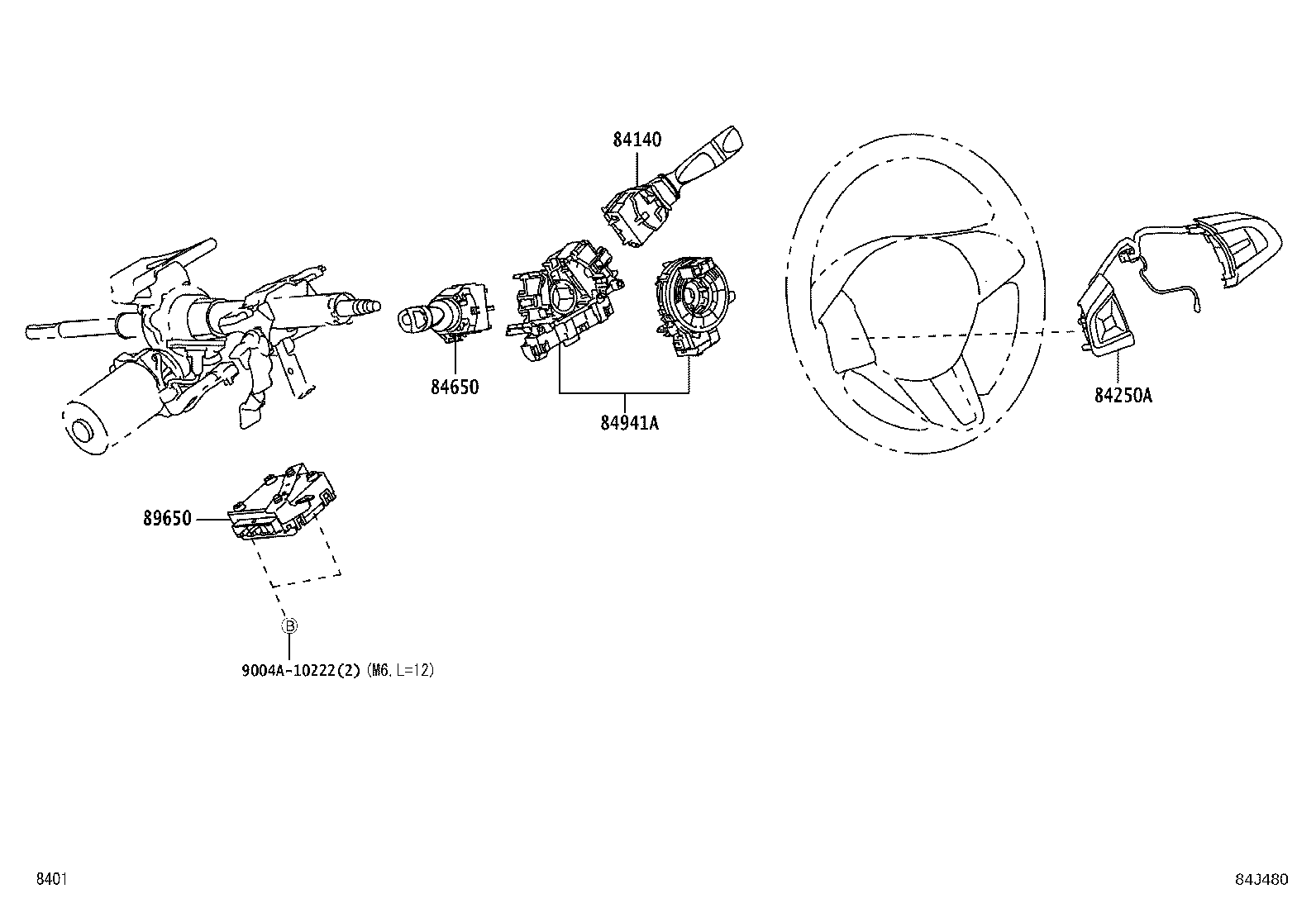

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84140 — Switch Assy, Headlamp Dimmer | ||||
| 84140-BZ170 |
Switch Assy, Headlamp Dimmer
2018-12 → 2023-10
ended
|
F850 HI | — | |
| 84140-BZ350 |
Switch Assy, Headlamp Dimmer
2018-12 → 2023-10
ended
|
F850 EXT | — | |
| 84250A — Switch Assy, Steering Pad | ||||
| 84250-BZ170-B0 note |
Switch Assy, Steering Pad
2018-12 → 2023-10
ended
|
F850 HI | — | |
| 84250-BZ180-B0 note |
Switch Assy, Steering Pad
2018-12 → 2023-10
ended
|
F850 EXT | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-BZ250 |
Switch Assy, Windshield Wiper
2018-12 → 2023-10
ended
|
F850 | — | |
| 84941A — Base, Switch | ||||
| 84941-BZ050 |
Base, Switch
2018-12 → 2023-10
ended
|
F850 | — | |
| 89650 — Computer Assy, Power Steering | ||||
| 89650-BZ140 note |
Computer Assy, Power Steering
2018-12 → 2023-10
ended
|
F850 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
