Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

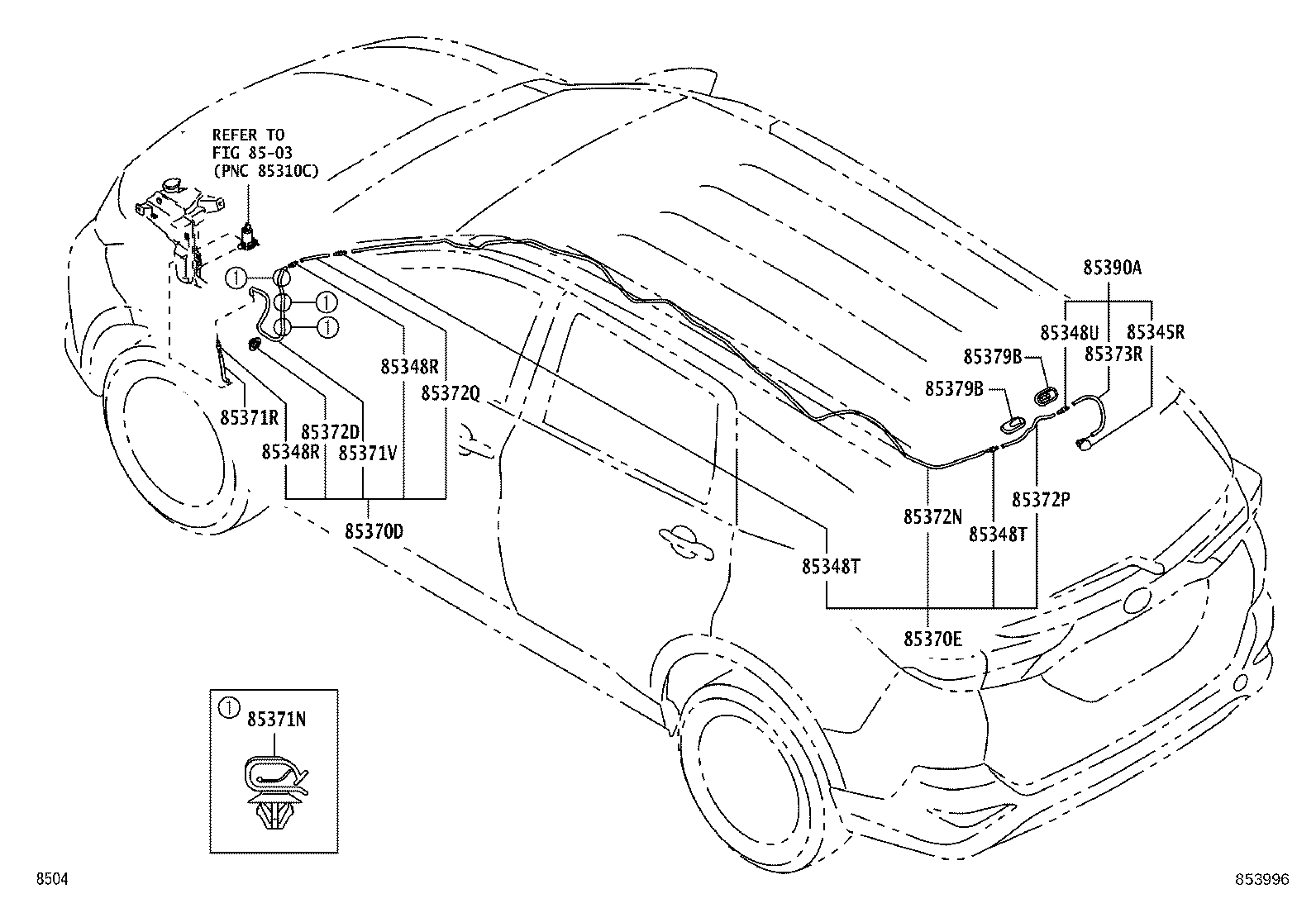

Exploded illustration 853996 85345R — NOZZLE, REAR WASHER (1 parts) 85373R — HOSE, REAR WASHER (FROM JOINT TO NOZZLE) (2 parts) 85348U — JOINT, REAR WASHER HOSE, NO.3 (1 parts) 85390A — NOZZLE & HOSE ASSY, RR WASHER (1 parts) 85371N — CLAMP, REAR WASHER HOSE (1 parts) 85379B — GROMMET, WASHER, A (1 parts) 85379B — GROMMET, WASHER, A (1 parts) 85372P — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 (1 parts) 85348T — JOINT, REAR WASHER HOSE, NO.2 (1 parts) 85348T — JOINT, REAR WASHER HOSE, NO.2 (1 parts) 85372N — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 (1 parts) 85370E — HOSE ASSY, REAR WASHER, NO.2 (1 parts) 85348R — JOINT, REAR WASHER HOSE, NO.1 (1 parts) 85372Q — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 (1 parts) 85371V — HOSE, REAR WASHER (FROM JOINT TO JOINT) (1 parts) 85348R — JOINT, REAR WASHER HOSE, NO.1 (1 parts) 85371R — HOSE, REAR WASHER (FROM MOTOR TO JOINT) (1 parts) 85372D — GROMMET, REAR WASHER HOSE (1 parts) 8503 — not listed in this catalogue 85370D — HOSE ASSY, REAR WASHER, NO.1 (1 parts)
853996 · 19 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
85345R — Nozzle, Rear Washer
85391-BZ120 Nozzle, Rear Washer
2018-12 → 2023-10 ended
F850 —
85348R — Joint, Rear Washer Hose, NO.1
85317-BZ080 Joint, Rear Washer Hose, NO.1
2018-12 → 2023-10 ended
F850 —
85348T — Joint, Rear Washer Hose, NO.2
85317-BZ080 Joint, Rear Washer Hose, NO.2
2018-12 → 2023-10 ended
F850 —
85348U — Joint, Rear Washer Hose, NO.3
85317-BZ080 Joint, Rear Washer Hose, NO.3
2018-12 → 2023-10 ended
F850 —
85370D — Hose Assy, Rear Washer, NO.1
85370-BZB20 Hose Assy, Rear Washer, NO.1
2018-12 → 2023-10 ended
F850 —
85370E — Hose Assy, Rear Washer, NO.2
85370-BZB30 Hose Assy, Rear Washer, NO.2
2018-12 → 2023-10 ended
F850 —
85371N — Clamp, Rear Washer Hose
82711-B2010 Clamp, Rear Washer Hose
2018-12 → 2023-10 ended
F850 —
85371R — Hose, Rear Washer (FROM MOTOR TO JOINT)
85374-BZA60 note Hose, Rear Washer (FROM MOTOR TO JOINT)
2018-12 → 2023-10 ended
F850 —
85371V — Hose, Rear Washer (FROM JOINT TO JOINT)
85374-BZE40 note Hose, Rear Washer (FROM JOINT TO JOINT)
2018-12 → 2023-10 ended
F850 —
85372D — Grommet, Rear Washer Hose
90044-80126 Grommet, Rear Washer Hose
2018-12 → 2023-10 ended
F850 —
85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85374-BZE60 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2018-12 → 2023-10 ended
F850 —
85372P — Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85374-BZF60 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2018-12 → 2023-10 ended
F850 —
85372Q — Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85374-BZE50 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2018-12 → 2023-10 ended
F850 —
85373R — Hose, Rear Washer (FROM JOINT TO NOZZLE)
85374-BZ370 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2019-08 → 2023-10 ended
F850 —
85374-BZE80 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2018-12 → 2019-07 ended
F850 —
85379B — Grommet, Washer, A
85373-BZ070 Grommet, Washer, A
2018-12 → 2023-10 ended
F850 —
85390A — Nozzle & Hose Assy, RR Washer
85390-BZ250 Nozzle & Hose Assy, RR Washer
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
