Toyota Rush

2018-12 → 2023-10 · chassis F850 · catalogue 617310 · General

Supported model Data version 2018-11

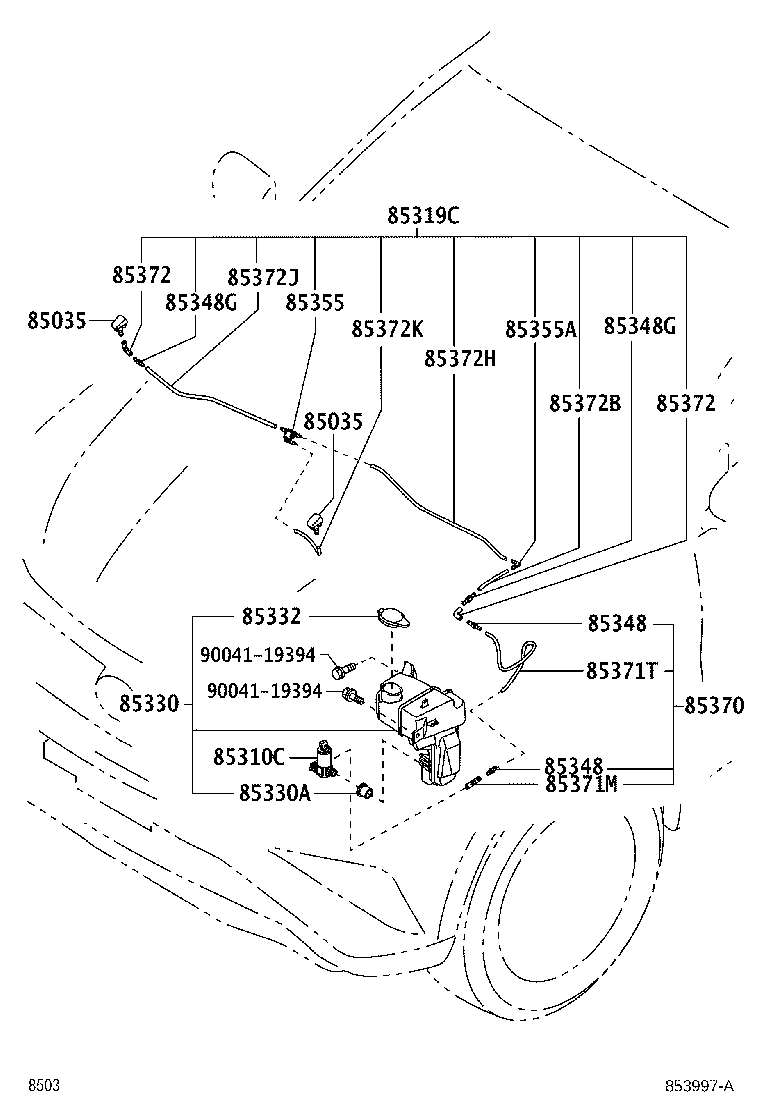

853997A · 22 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
85035 — Nozzle Sub-assy, Washer
85381-BZ160 Nozzle Sub-assy, Washer
2018-12 → 2023-10 ended
F850 —
85310C — Motor & Pump Assy, Washer
85330-BZ180 Motor & Pump Assy, Washer
2018-12 → 2023-10 ended
F850 —
85319C — Hose, Washer
85370-BZB00 Hose, Washer
2018-12 → 2023-10 ended
F850 —
85330 — Jar Assy, Windshield Washer
85315-BZ160 Jar Assy, Windshield Washer
2018-12 → 2023-10 ended
F850 —
85330A — Bush, Windshield Washer Jar
90044-80454 Bush, Windshield Washer Jar
2018-12 → 2023-10 ended
F850 —
85332 — Cap, Windshield Washer Jar
85332-BZ010 Cap, Windshield Washer Jar
2018-12 → 2023-10 ended
F850 —
85348 — Joint, Windshield Washer Hose, NO.1
85317-BZ080 Joint, Windshield Washer Hose, NO.1
2018-12 → 2023-10 ended
F850 —
85348G — Joint, Windshield Washer Hose, NO.2
85317-BZ080 Joint, Windshield Washer Hose, NO.2
2018-12 → 2023-10 ended
F850 —
85355 — Valve, Windshield Washer Hose
85376-B1010 Valve, Windshield Washer Hose
2018-12 → 2023-10 ended
F850 —
85355A — Joint, Windshield Washer Elbow
85376-BZ020 Joint, Windshield Washer Elbow
2018-12 → 2023-10 ended
F850 —
85370 — Hose Assy, Windshield Washer
85370-BZ890 Hose Assy, Windshield Washer
2018-12 → 2023-10 ended
F850 —
85371M — Hose, Windshield Washer (FROM JOINT TO TANK)
85355-87701 Hose, Windshield Washer (FROM JOINT TO TANK)
2018-12 → 2023-10 ended
F850 —
85371T — Hose, Windshield Washer (FROM JOINT TO JOINT)
85374-BZ880 note Hose, Windshield Washer (FROM JOINT TO JOINT)
2018-12 → 2023-10 ended
F850 —
85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85355-87701 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2018-12 → 2023-10 ended
F850 —
85372B — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
85374-BZE90 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2018-12 → 2023-10 ended
F850 —
85372H — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
85374-BZB50 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3
2018-12 → 2023-10 ended
F850 —
85372J — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
85374-BZB00 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.4
2018-12 → 2023-10 ended
F850 —
85372K — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
85374-BZF00 note Hose, Windshield Washer (FROM JOINT TO JOINT), NO.5
2018-12 → 2023-10 ended
F850 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
